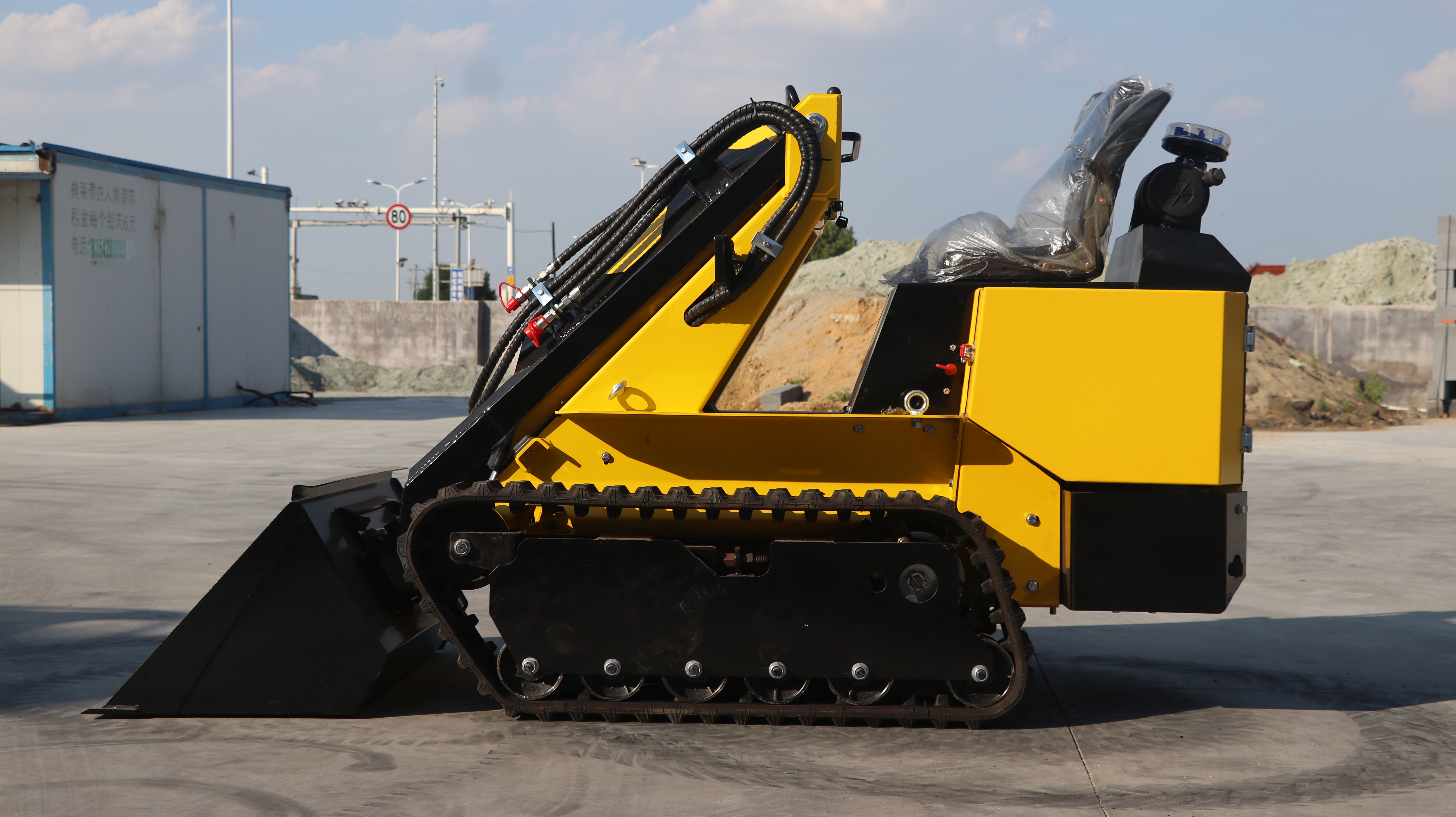

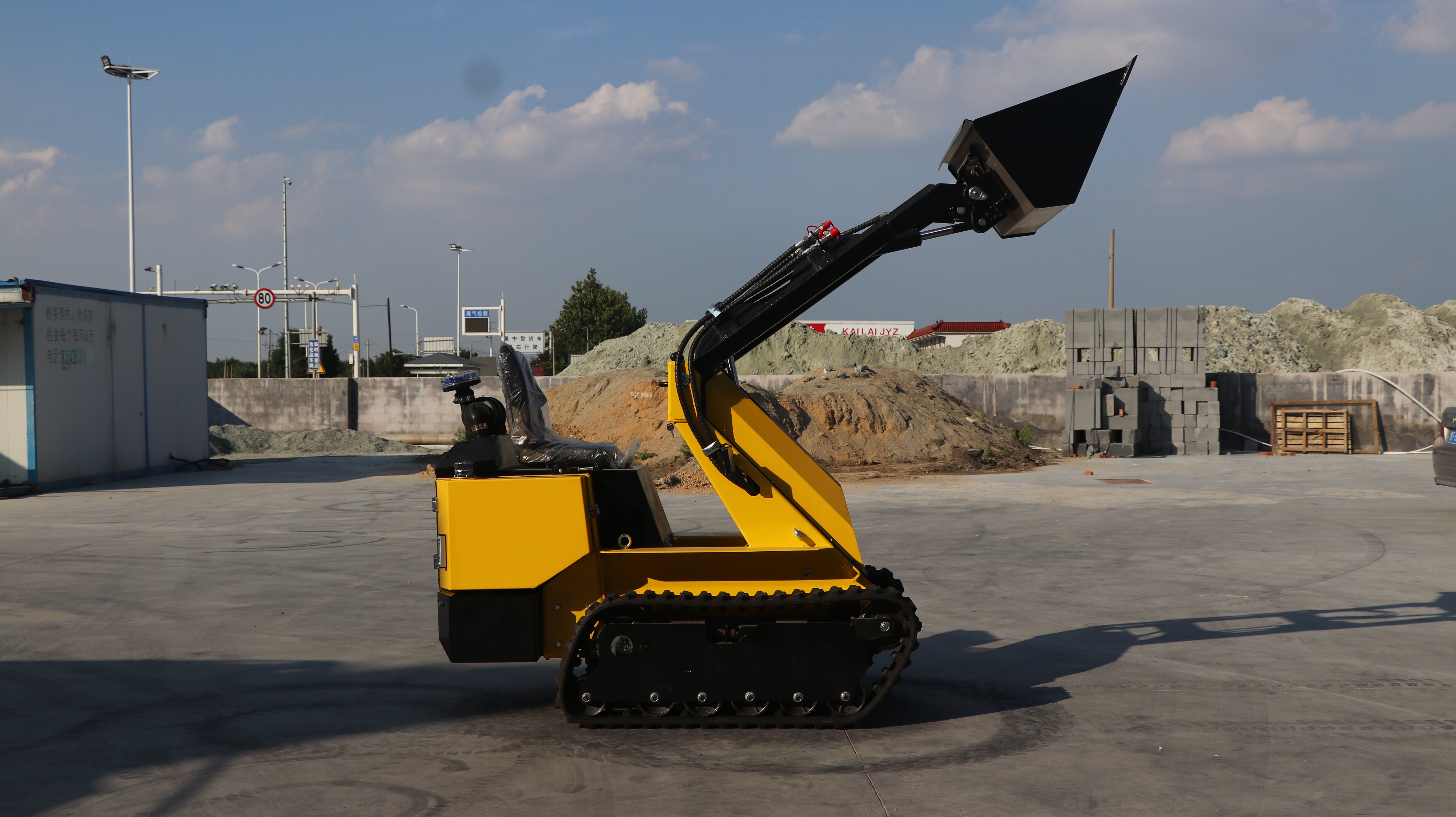

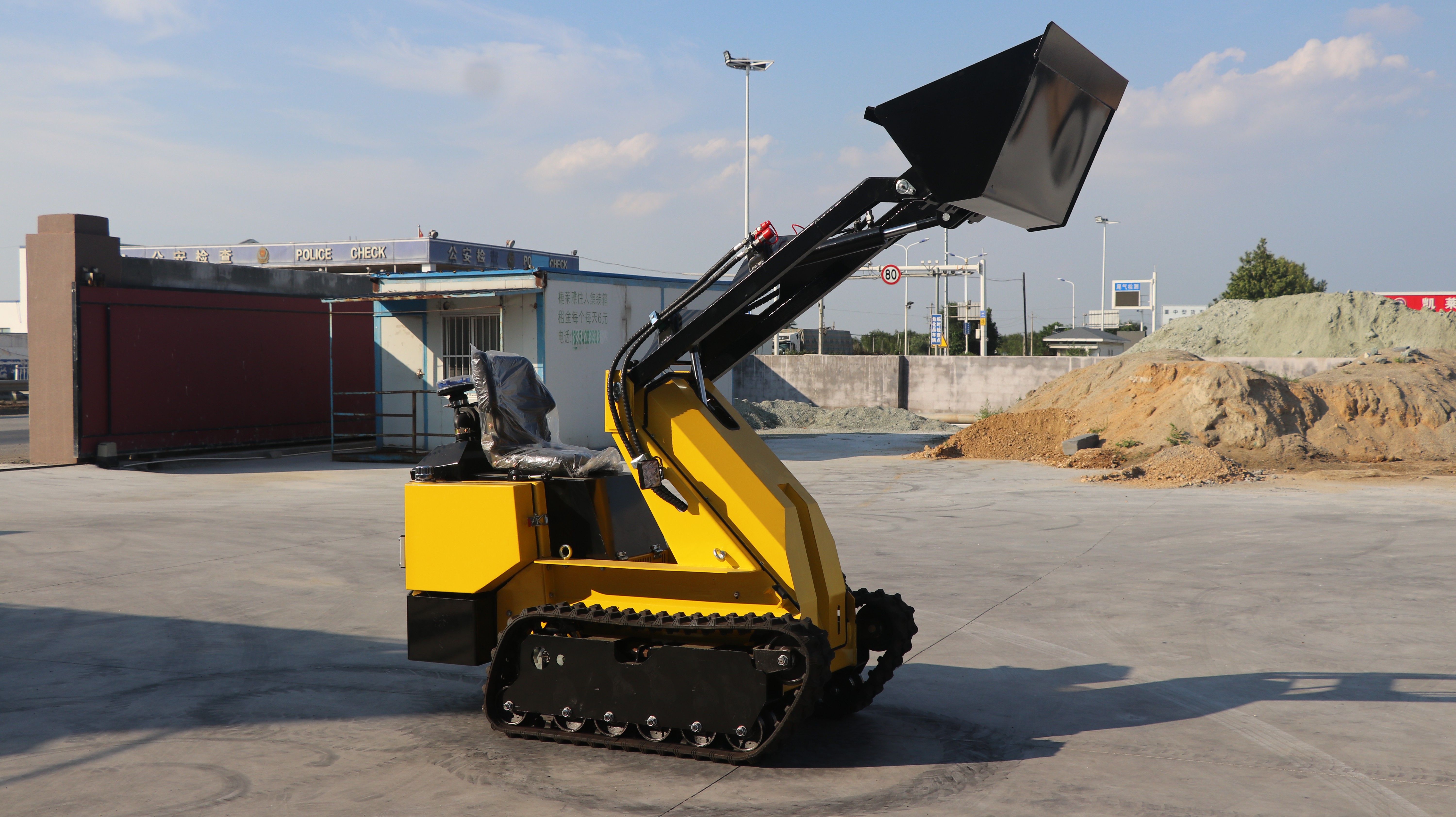

SG-S500 Tracked Skid Steer Loader

SG-S500 Tracked Skid Steer Loader

Product Model:SG-S500

Parameter Specifications

SG-S500 Tracked Skid Steer Loader
Engine ModelDiesel: Laidong Three-Cylinder (Euro V)
Rated Speed2200 rpm
Hydraulic System Power20 MPa
Hydraulic Oil Capacity40 L
Hydraulic SystemThree Circuits (Three Pumps)
Transmission SystemHydrostatic
Travel Speed0–10 km/h
DriveTwo-Wheel Drive
Operating SystemHydraulic Motor
Rated Load500 kg
Displacement/
Minimum Ground Clearance225 mm
Lifting Height2350 mm
Machine Weight1220 kg
Fuel Tank20 L
Battery Brand/CapacityCamel / Camel, 80 Ah
Standard Bucket (Attachment)1100 × 420 × 600 mm, Standard Configuration
Tire ModelWidth: 200 mm; 45 Links (72 mm/link)
Overall Dimensions: Length × Width × Height1.96 × 1.10 × 1.40 m
Rated Power29 kW

Main Functions
