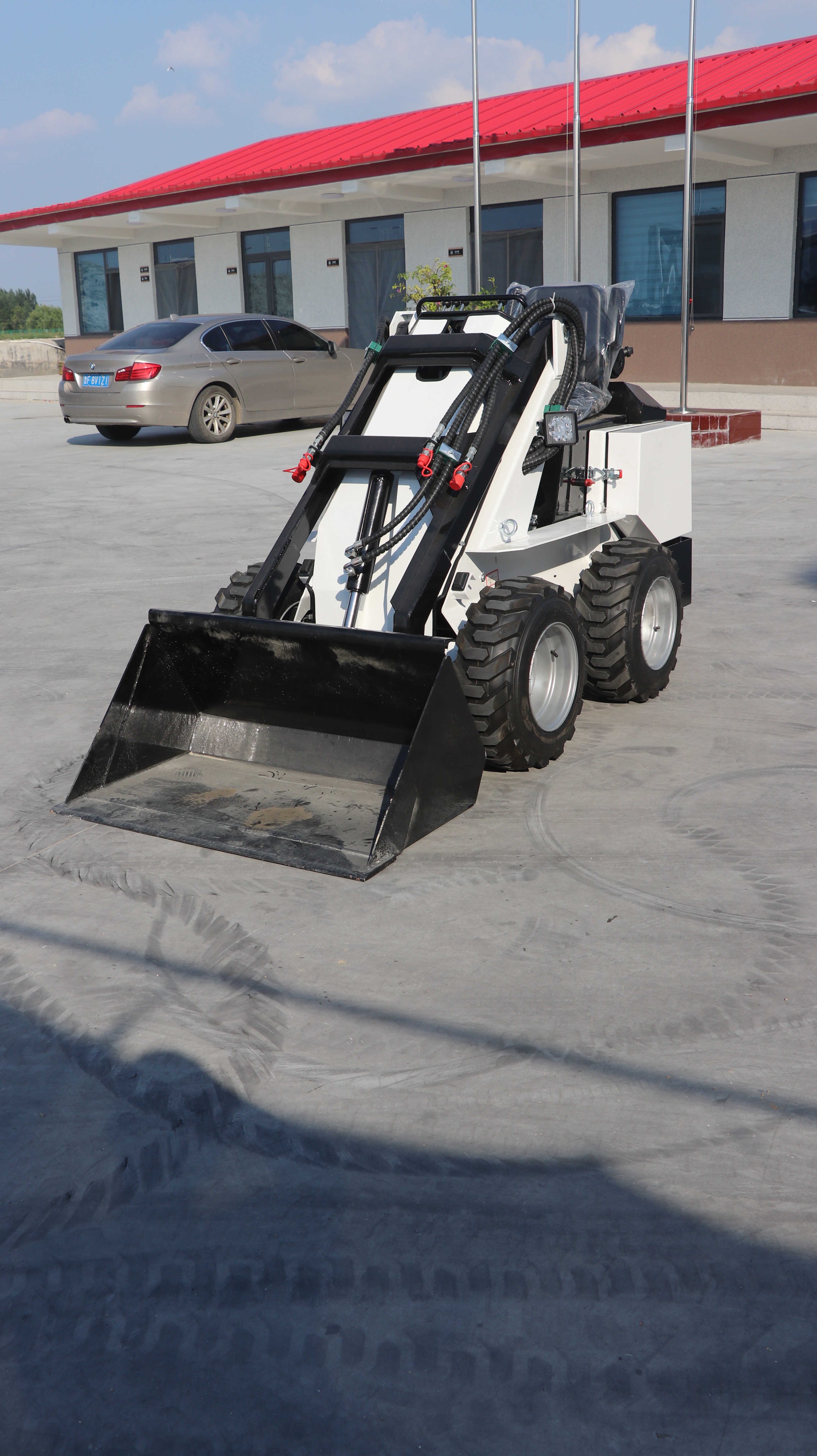

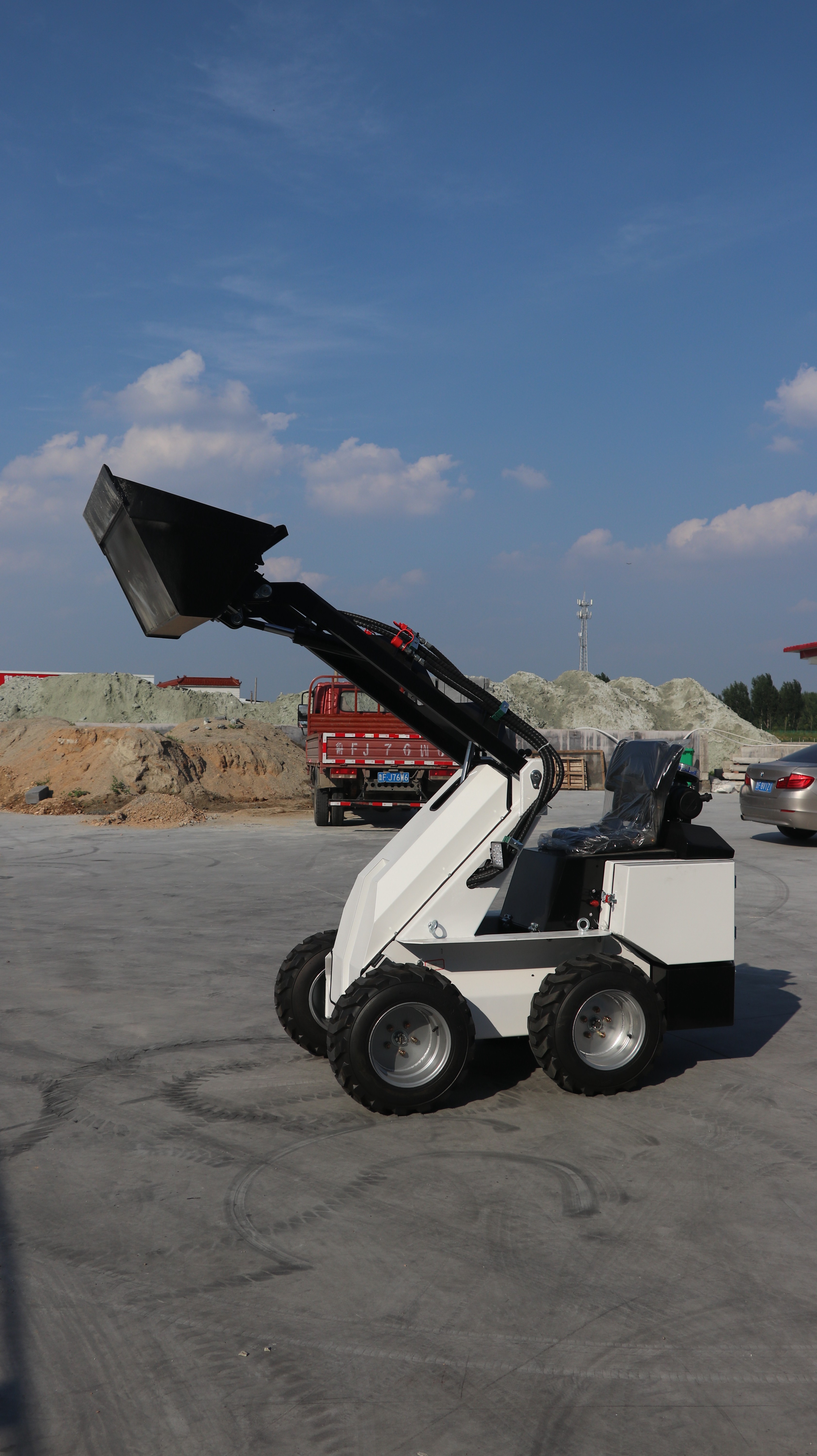

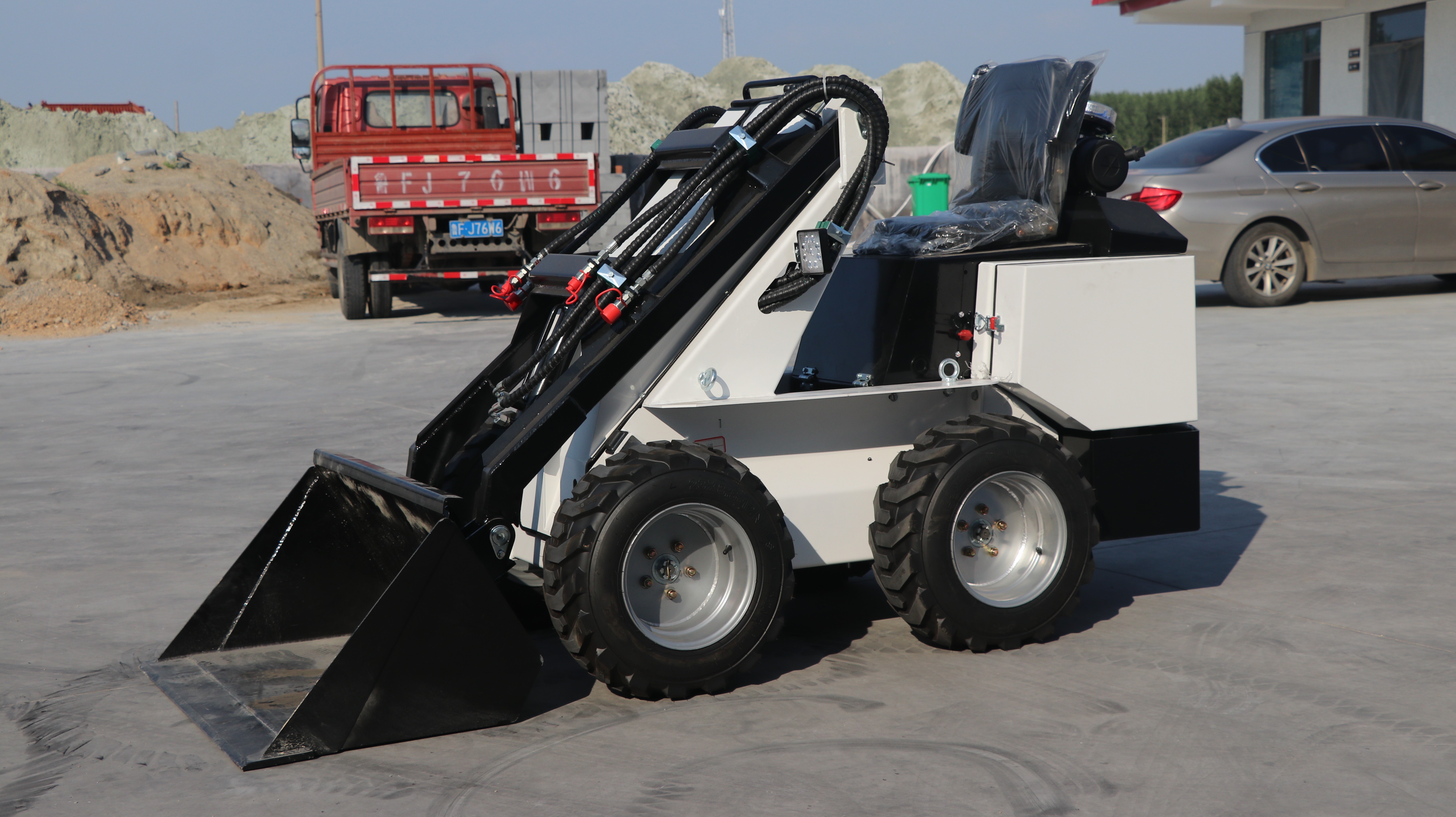

SG-S500 Wheeled Skid-Steer Loader Specifications

  • SG-S500 Wheeled Skid-Steer Loader Specifications
  • SG-S500 Wheeled Skid-Steer Loader Specifications
  • SG-S500 Wheeled Skid-Steer Loader Specifications
  • SG-S500 Wheeled Skid-Steer Loader Specifications

SG-S500 Wheeled Skid-Steer Loader Specifications

Product Model:SG-S500

Online Consultation
Related Products

Parameter Specifications

SG-S500 Wheeled Skid-Steer Loader Specifications

Specifications
Engine ModelDiesel: Laidong three-cylinder (Euro V)
Rated Speed2200 rpm
Minimum Ground Clearance225 mm
Hydraulic System Pressure20 MPa
Lifting Height2000 mm
Hydraulic Oil Capacity40 L
Operating Weight1020 kg
Hydraulic SystemThree Circuits (Three Pumps)
Fuel Tank20 L
Transmission SystemStatic Hydraulic Transmission
Battery Brand/CapacityCamel / Camel, 80 Ah
Travel Speed0–10 km/h
Standard Bucket (Attachment)1100 × 420 × 600 mm; standard configuration; more than 30 attachments can be customized
DriveFour-Wheel Drive
Tire Model (Standard)23 × 8.5–12
Tire Model (Optional)20 × 8.0–10; 6.5–10 solid tires
Travel SystemHydraulic Motor
Machine Dimensions: Length × Width × Height1.96 × 1.10 × 1.40 m
Rated Load500 kg
Rated Power29 kW


Main Functions
