SG-S300 Wheeled Skid Steer Loader

  • SG-S300 Wheeled Skid Steer Loader
  • SG-S300 Wheeled Skid Steer Loader
  • SG-S300 Wheeled Skid Steer Loader
  • SG-S300 Wheeled Skid Steer Loader

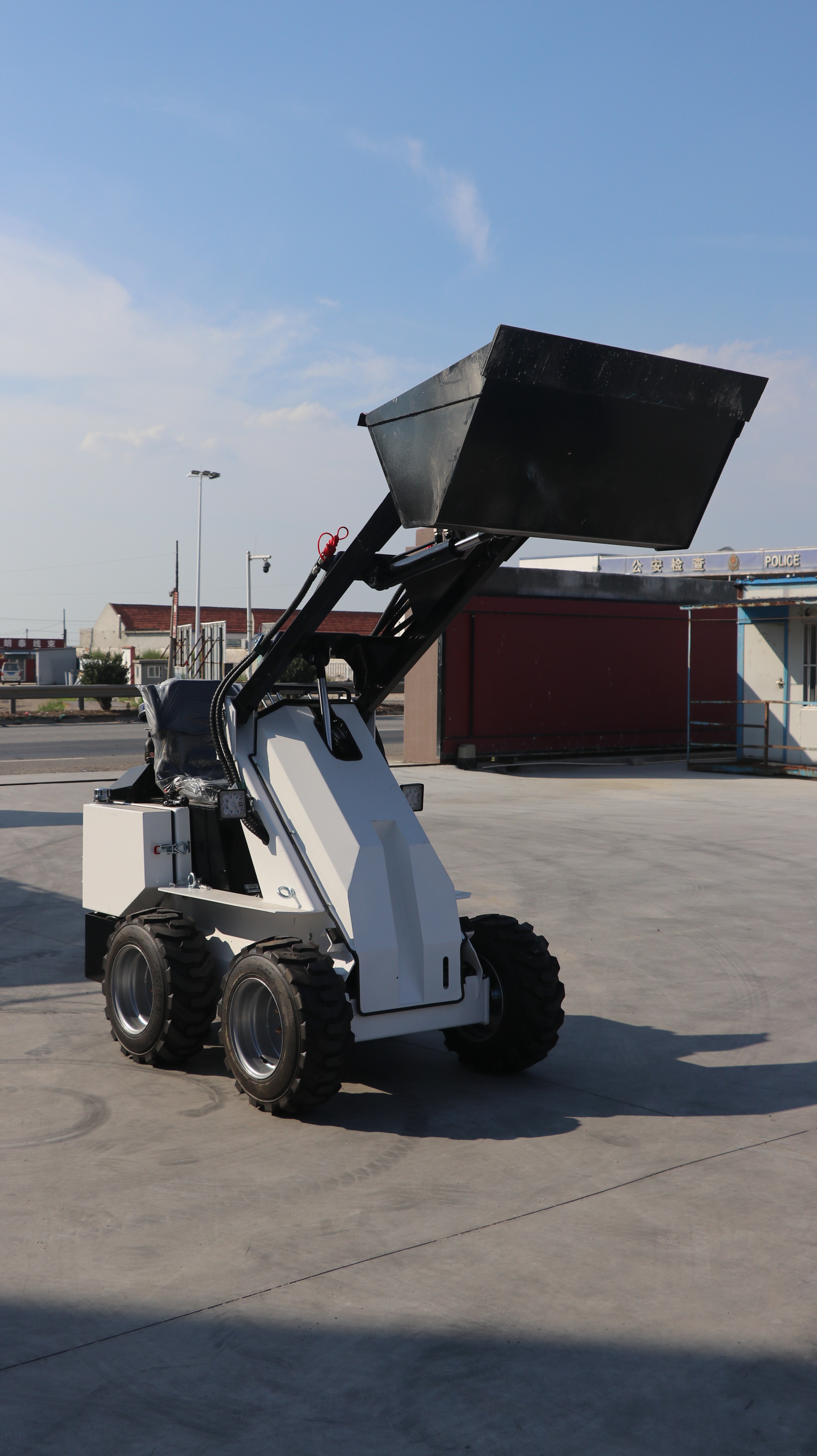

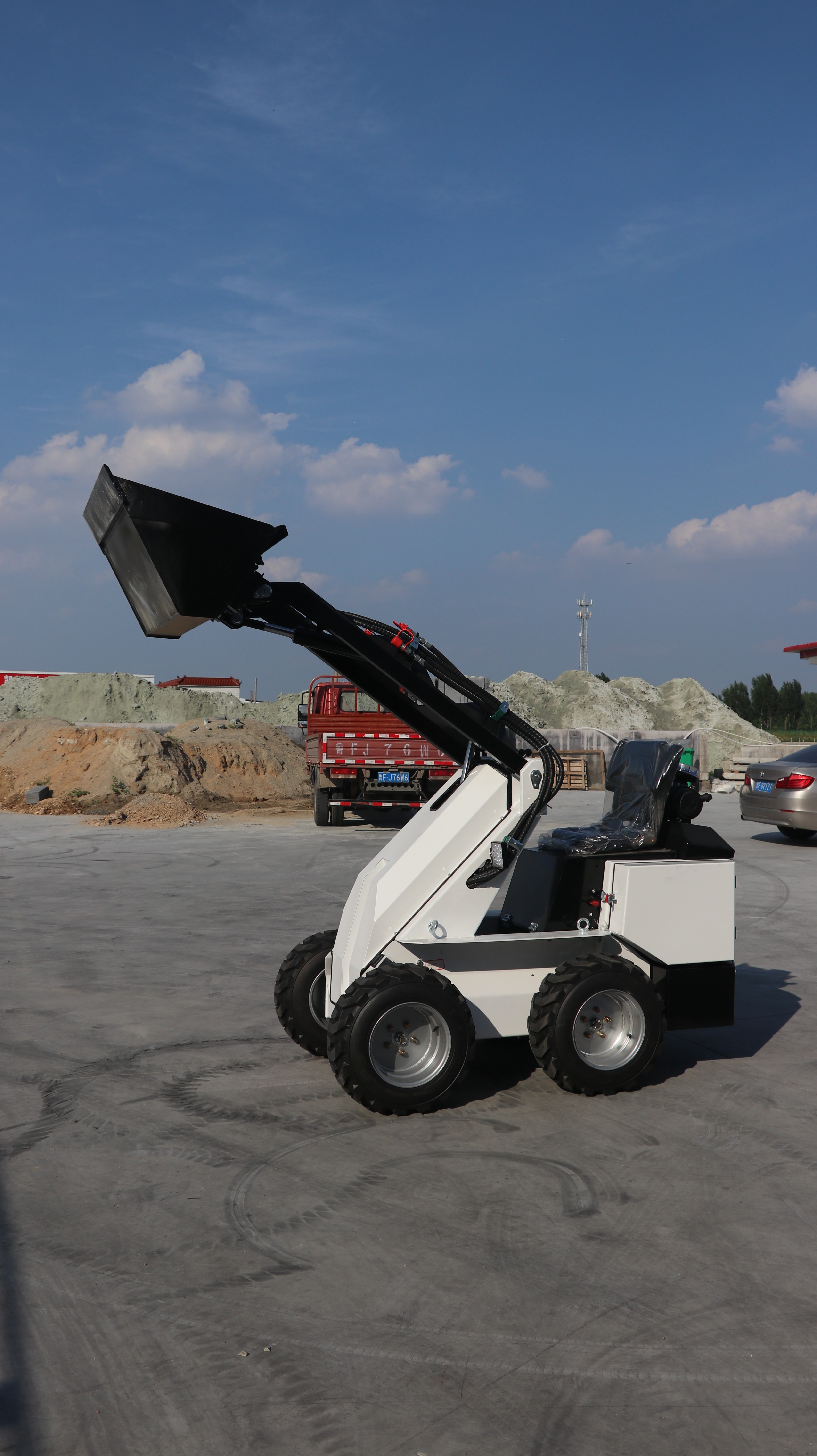

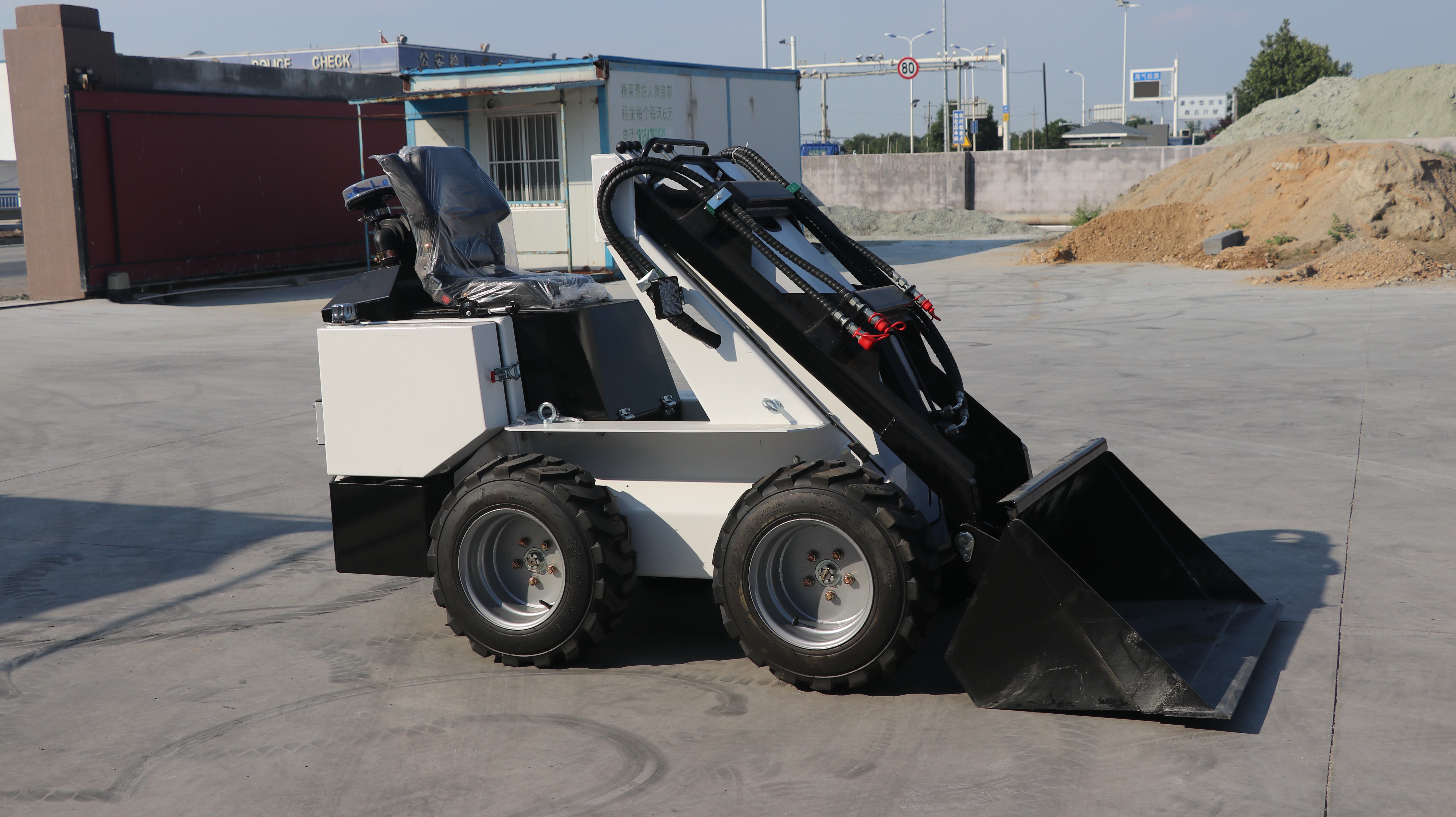

SG-S300 Wheeled Skid Steer Loader

Product Model:SG-S300

Online Consultation
Related Products

Parameter Specifications

SG-S300 Wheeled Skid Steer Loader Specifications
Engine ModelGasoline: Runtong R740-1
Displacement739 cc
Rated Speed3600 r/min
Minimum Ground Clearance225 mm
Hydraulic System Pressure20 MPa
Lifting Height2000 mm
Hydraulic Oil Capacity40 L
Machine Weight920 kg
Hydraulic SystemThree Circuits (Three Pumps)
Fuel Tank20 L
Transmission SystemStatic Hydraulic Transmission
Battery Brand/CapacityCamel / Camel, 60 Ah
Travel Speed0–10 km/h
Standard Bucket (Attachment)900 × 420 × 600 mm; Standard Configuration; Over 30 Attachments Available for Customization
DriveFour-Wheel Drive
Tire Model6.5–10 Solid Tires
Operating SystemHydraulic Motor
Overall Dimensions: Length × Width × Height1.96 × 0.85 × 1.40 m
Rated Load300 kg
Rated Power15 kW
