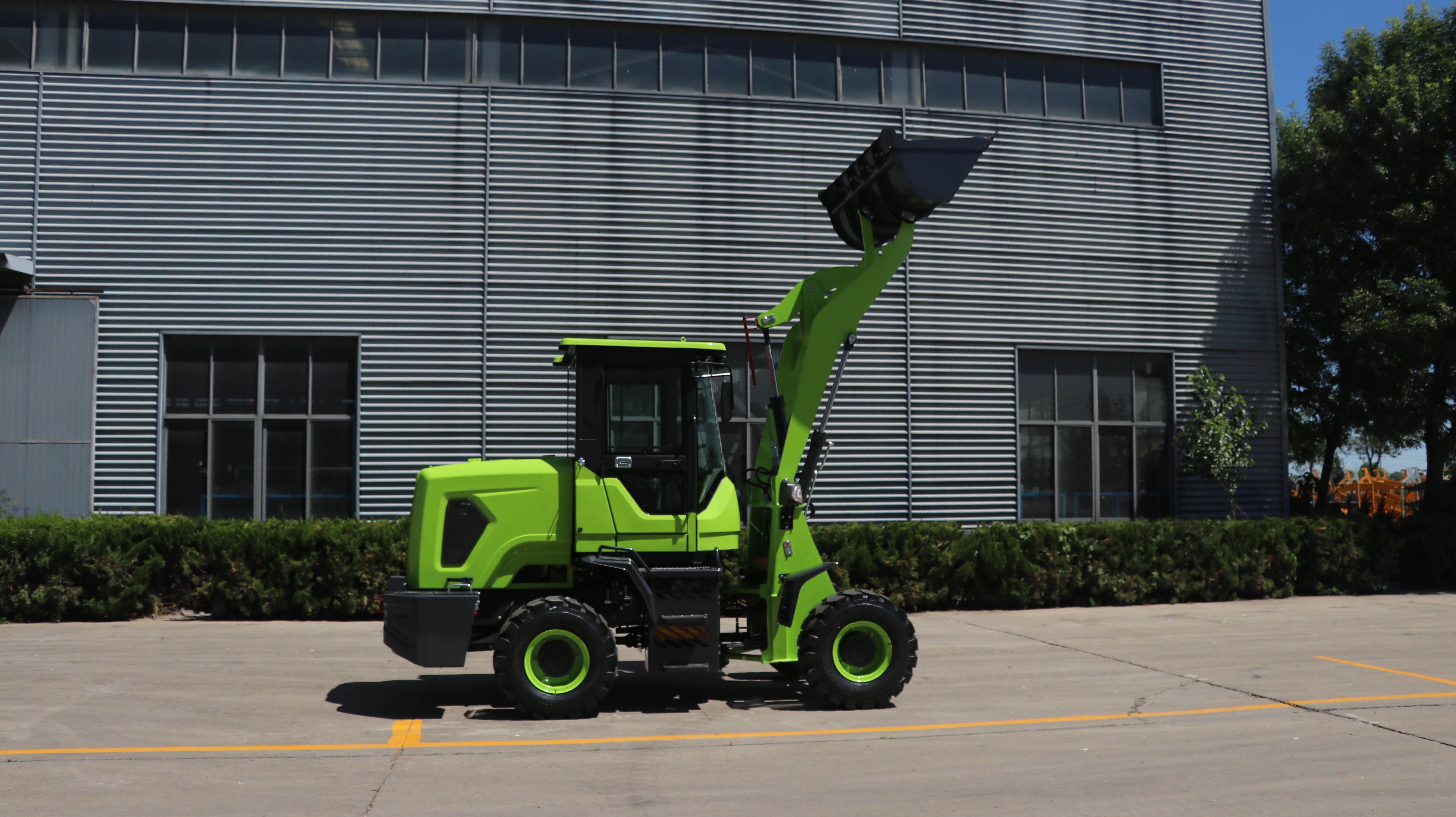

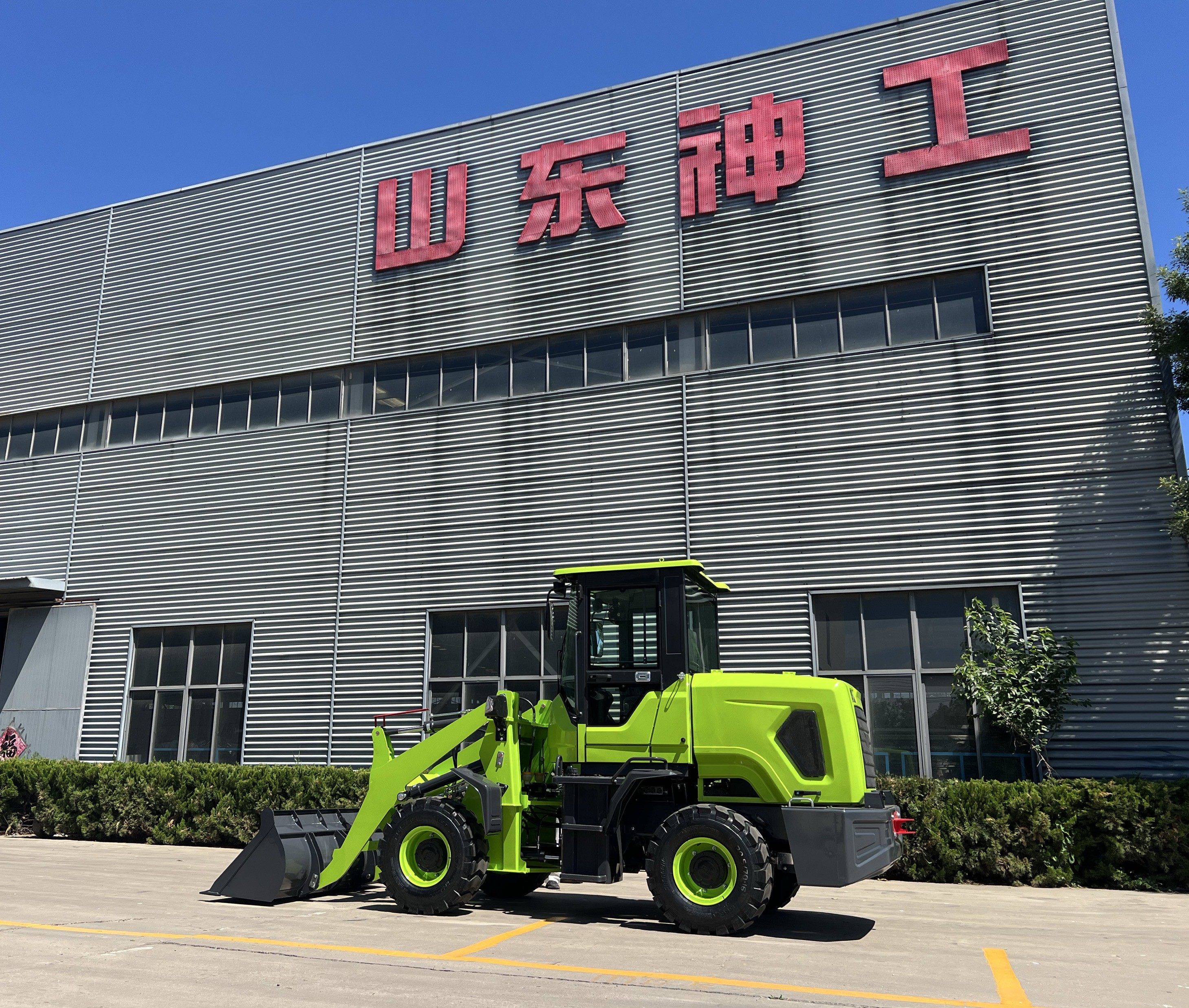

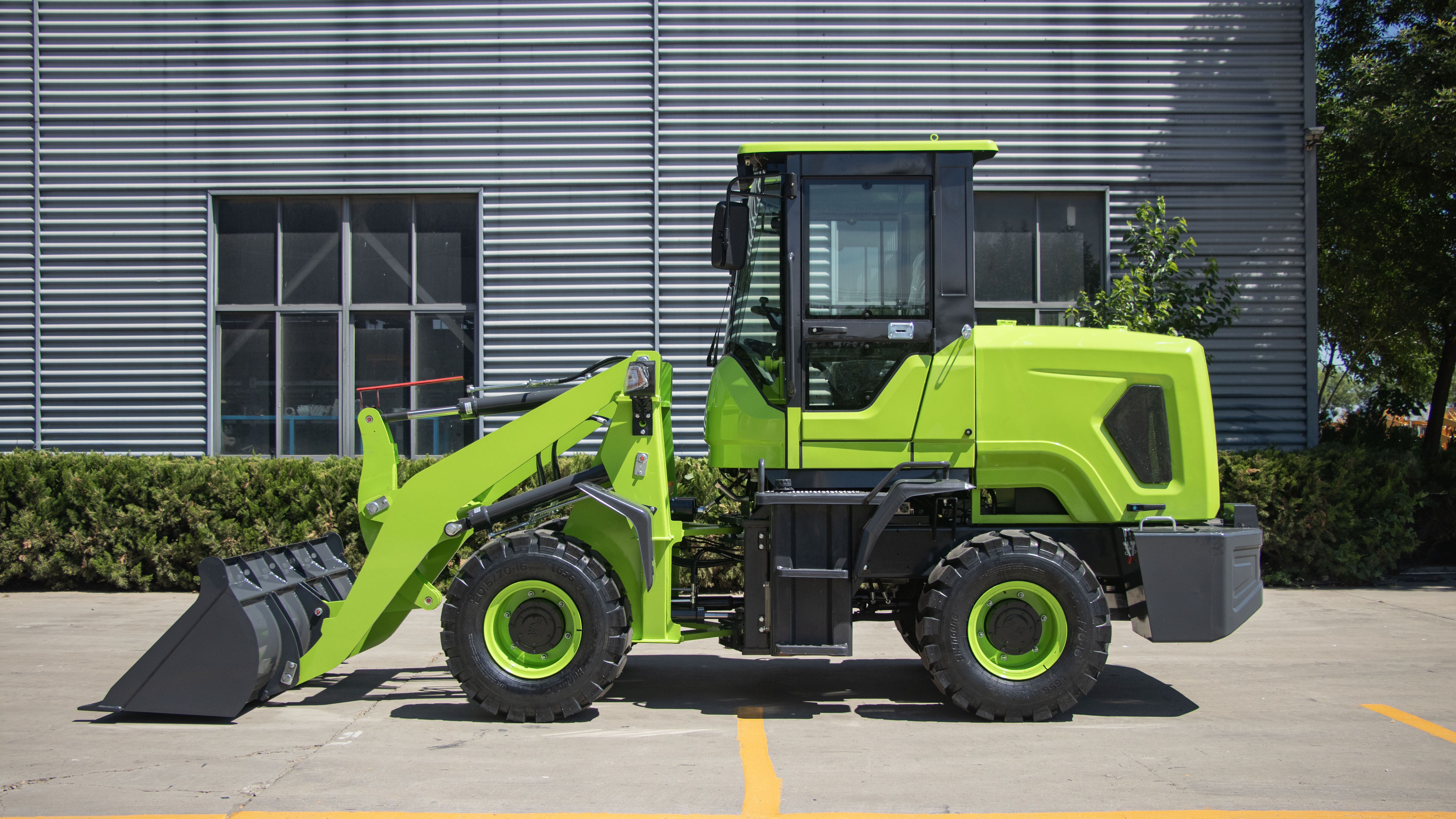

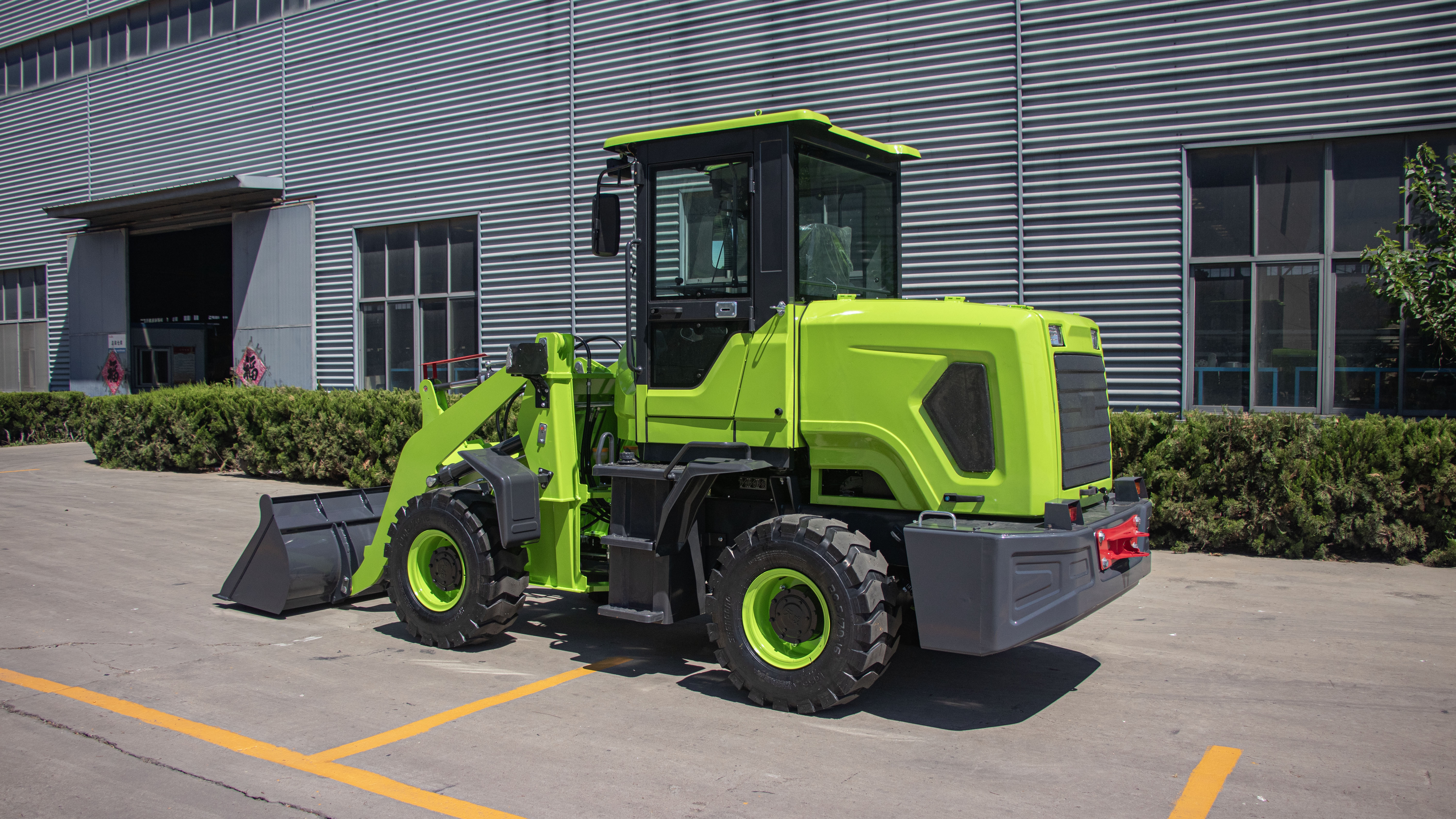

FG932E

FG932E

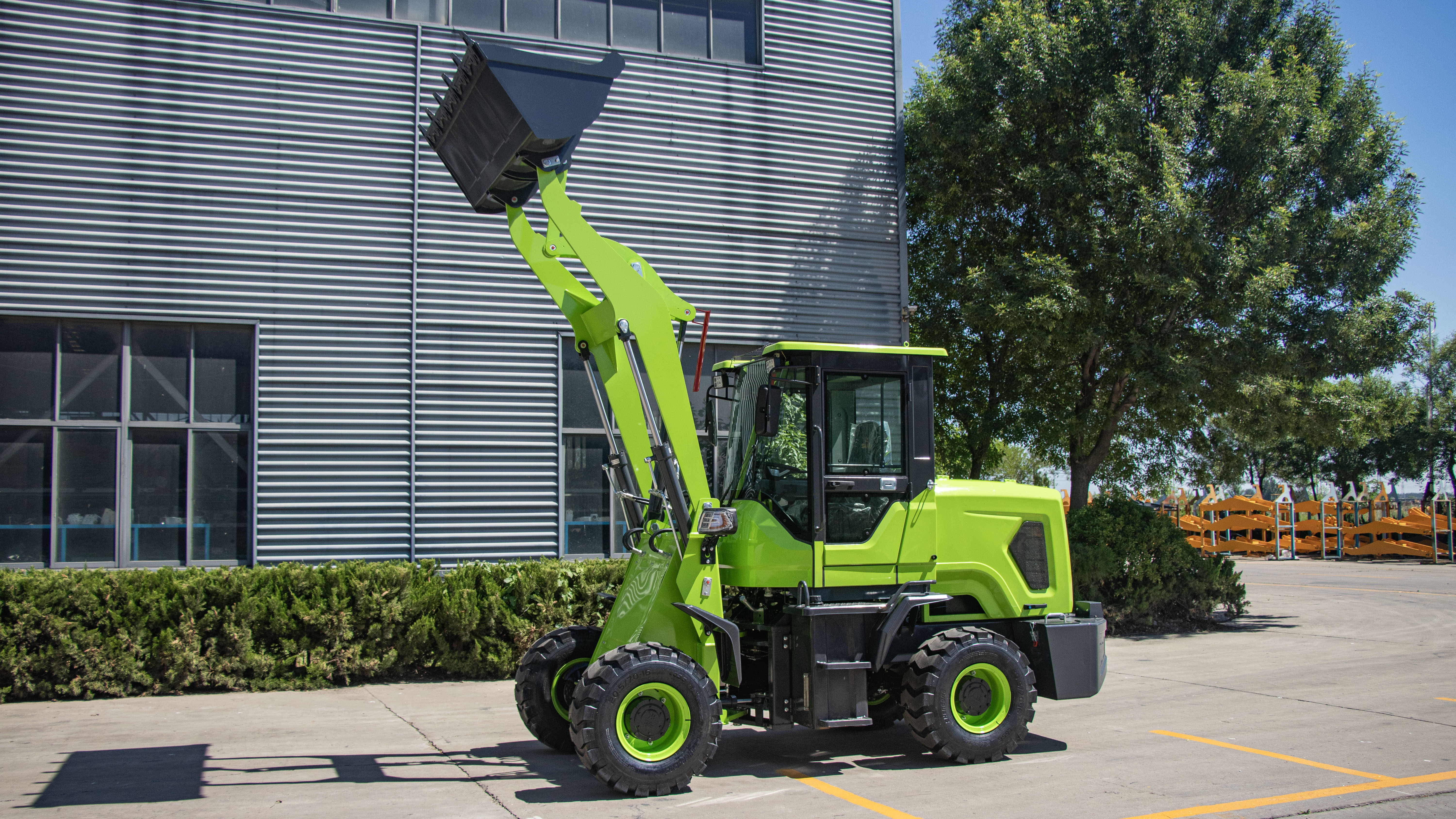

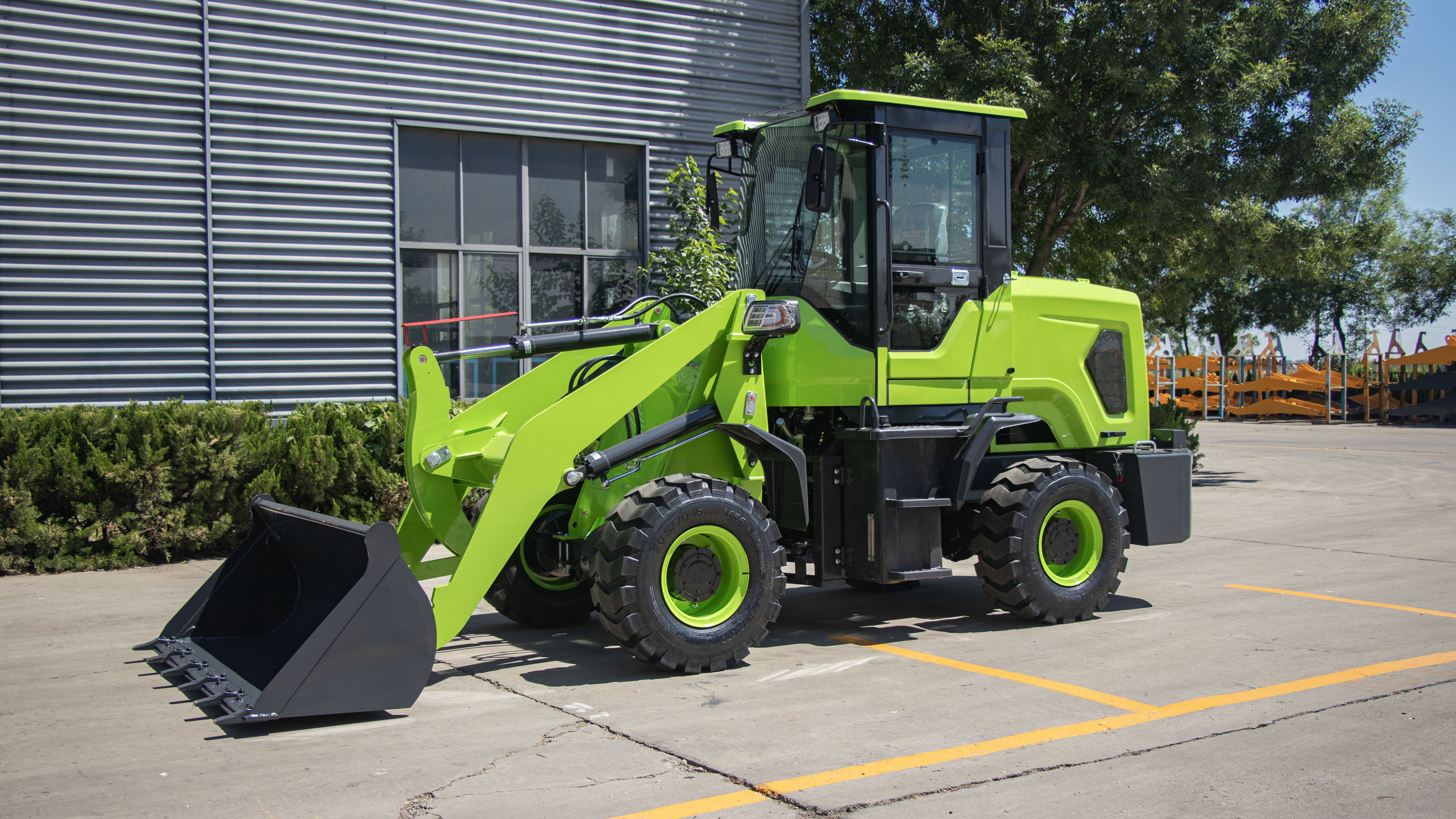

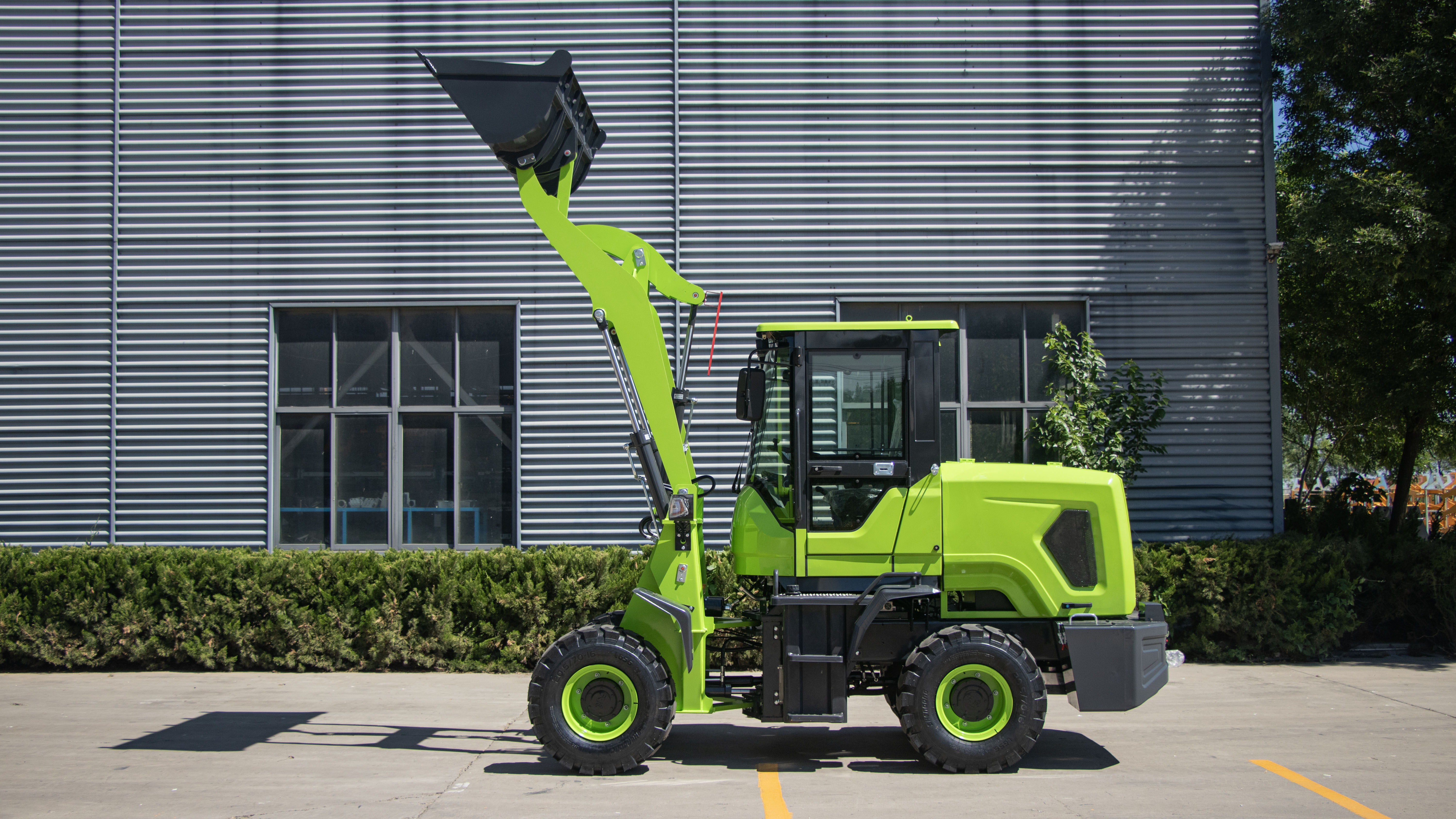

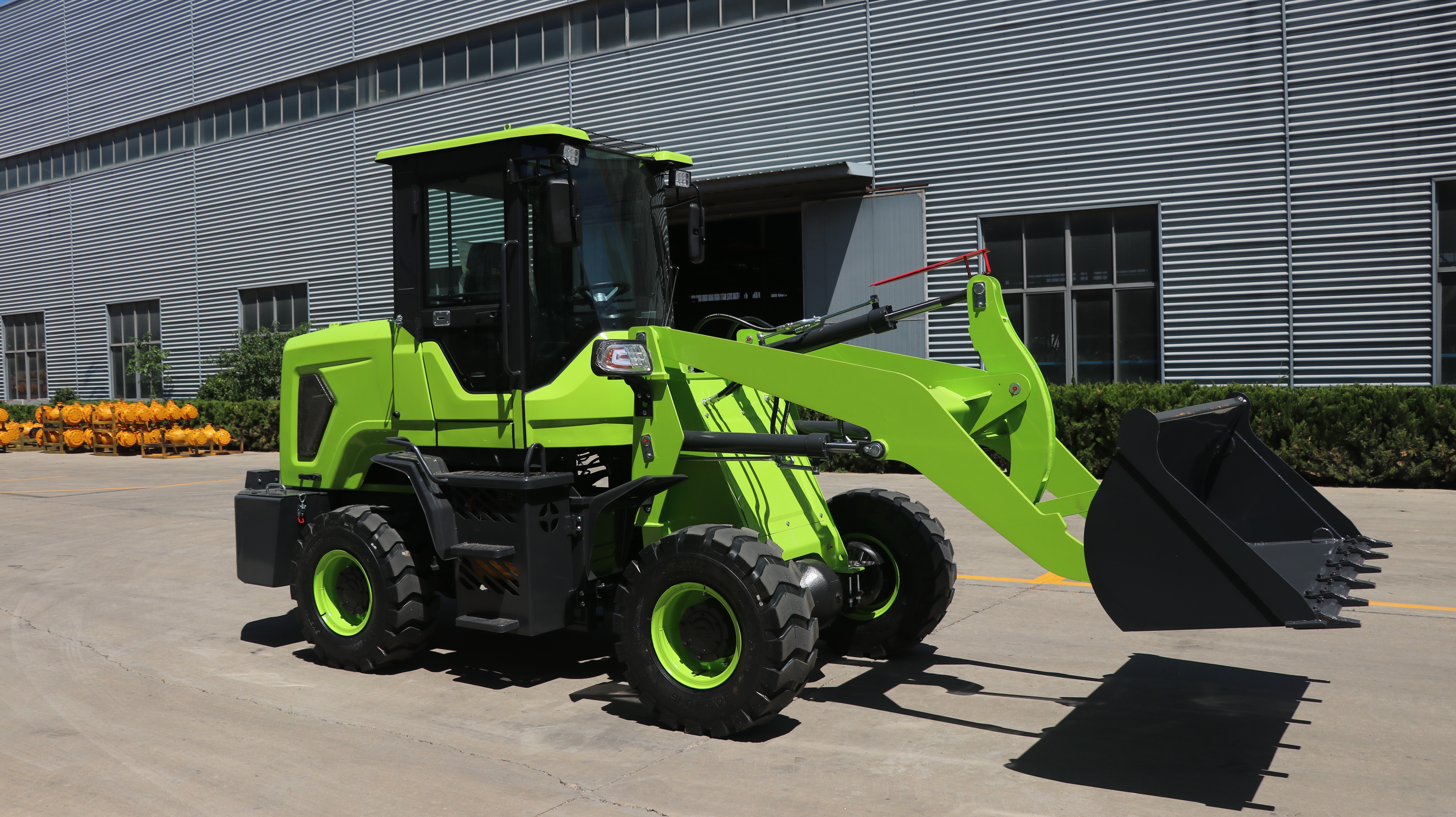

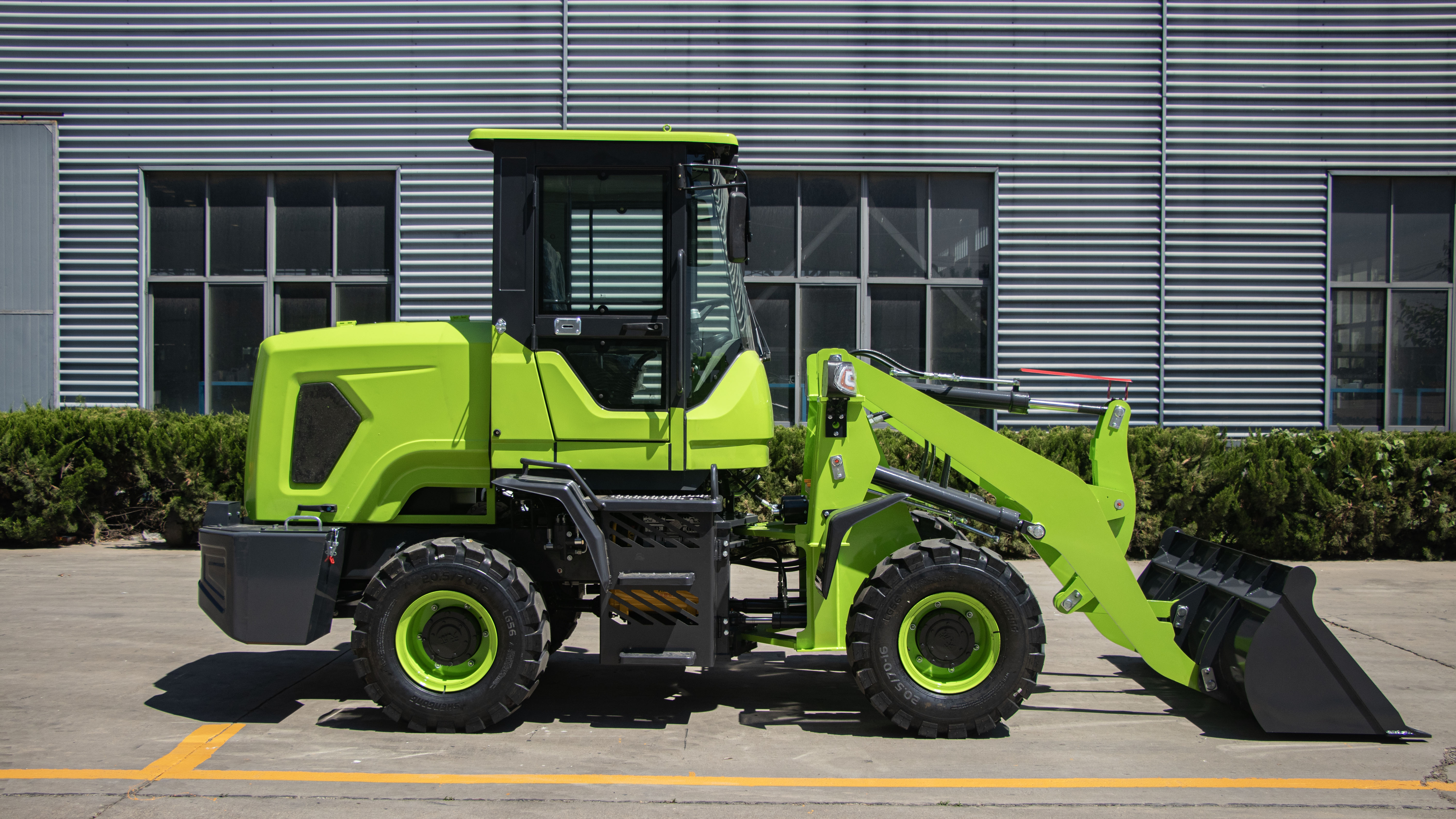

Product Model:FG932E

  • Zero emissions and low noise, environmentally compliant across all regions

  • Significantly reduced energy costs and higher long-term returns

  • Simple and cost-effective maintenance with less downtime loss

  • Rapid power response for comfortable and efficient operation


Parameter Specifications

Length × Width × Height

5550×1900×2740mm

Wheelbase

2170mm

Track Width

1500mm

Dumping Height

3200mm

Dumping Reach

840mm

Minimum Ground Clearance

230mm

Turning Radius

2950mm

Bucket Width

1900mm

Bucket Capacity

0.5m³

Rated Load

1300kg

Operating Weight

3610kg

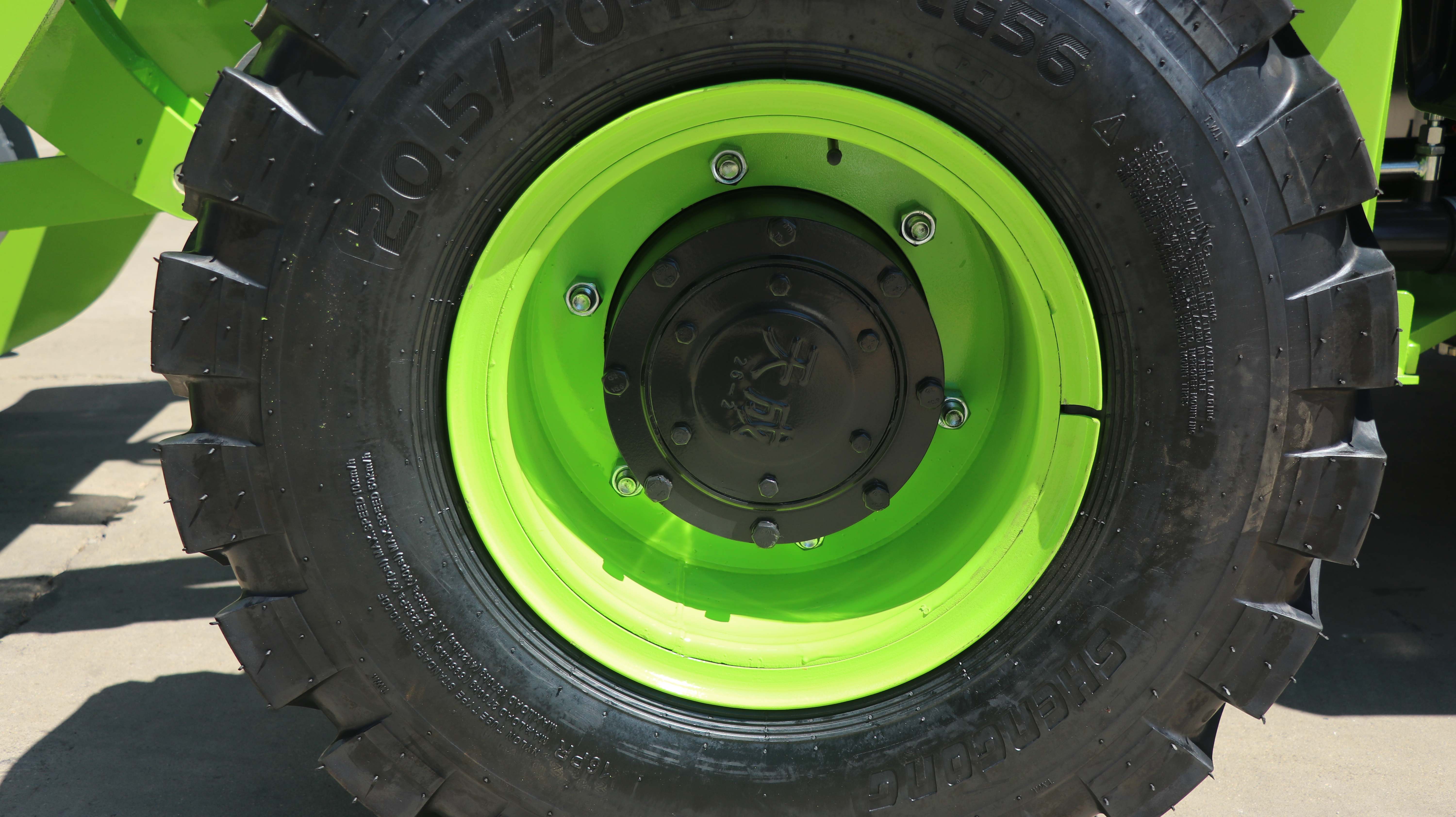

Standard Tires

20.5/70-16

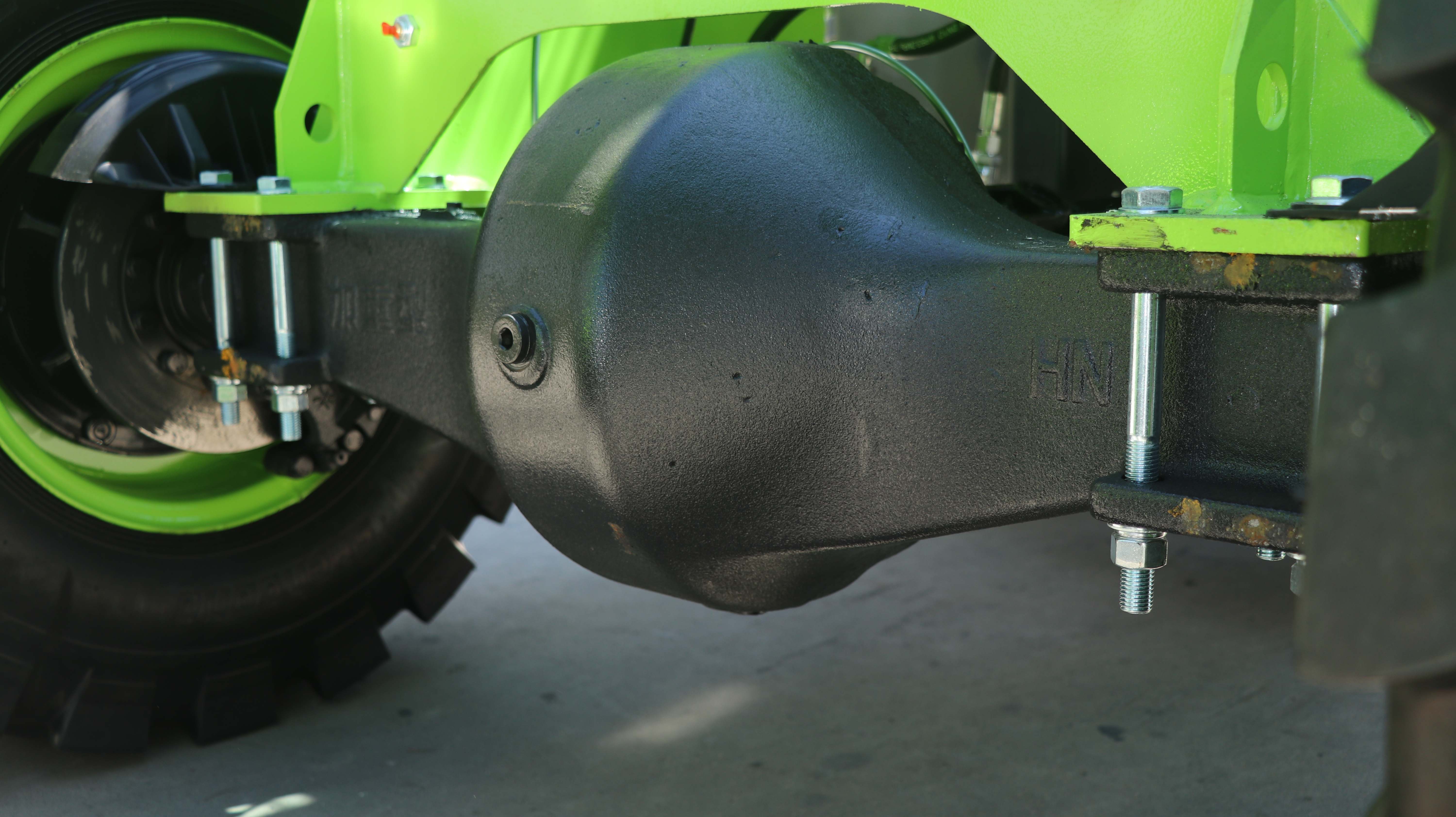

Standard Axle

Small Wheel-End Reduction Axle

Operating Time

6-8H

Charging Time

3-4H

Battery Type

LiFePO4

Battery Capacity

35kWh

Electric Transmission

Motor Drive

Torque Converter Type

Hydraulic Gear Engagement

Travel Speed

30km/h

Gears

2 Forward and 2 Reverse

Fuel Tank Capacity

40L

Service Brake

Air Brake

Parking Brake

Mechanical Hand Brake


Main Functions

  • Zero emissions and low noise, environmentally compliant across all regions

  • Significantly reduced energy costs and higher long-term returns

  • Simple and cost-effective maintenance with less downtime loss

  • Rapid power response for comfortable and efficient operation


Application Scenarios

Core Advantages

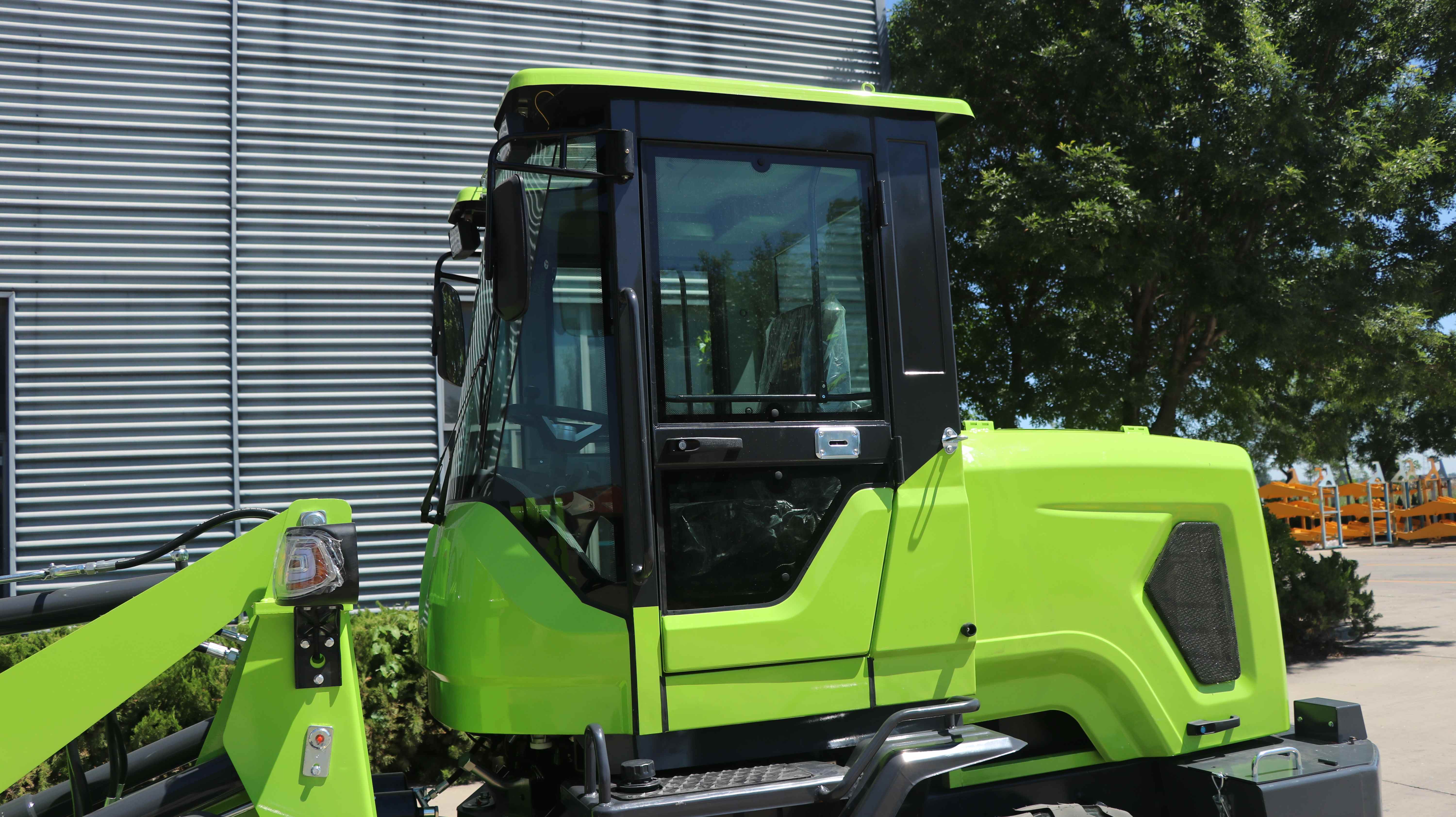

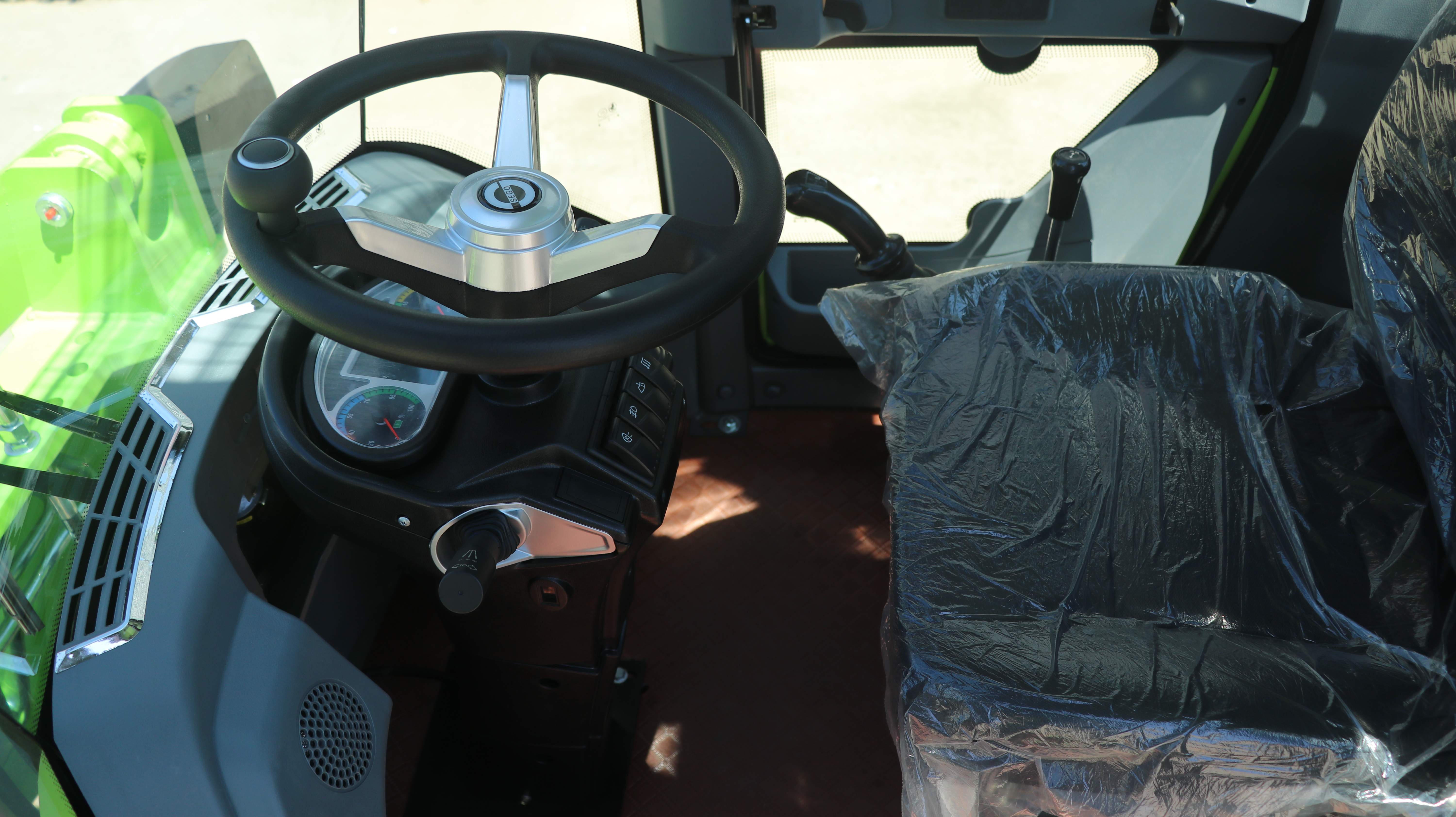

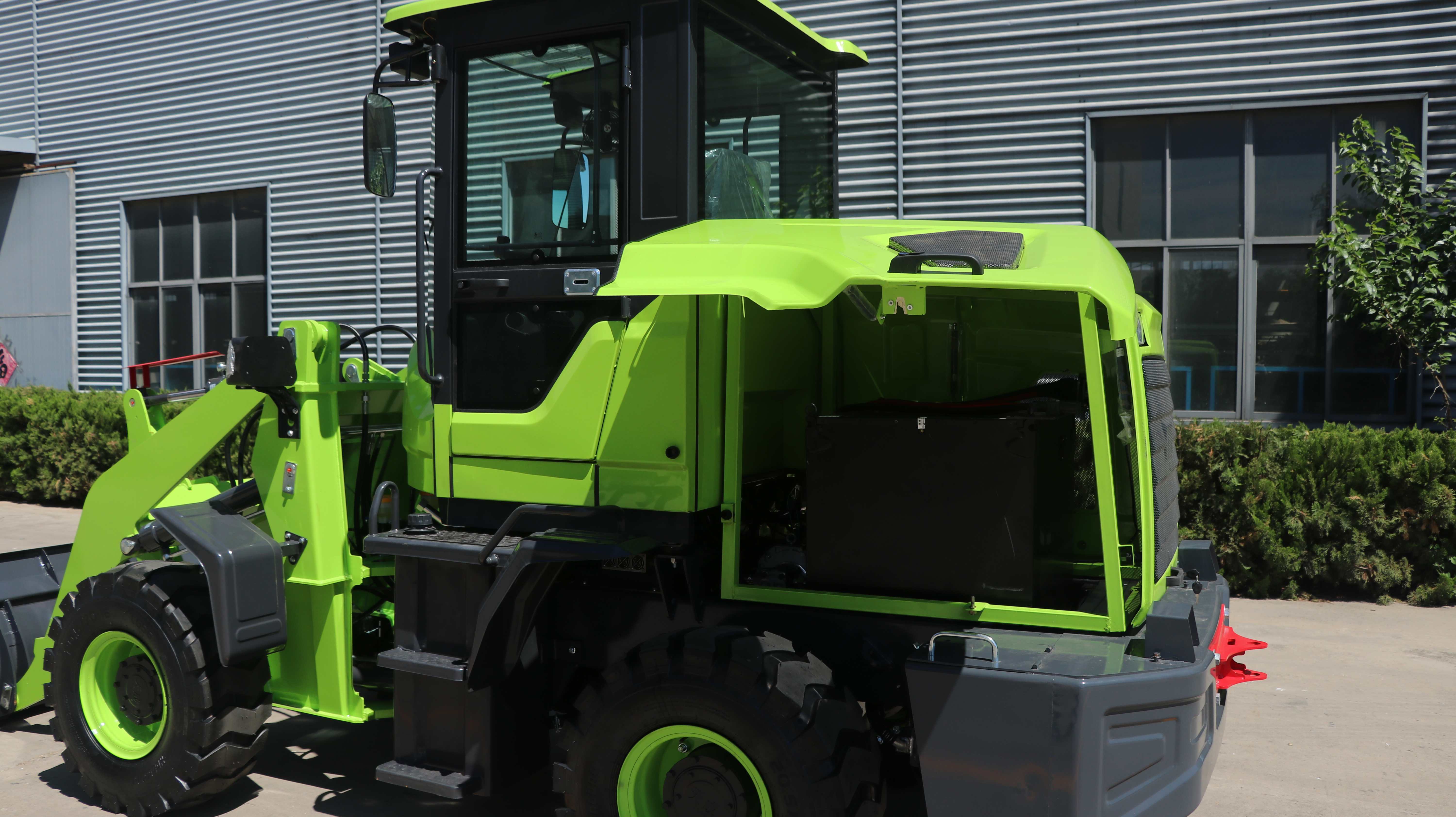

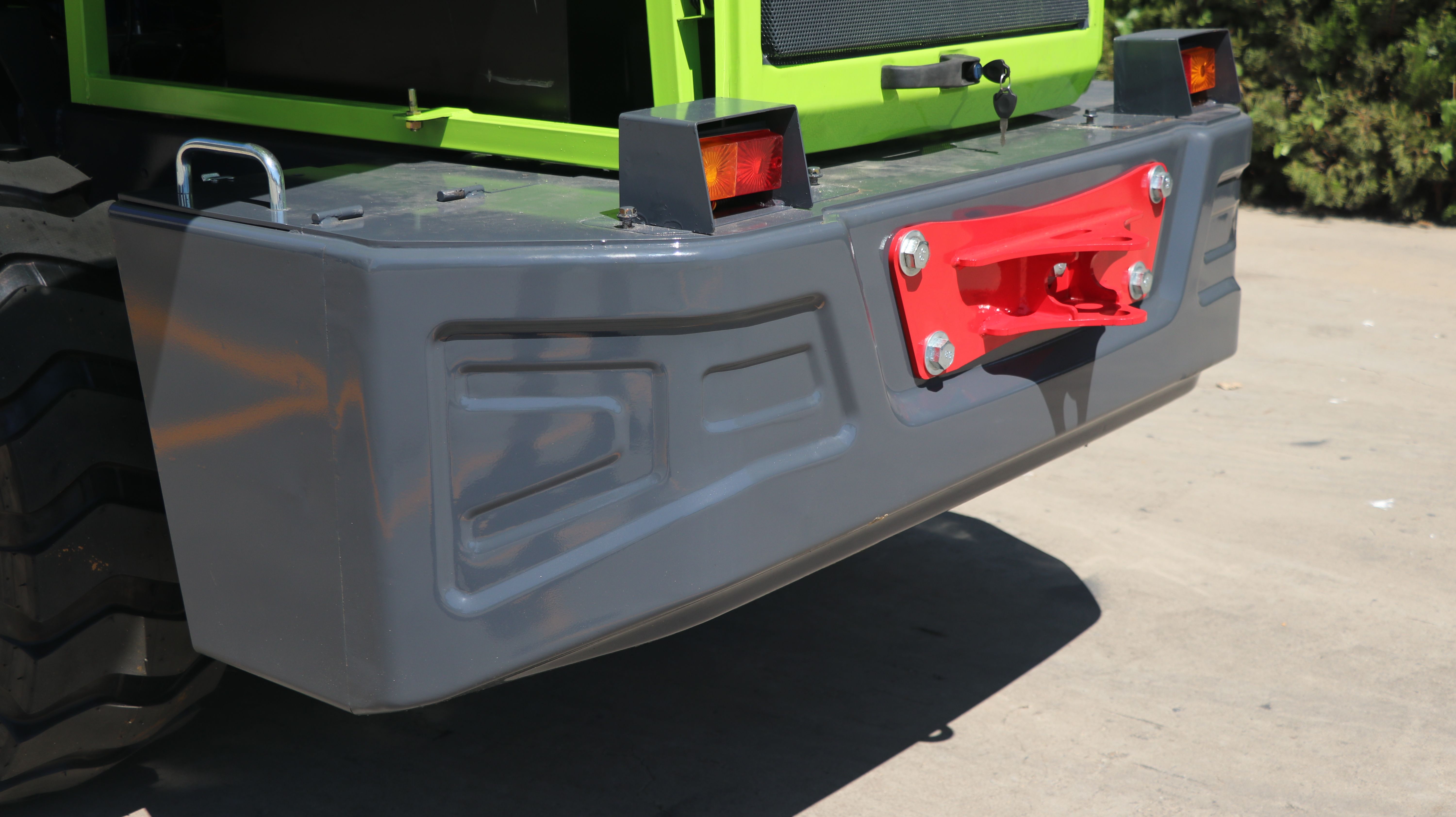

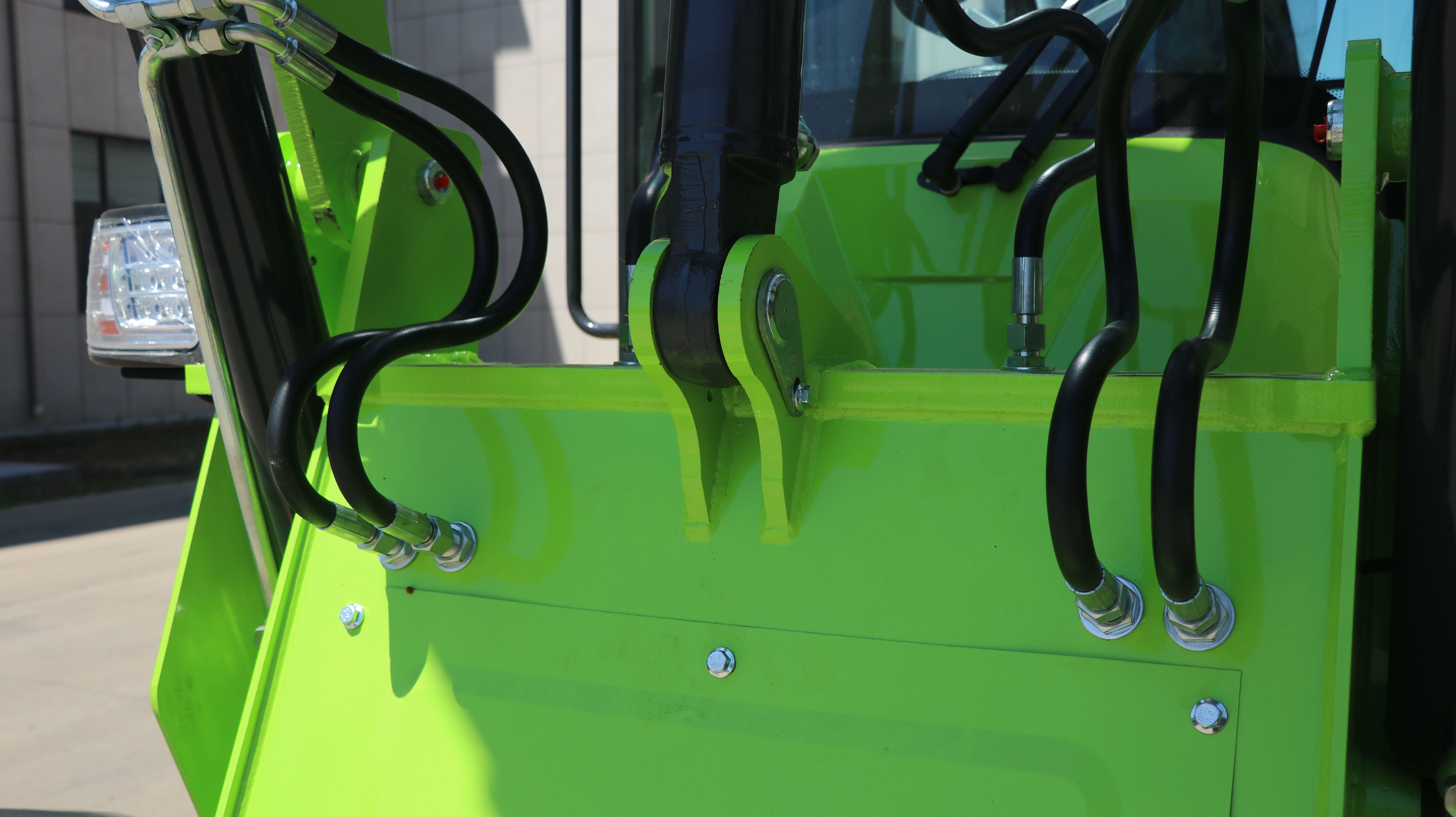

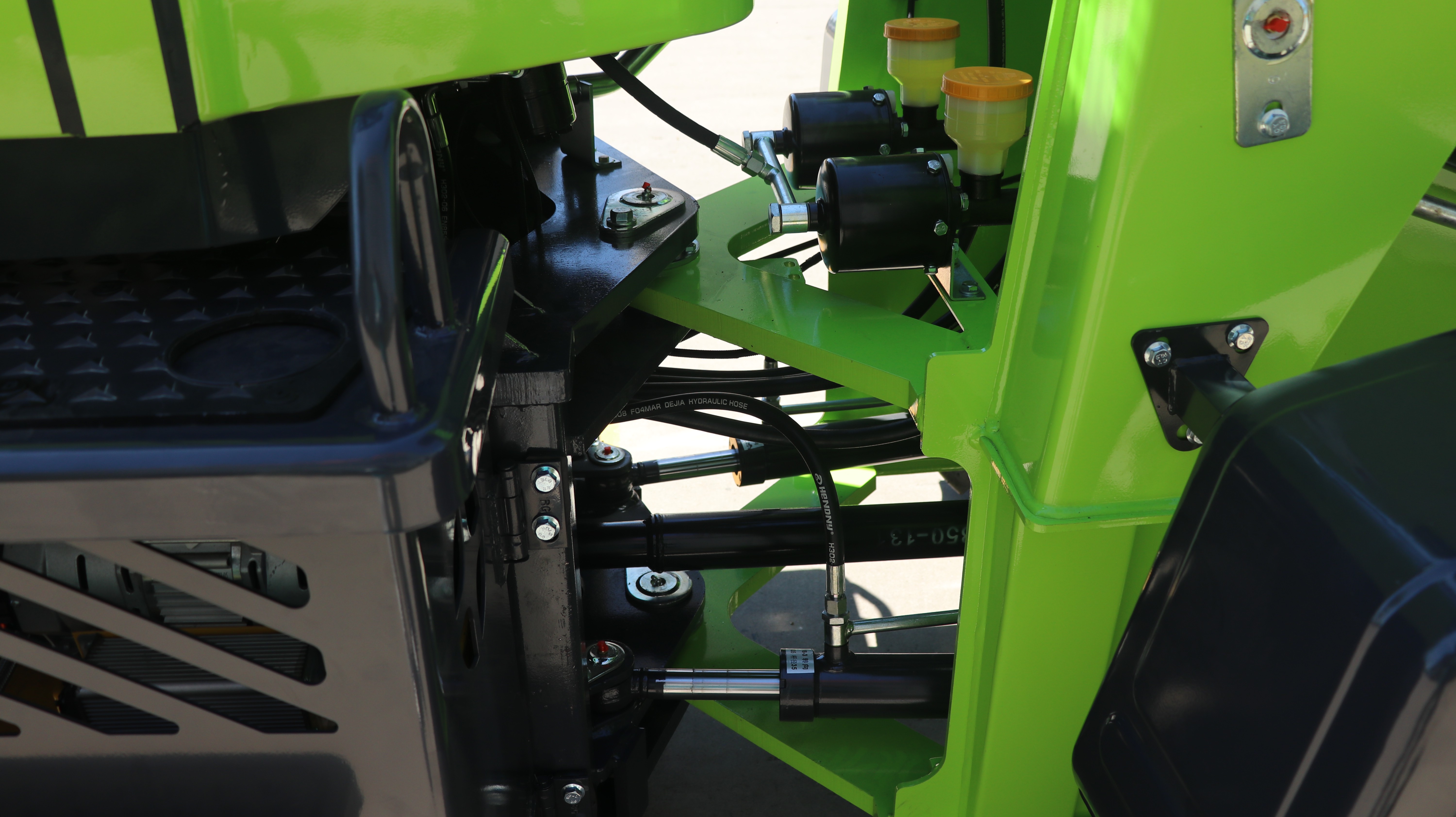

Detail Images

  • IMG_5403
  • IMG_5384
  • IMG_5369
  • IMG_5365
  • IMG_5361
  • IMG_5350
  • IMG_5348
  • IMG_5377
