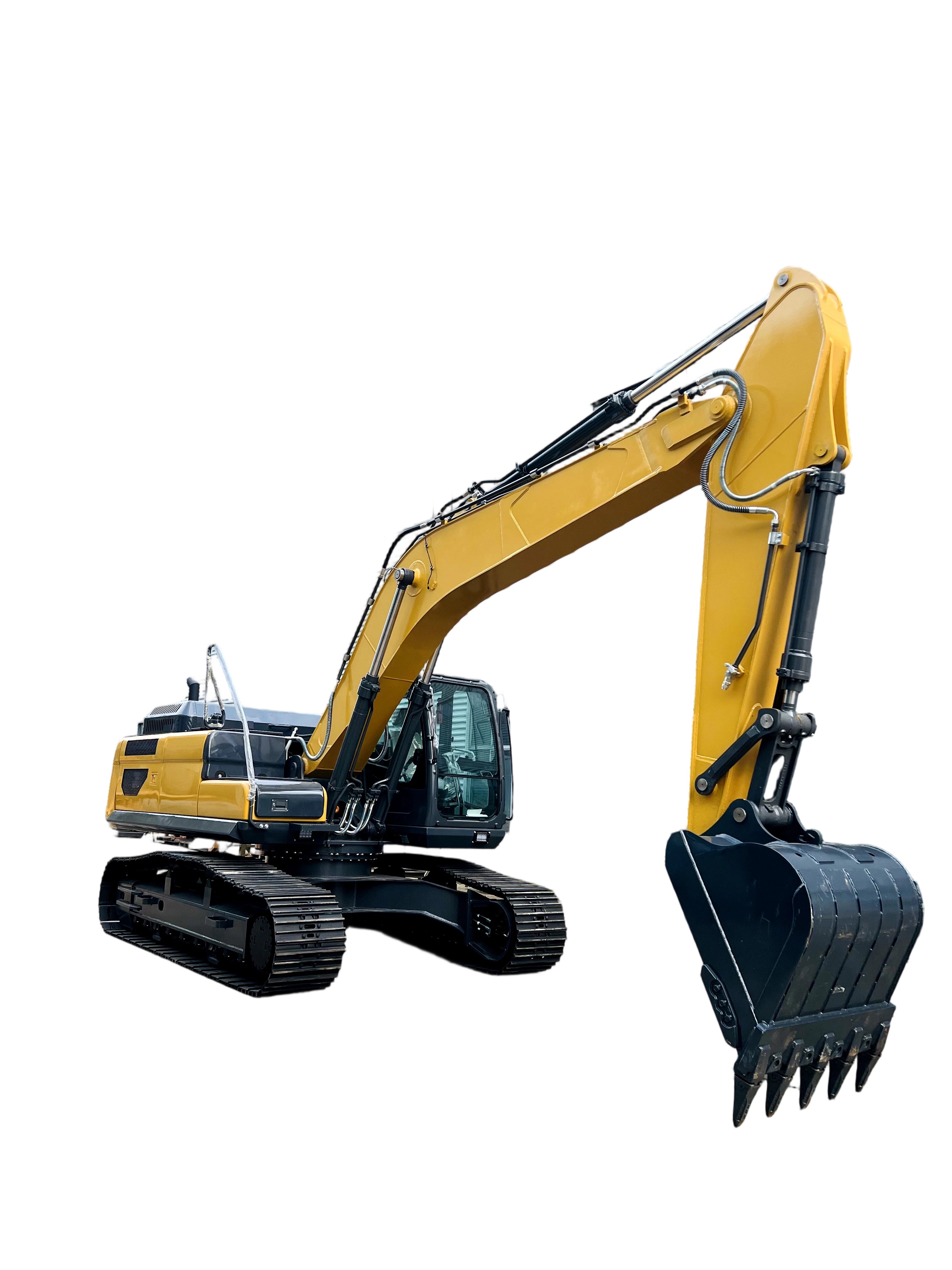

SDSG DC230 Crawler Excavator
Product Model:DC230
The DC230 is a 23-ton class crawler hydraulic excavator featuring a high-performance conventional powertrain. It is equipped with a Cummins diesel engine (rated power: 135kW/2000rpm) and an advanced hydraulic system, delivering robust power and stable performance for large-scale construction projects.
With an operating weight in the 23-ton class and a 1.1–1.2 m³ backhoe bucket, the machine offers a wide working range and high excavation efficiency. It utilizes a reinforced crawler undercarriage and a high-power hydraulic system to meet the demands of heavy-duty operations in mining, earthmoving, municipal works, and large-scale infrastructure projects.
Parameter Specifications
Main Functions
The DC230 is a 23-ton class crawler hydraulic excavator featuring a high-performance conventional powertrain. It is equipped with a Cummins diesel engine (rated power: 135kW/2000rpm) and an advanced hydraulic system, delivering robust power and stable performance for large-scale construction projects.
With an operating weight in the 23-ton class and a 1.1–1.2 m³ backhoe bucket, the machine offers a wide working range and high excavation efficiency. It utilizes a reinforced crawler undercarriage and a high-power hydraulic system to meet the demands of heavy-duty operations in mining, earthmoving, municipal works, and large-scale infrastructure projects.
Application Scenarios
1. Large-scale Earthmoving
Suitable for continuous operations such as large-site excavation, earth transport, and foundation construction.
2. Mining and Quarrying
With strong digging force and a stable undercarriage, it is ideal for overburden removal, ore loading, and aggregate operations.
3. Infrastructure Construction
Suitable for highways, railways, water conservancy projects, and urban infrastructure development.
4. Large-scale Building Construction
Capable of deep foundation pit excavation, underground construction, and major earthmoving tasks.
5. River and Water Conservancy Works
Suitable for projects such as river dredging, dam construction, and canal excavation.
Core Advantages
1. Powerful Powertrain
Equipped with a Cummins diesel engine delivering a rated power of 135kW; provides ample power for prolonged, high-load operations.
2. Excellent Excavation Performance
Features a maximum digging radius of 9,910 mm, a maximum digging height of 9,660 mm, and a maximum digging depth of 6,660 mm, ensuring a wide operating range.
3. Superior Digging Capability
Delivers a maximum bucket digging force of 177.9 kN and a maximum arm digging force of 115.3 kN, easily handling hard soil layers and complex working conditions. 4. High-Efficiency Hydraulic System
Equipped with variable-displacement axial piston pumps, the main pump delivers a maximum flow rate of 2 × 109 L/min; rapid response times enhance operational efficiency.
5. Stable and Reliable Undercarriage
The total track width reaches 3,000 mm with 600 mm wide track shoes, ensuring excellent ground contact and superior equipment stability.
6. High-Capacity Design
Features a 350 L fuel tank and a 210 L hydraulic oil tank, minimizing downtime for refueling and extending continuous operation capabilities.

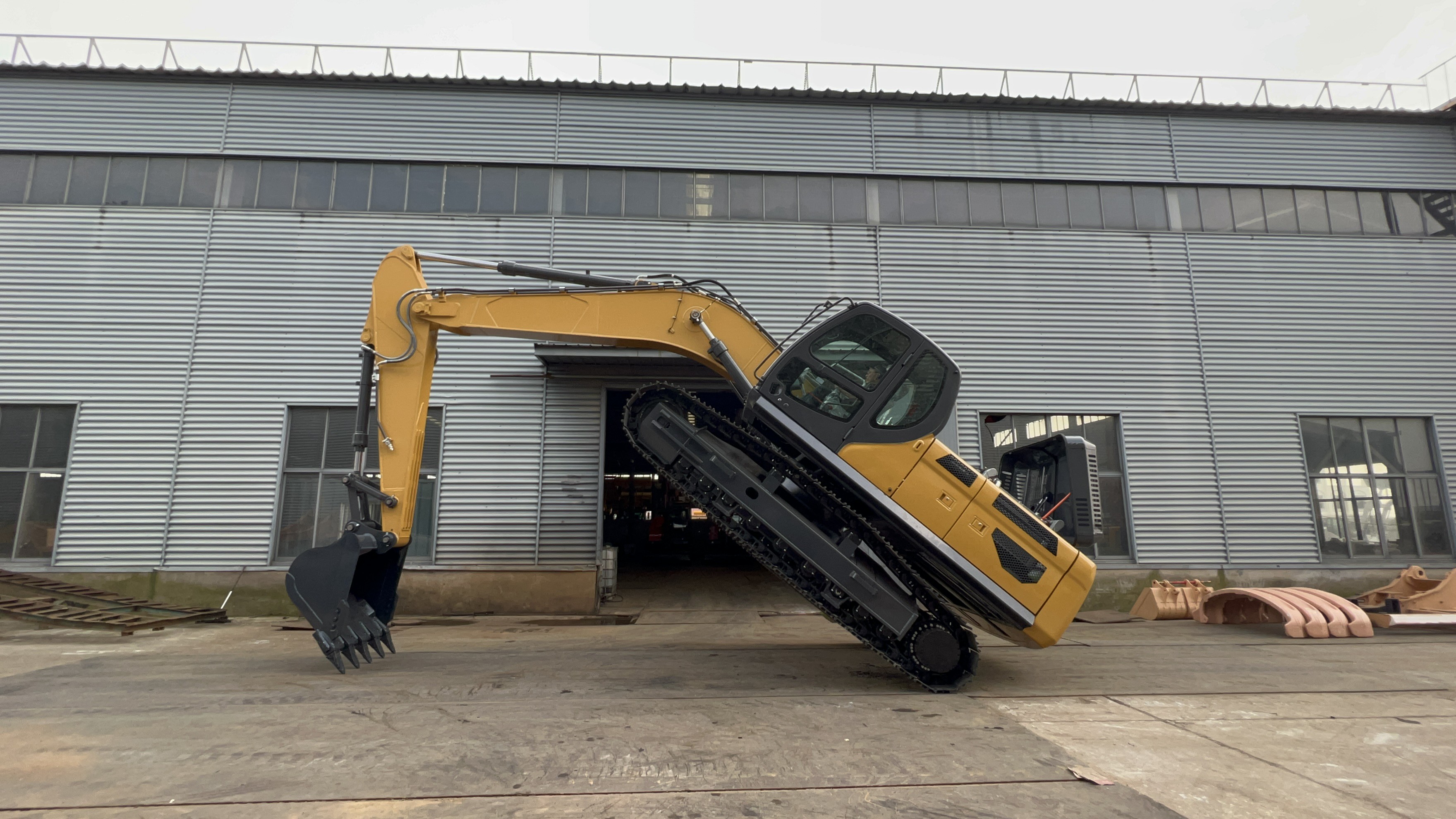

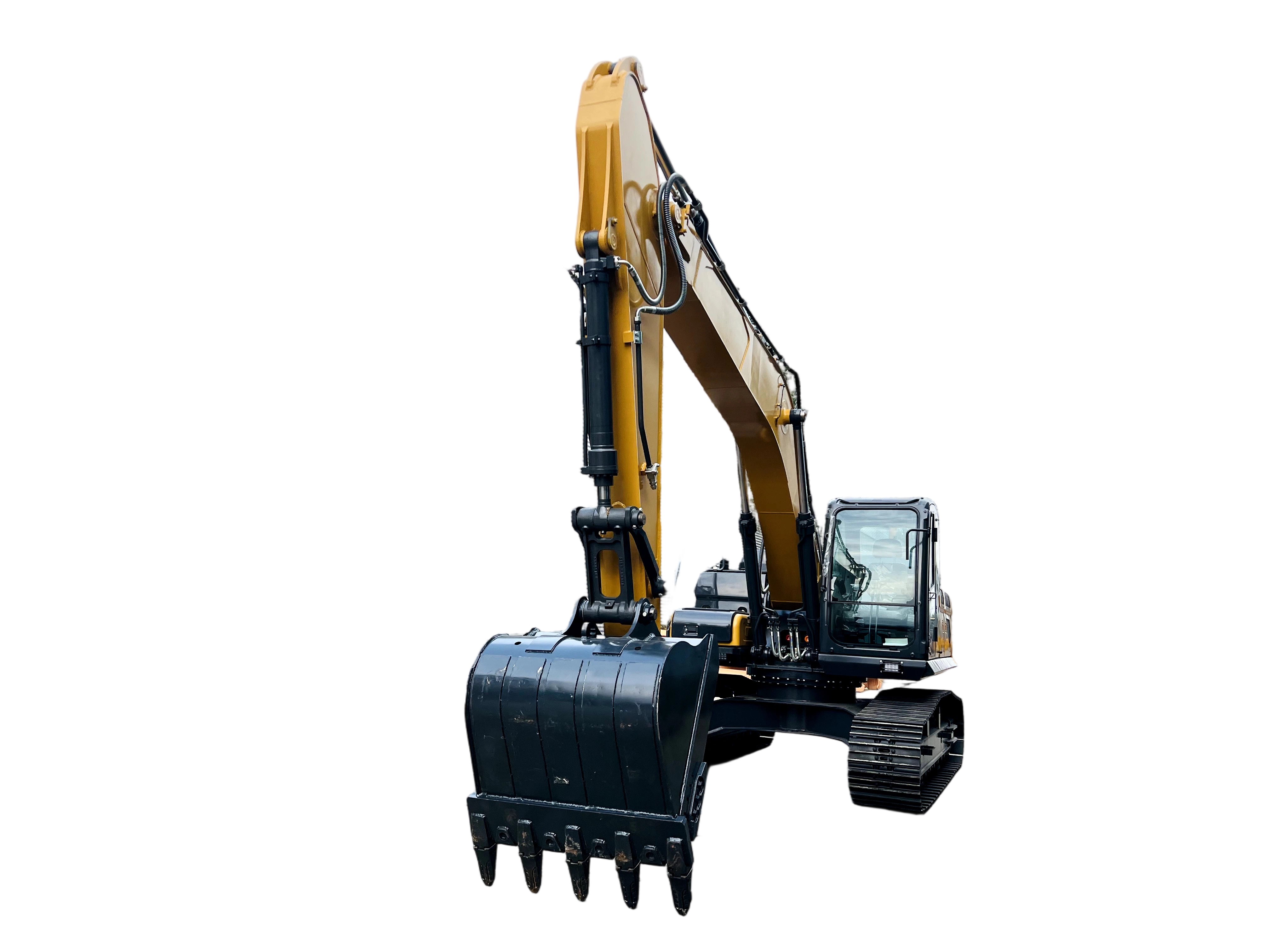

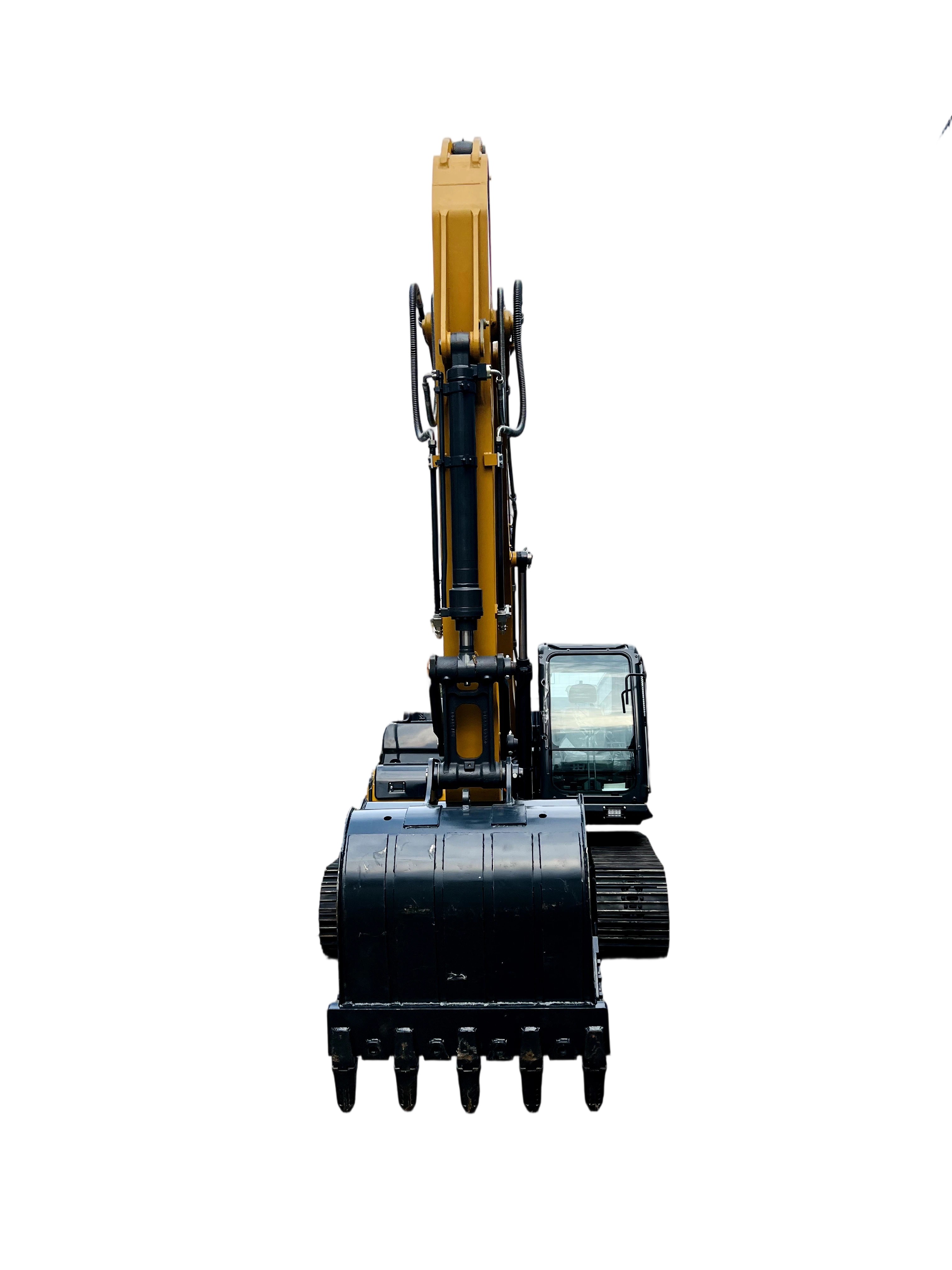

Detail Images
