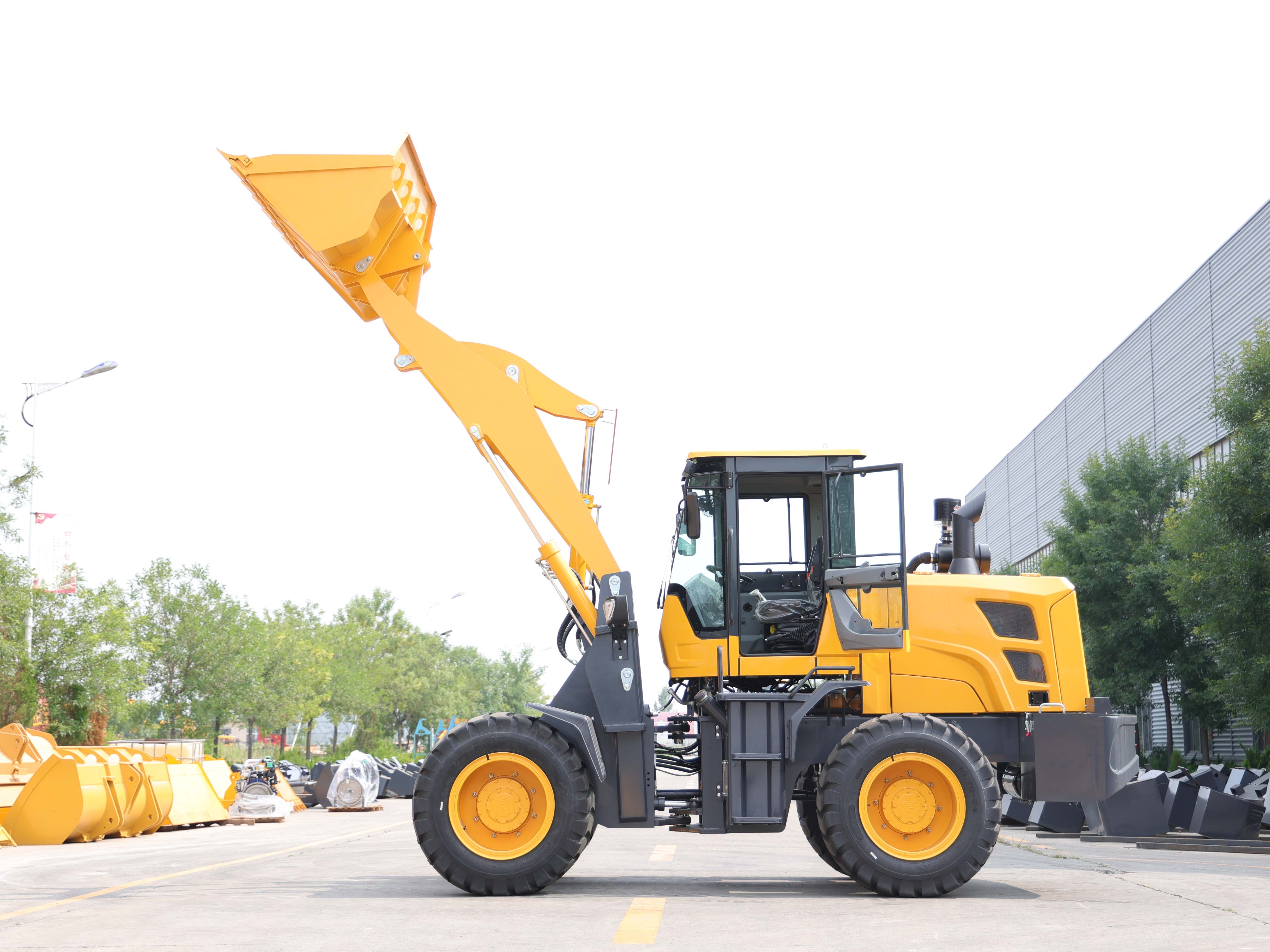

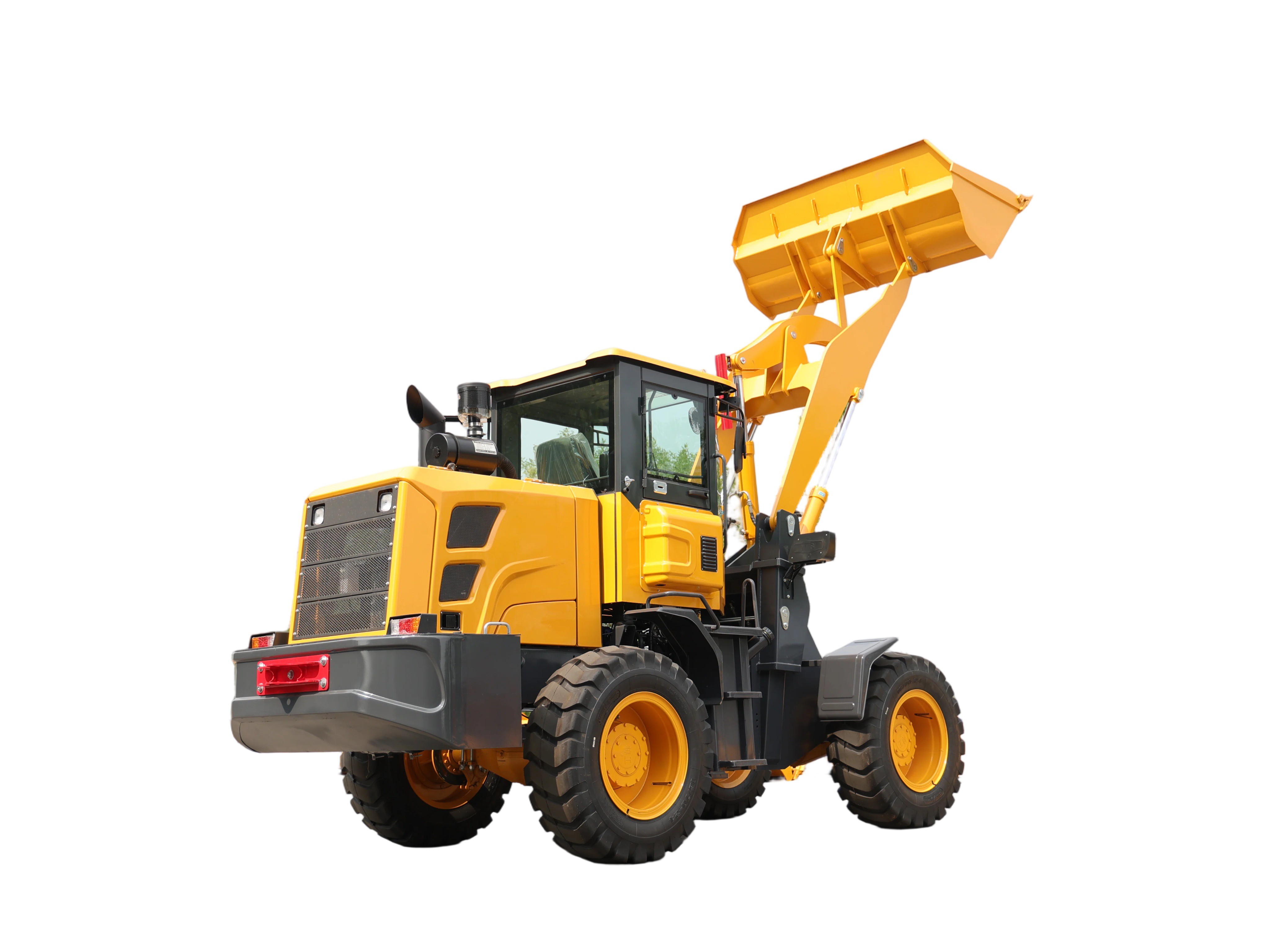

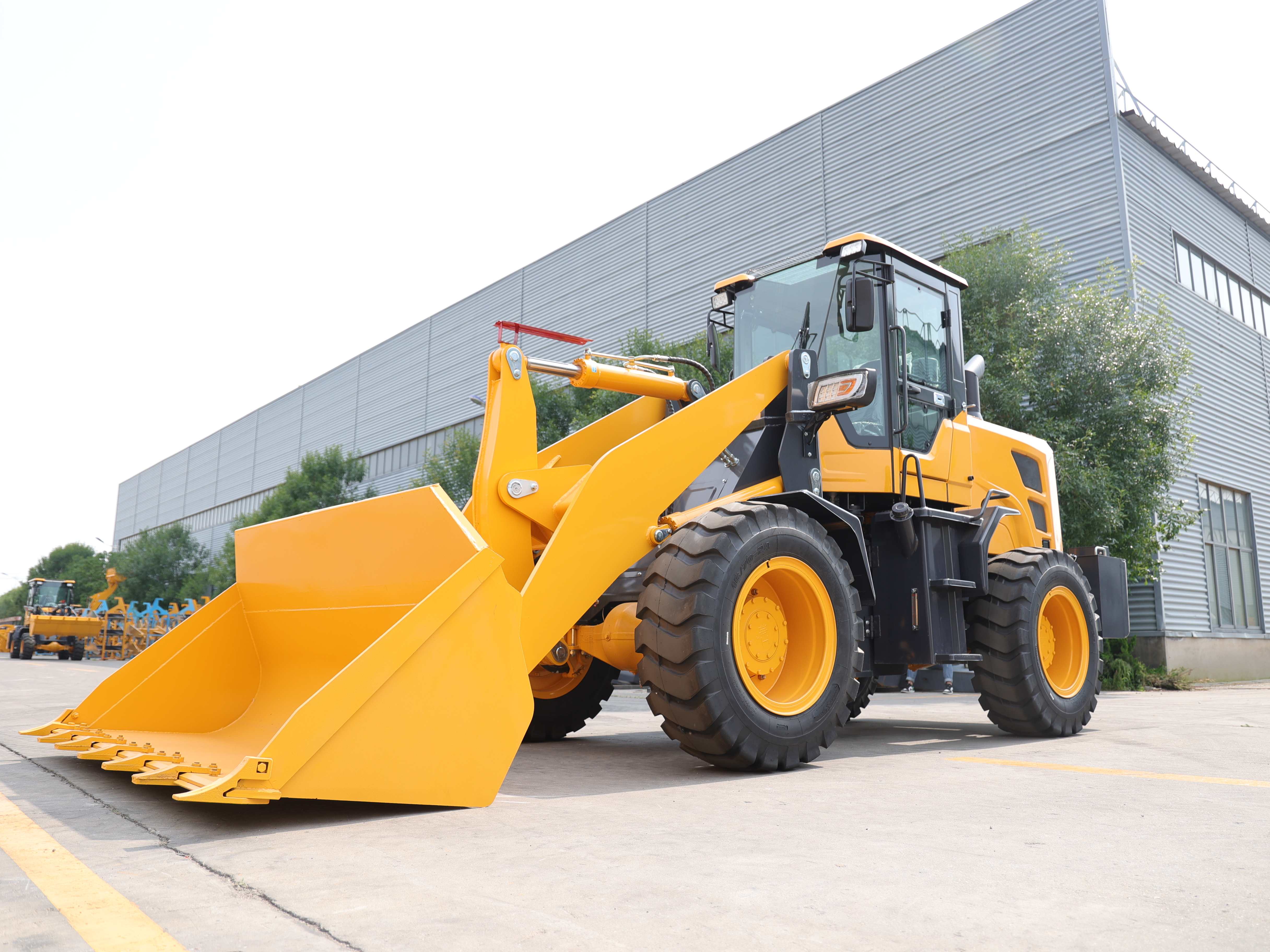

SDSG FC958 Wheel Loader

SDSG FC958 Wheel Loader

Product Model:FC958

The FC958 is a high-efficiency, medium-to-large tonnage wheel loader capable of integrated operations including high-capacity loading, high-position dumping, efficient handling, and short-to-medium distance transport. It excels at loading and transferring bulk materials such as earth and stone, sand and gravel, coal, grain, and construction materials. Compatible with various attachments, it supports extended functions like pushing, scraping, grabbing, and clamping, meeting diverse operational needs in complex working environments.


Parameter Specifications

Parameter NameParameter Value
Length × Width × Height6580×2250×3000 mm
Wheelbase2540 mm
Track Width1680 mm
Dump Height3500 mm
Dump Reach1200 mm
Minimum Ground Clearance360 mm
Turning Radius3400 mm
Bucket Width2200 mm
Bucket Capacity1.2 m³
Rated Load Capacity2500 kg
Machine Weight6300 kg
Standard Tires16/70-24
Standard AxleLarge Wheel-Side Reduction Axle Big wheel-side reducer
Engine Brand/ModelYunnei YN48GBZ
Rated Power92 kW
Rated Speed2400 r/min
Engine TypeInline four-stroke
Torque Converter Size300 Split Transmission
Torque Converter TypeHydrodynamic shifting
Travel Speed35 km/h
GearsTwo forward, two reverse
Fuel Tank Capacity90 L
Service BrakeAir brake
Parking BrakeMechanical hand brake


Main Functions

The FC958 is a high-efficiency, medium-to-large tonnage wheel loader capable of integrated operations including high-capacity loading, high-position dumping, efficient handling, and short-to-medium distance transport. It excels at loading and transferring bulk materials such as earth and stone, sand and gravel, coal, grain, and construction materials. Compatible with various attachments, it supports extended functions like pushing, scraping, grabbing, and clamping, meeting diverse operational needs in complex working environments.


Application Scenarios

Widely applicable to large construction sites, mining operations, ports and terminals, grain storage facilities, farms and ranches, municipal engineering projects, logistics yards, and construction material mixing plants. It is particularly well-suited for material loading/unloading, high-position dumping, and site leveling tasks in medium-to-large scale projects.


Core Advantages

1. Powerful Performance: Equipped with a Yunnei YN48GBZ engine (rated power: 92kW), it delivers abundant power and ample power reserves. It ensures stable, reliable performance under high-load conditions without power degradation.

2. Robust Structure: Features a widened, heavy-duty front frame combined with a one-piece formed rear frame for superior structural stability. With an operating weight of 6,300kg, it offers excellent torsional and bending resistance, ensuring stability (no tipping or lifting) during heavy-duty operations and extending service life.

3. Excellent Maneuverability: A minimum ground clearance of 360mm combined with a 3,400mm turning radius balances off-road capability with site agility, allowing for easy operation even in confined spaces.

4. Easy Maintenance: The open-style engine hood design provides ample space for daily inspections, servicing, and repairs, effectively reducing maintenance time and downtime costs while boosting equipment uptime.

5. Operator Comfort: The new luxury cab features a comfortable seat, air conditioning, and an audio system. It offers a wide field of view and spacious operating area, reducing fatigue during long shifts and enhancing the overall operating experience. Efficient Drivetrain: Features a Model 300 torque converter and a 2-forward/2-reverse gear transmission, enabling travel speeds of up to 35 km/h. An air braking system ensures operational safety, while heavy-duty hub-reduction axles deliver superior traction. A 1.2 m³ bucket combined with a 2,500 kg rated load significantly boosts operational efficiency.

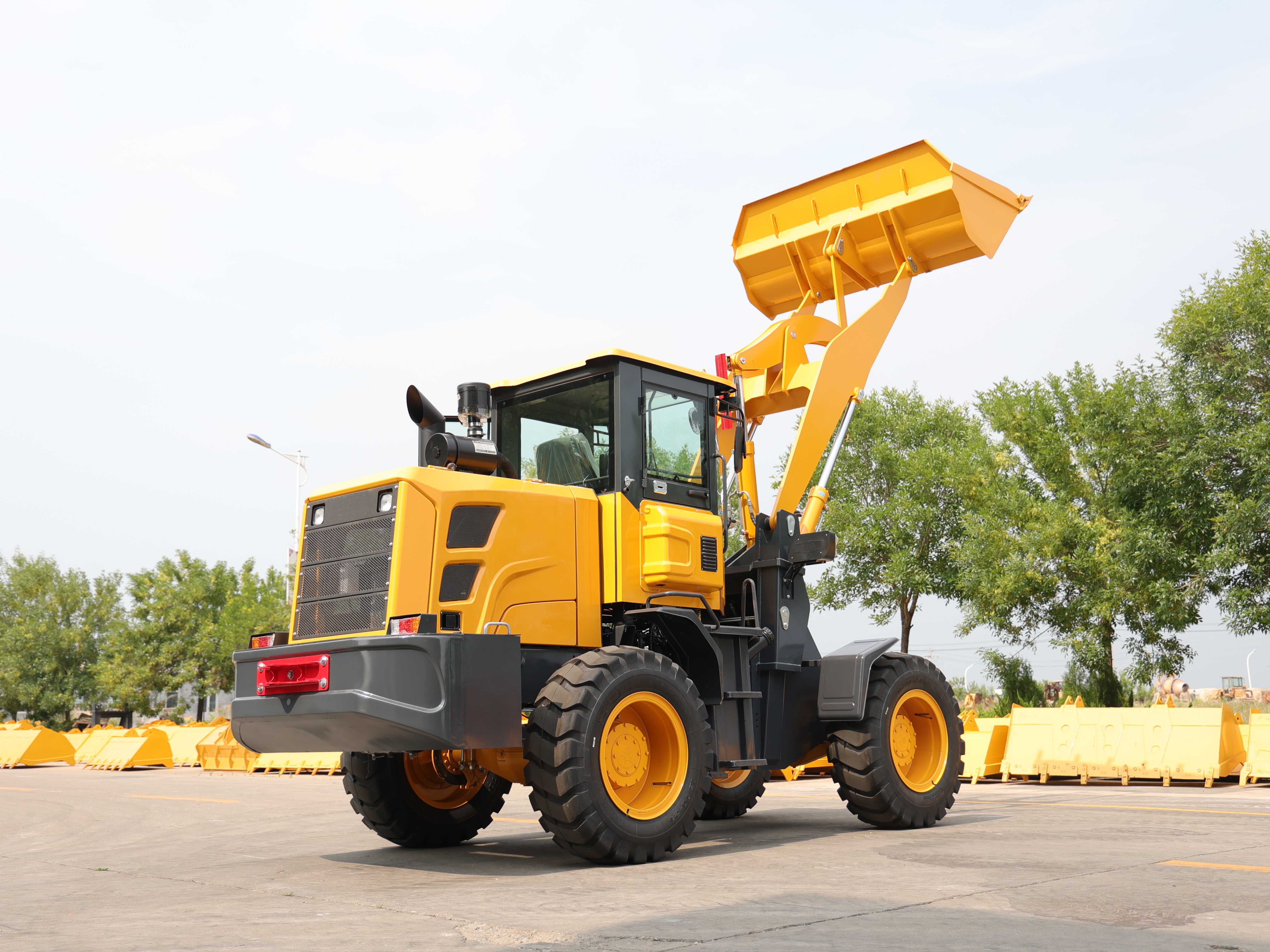

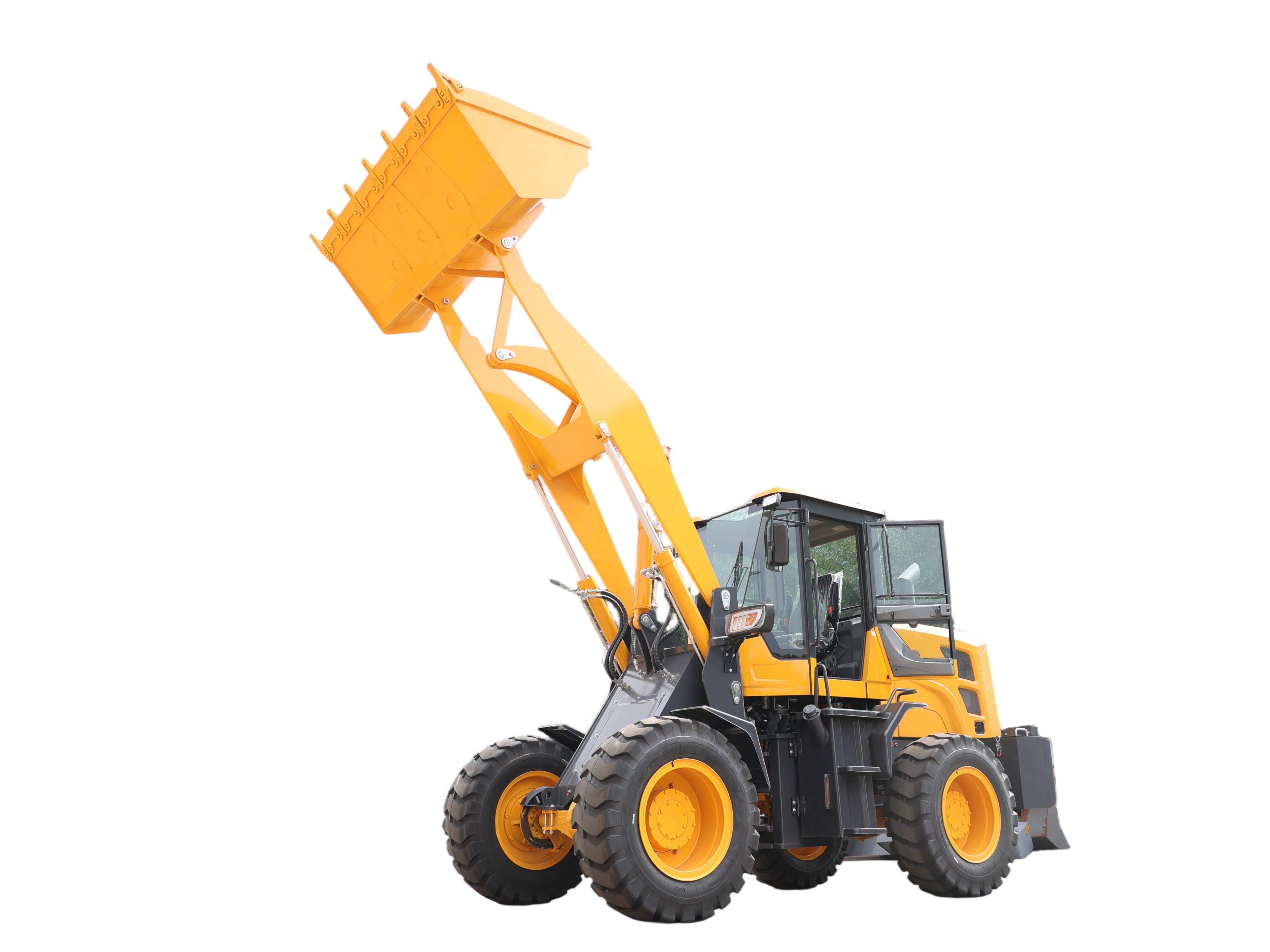

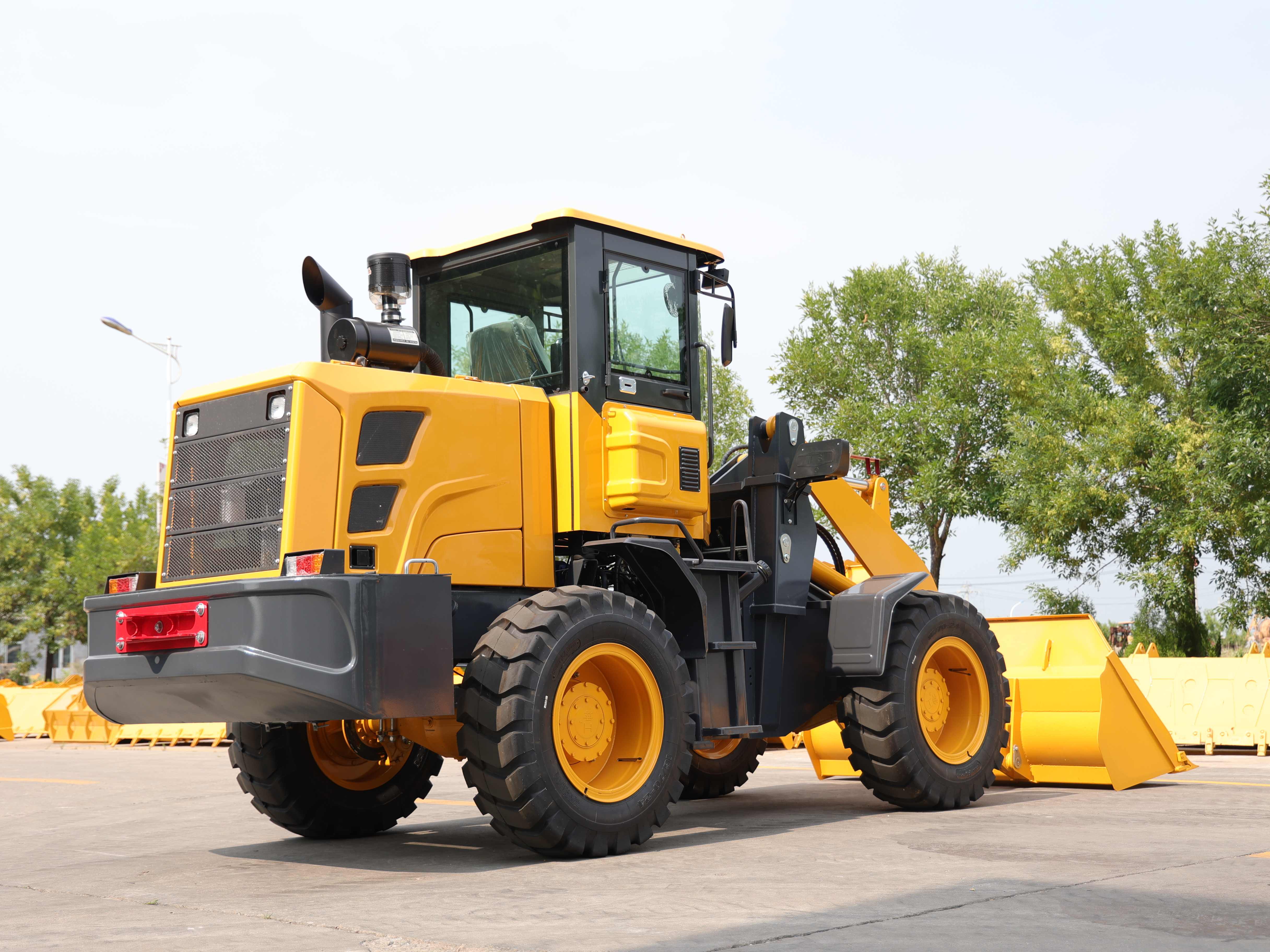

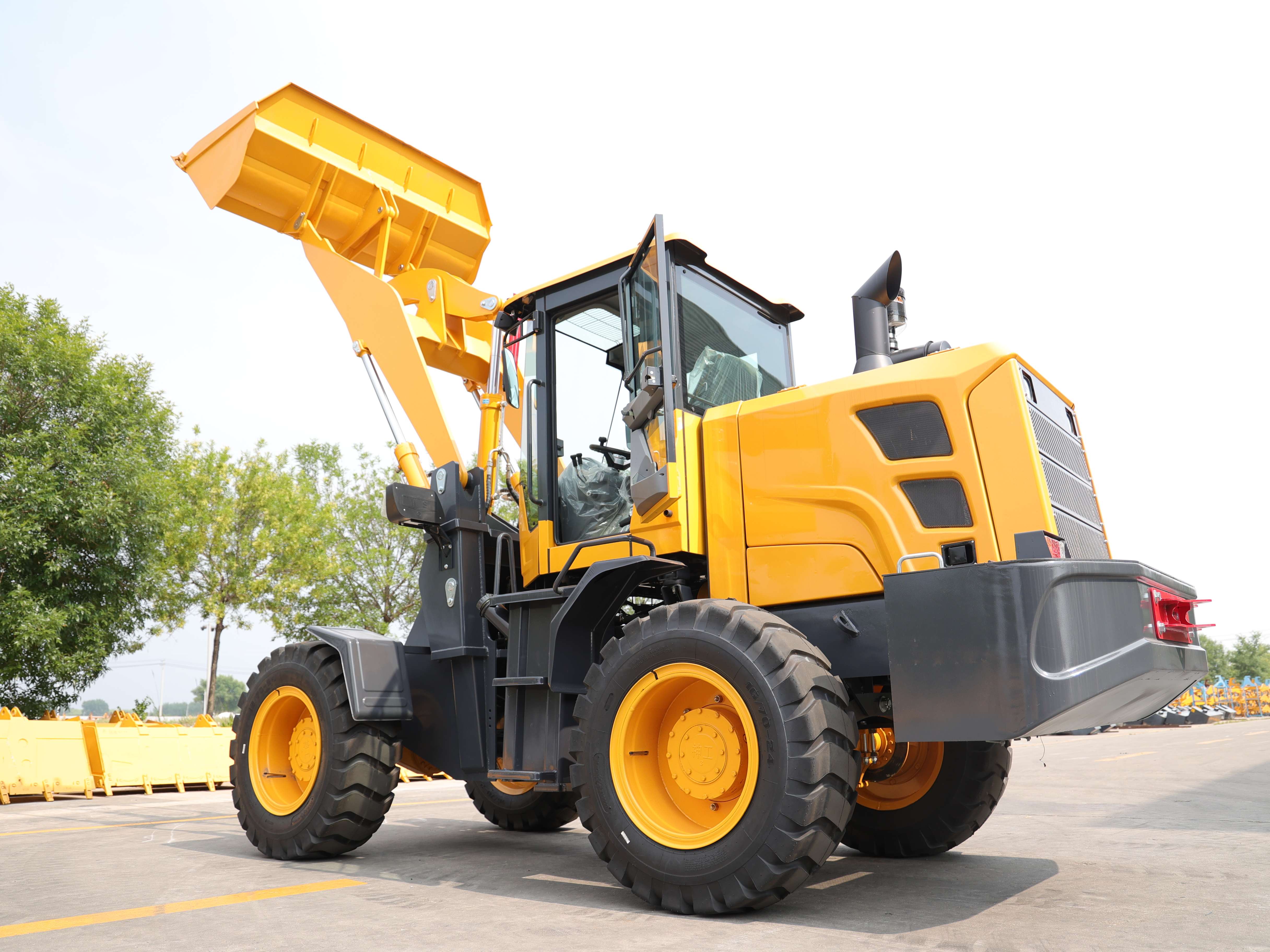

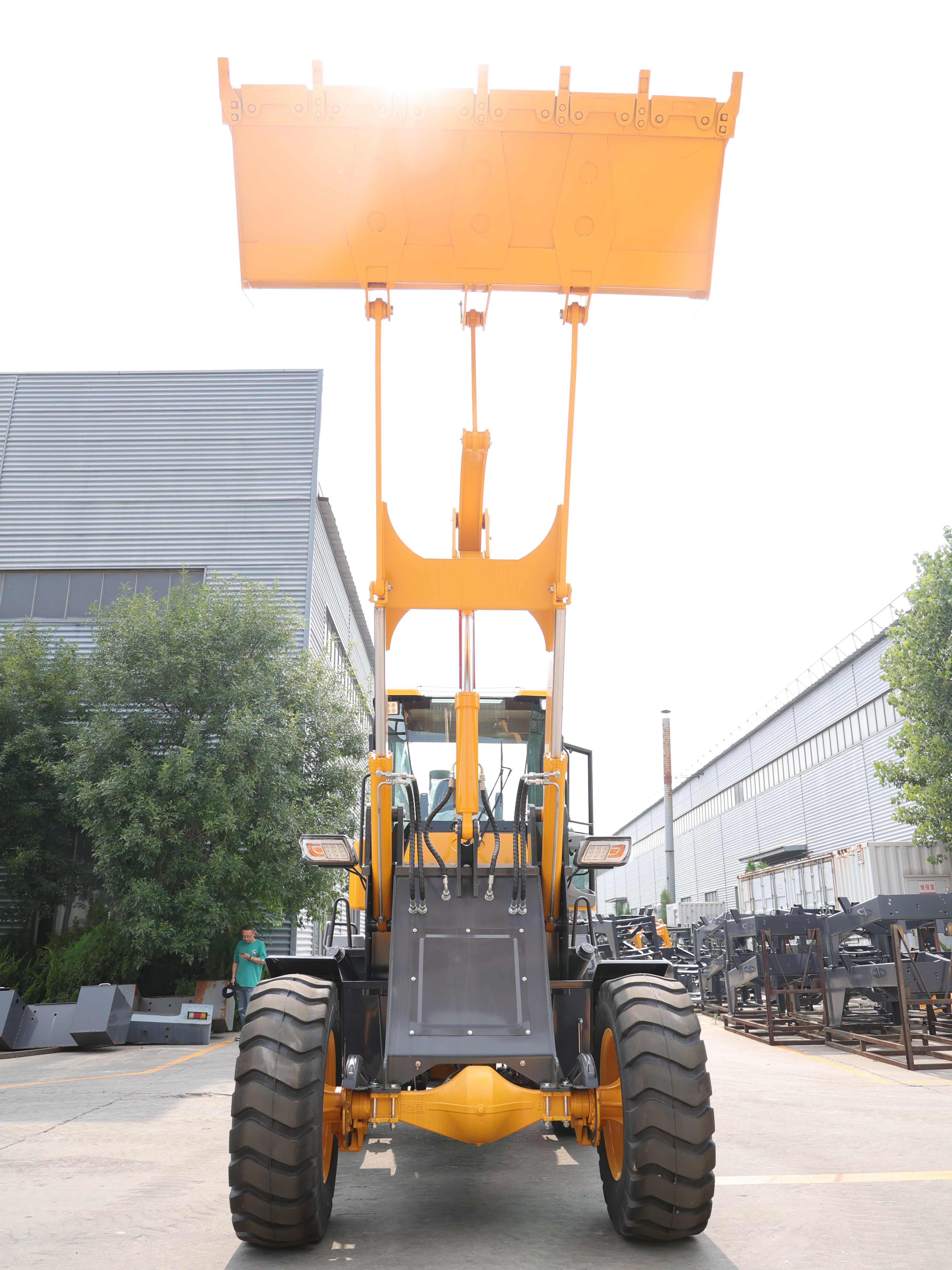

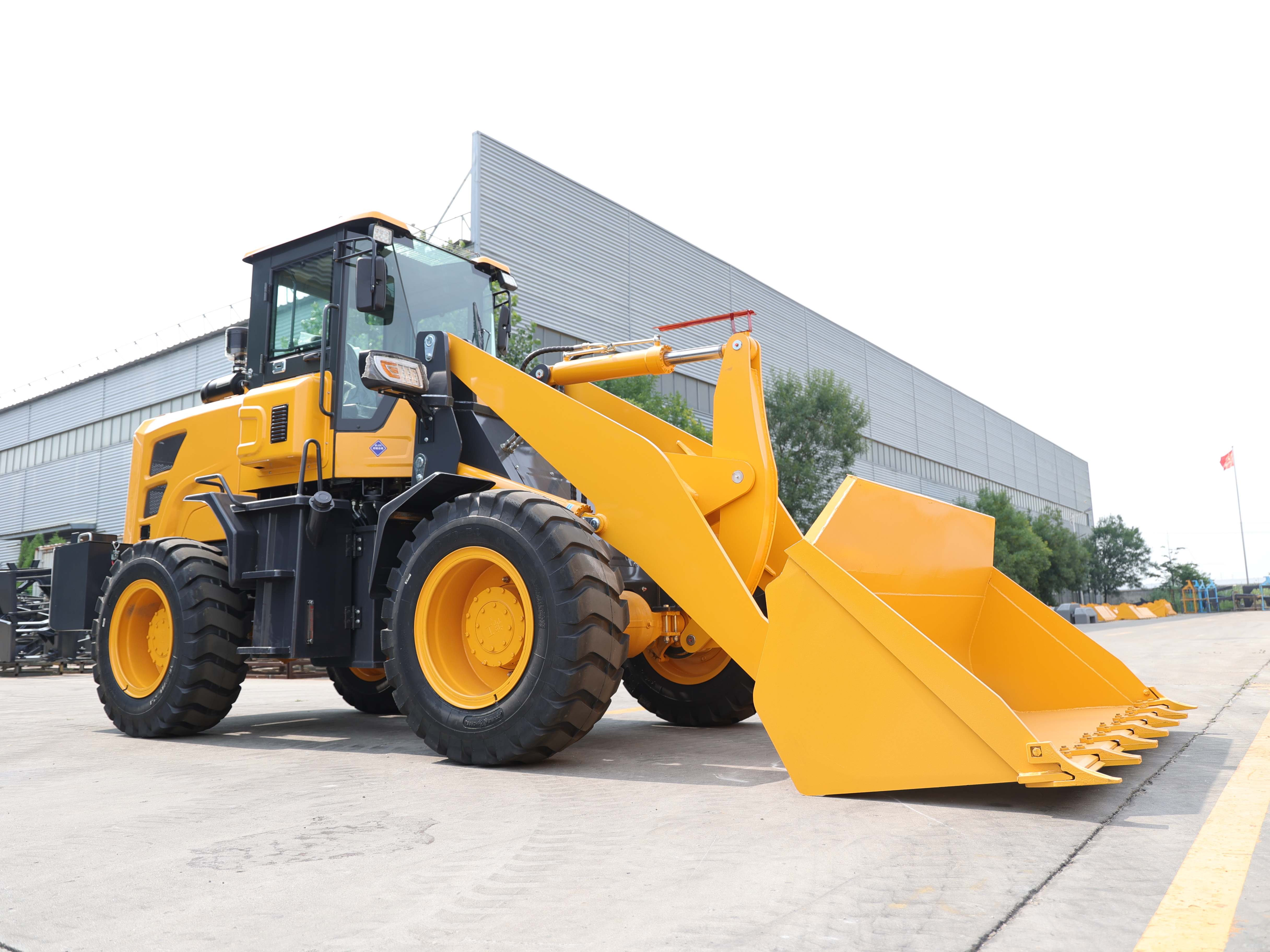

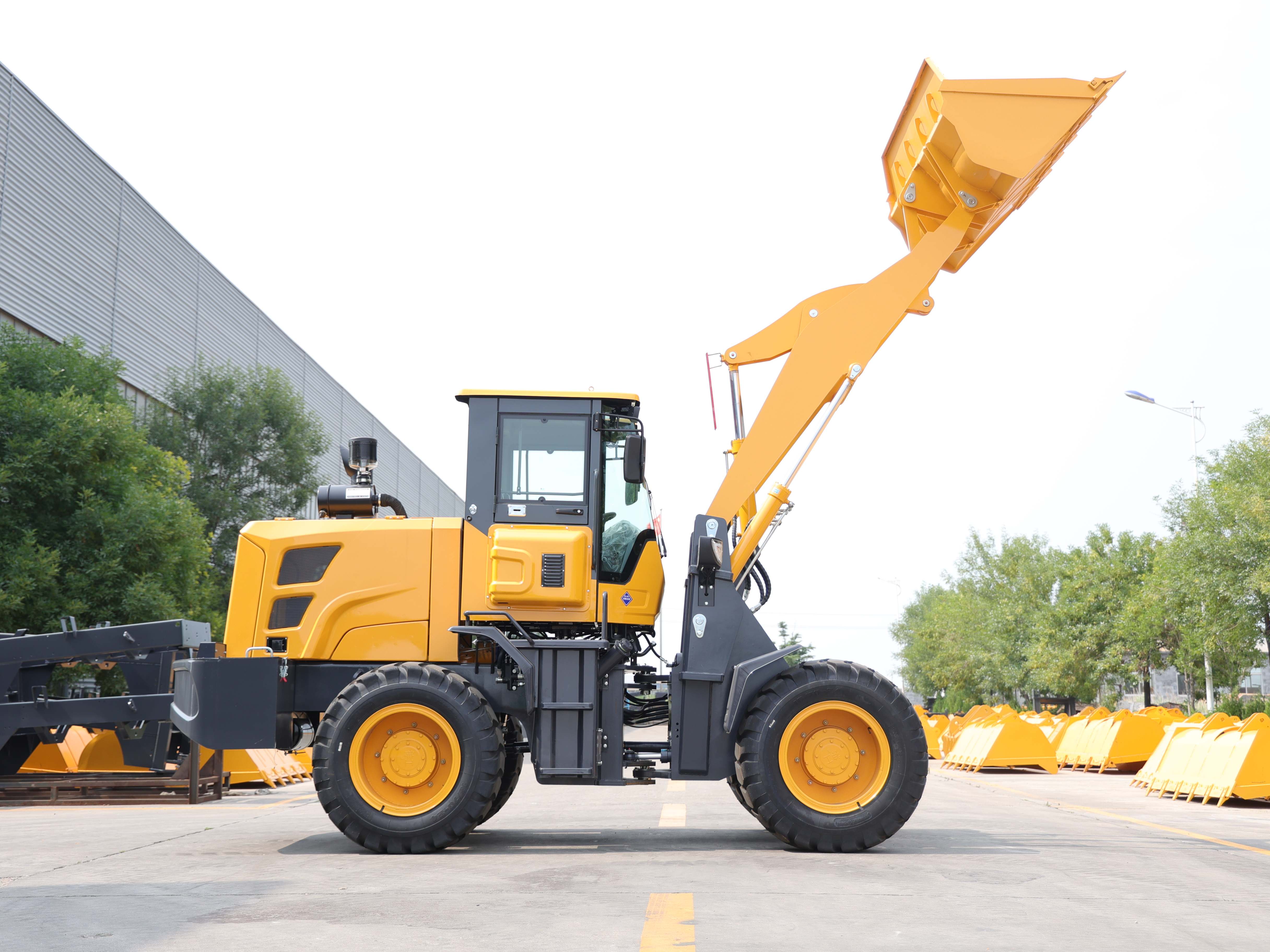

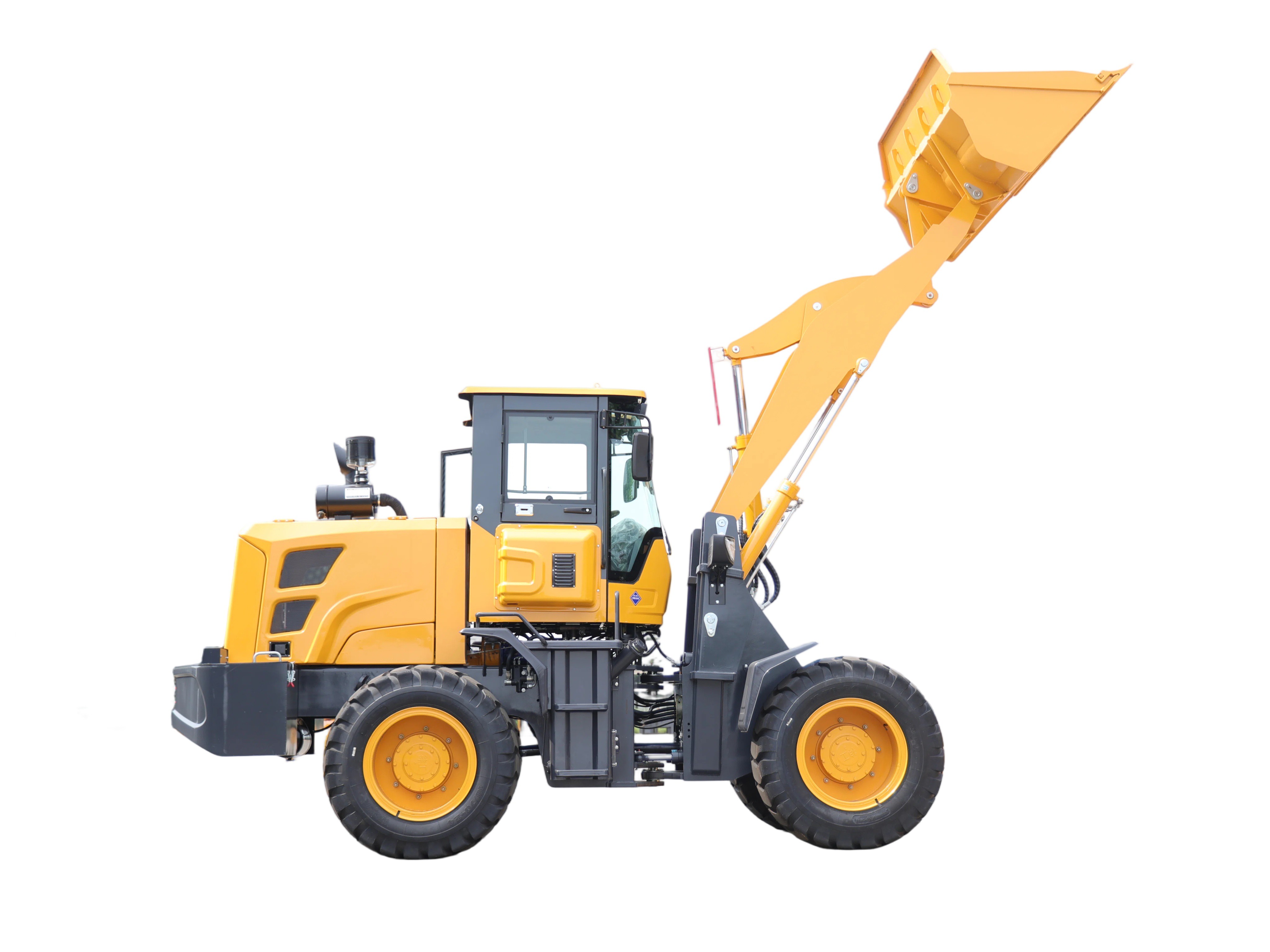

Detail Images
