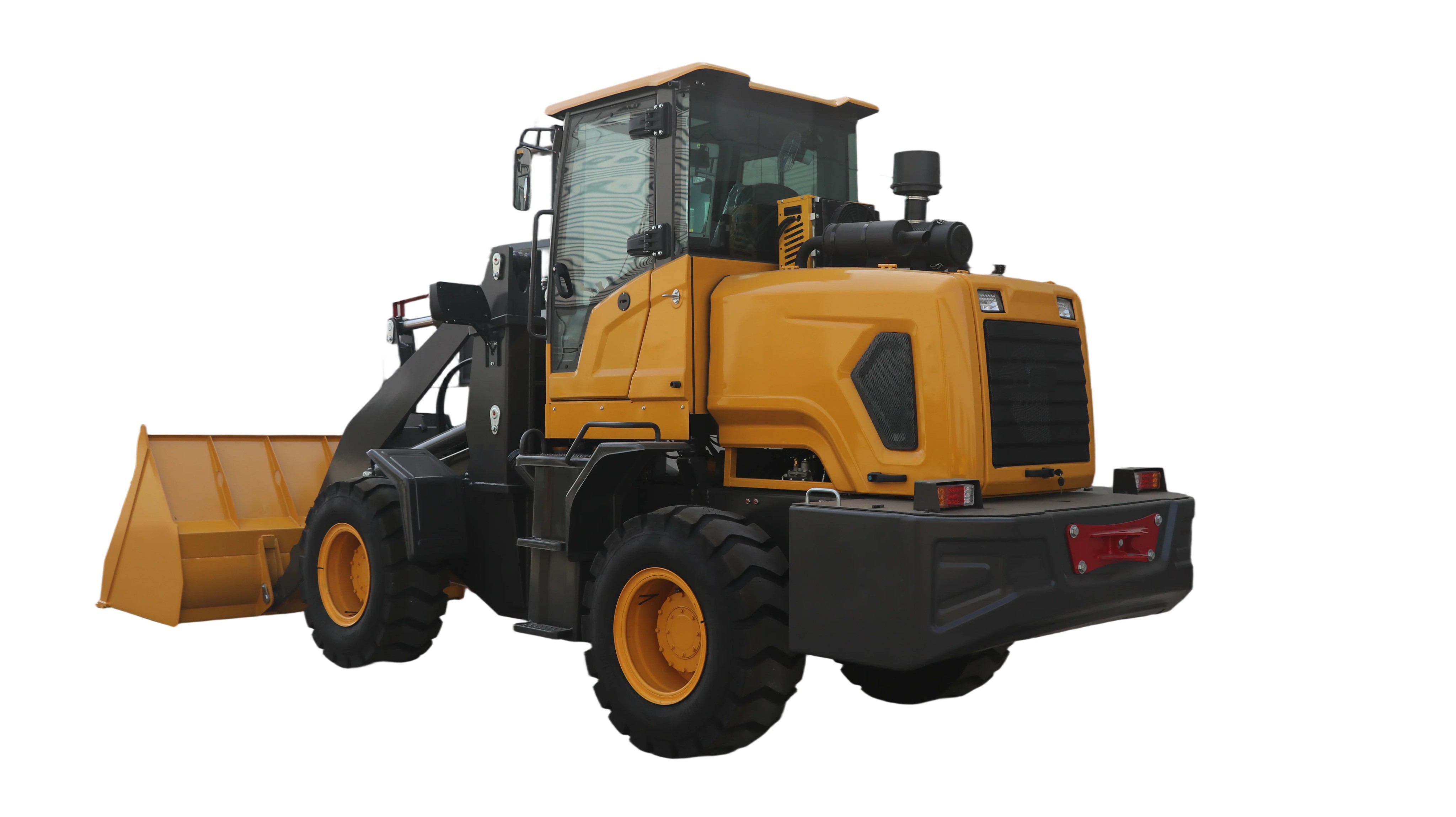

SDSG FC948 Wheel Loader

SDSG FC948 Wheel Loader

Product Model:FC948

The FC948 is a medium-to-large tonnage loading and hauling machine capable of integrated operations including high-capacity loading, efficient transport, high-level stacking, and short-to-medium distance hauling. It efficiently handles bulk materials such as earth and stone, sand and gravel, coal, grain, and construction materials. It is compatible with various attachments to enable extended functions like pushing, scraping, grabbing, and clamping.


Parameter Specifications

Parameter NameParameter Value
Length × Width × Height7500×2250×3000 mm
Wheelbase2620 mm
Track Width1550 mm
Dump Height4500 mm
Dump Reach1220 mm
Minimum Ground Clearance300 mm
Turning Radius4400 mm
Bucket Width2200 mm
Bucket Capacity1.5 m³
Rated Load Capacity2500 kg
Machine Weight6400 kg
Standard Tires16/70-20
Standard AxleMedium Wheel-Side Reduction Axle
Engine Brand/ModelYunnei YN38GB
Rated Power76 kW
Rated Speed2400 r/min
Engine TypeInline four-stroke
Torque Converter Size280
Torque Converter TypeHydrodynamic shifting
Travel Speed35 km/h
GearsTwo forward, two reverse
Fuel Tank Capacity80 L
Service BrakeAir brake
Parking BrakeMechanical hand brake


Main Functions

The FC948 is a medium-to-large tonnage loading and hauling machine capable of integrated operations including high-capacity loading, efficient transport, high-level stacking, and short-to-medium distance hauling. It efficiently handles bulk materials such as earth and stone, sand and gravel, coal, grain, and construction materials. It is compatible with various attachments to enable extended functions like pushing, scraping, grabbing, and clamping.


Application Scenarios

Widely applicable to large construction sites, mining operations, ports and terminals, grain storage facilities, farms and ranches, municipal engineering projects, logistics yards, and construction material mixing plants. It is particularly well-suited for material loading/unloading, high-level dumping, and site leveling tasks in medium-to-large scale projects.


Core Advantages

1. Powerful Performance: Equipped with a Yunnei YN38GB engine delivering a rated power of 76kW. It offers superior power output and greater power reserves compared to similar models, ensuring stable and reliable performance during high-load and heavy-duty operations.

2. Robust Structure: Features a widened and weighted front frame combined with a one-piece formed rear frame, resulting in superior structural stability and strength. With an operating weight of 6,400kg, the machine offers excellent torsional and flexural rigidity, ensuring stability without tipping or rolling over during heavy-duty work, and providing a longer service life.

3. Easy Maintenance: Designed with an open-style engine hood, providing ample space for daily inspections, routine maintenance, and repairs, thereby effectively reducing maintenance time and downtime costs.

4. Operator Comfort: The new luxury cab is equipped with a comfortable seat, air conditioning, and an audio system. It offers a wide field of view and spacious operating area, minimizing fatigue during long shifts.

5. Efficient Drivetrain: Features a Model 280 torque converter paired with a 2-forward/2-reverse gear transmission, enabling travel speeds of up to 35 km/h. An air braking system ensures operational safety, while a hub-reduction axle delivers superior traction. A large 1.5 m³ bucket combined with a 2,500 kg rated load significantly boosts operational efficiency.

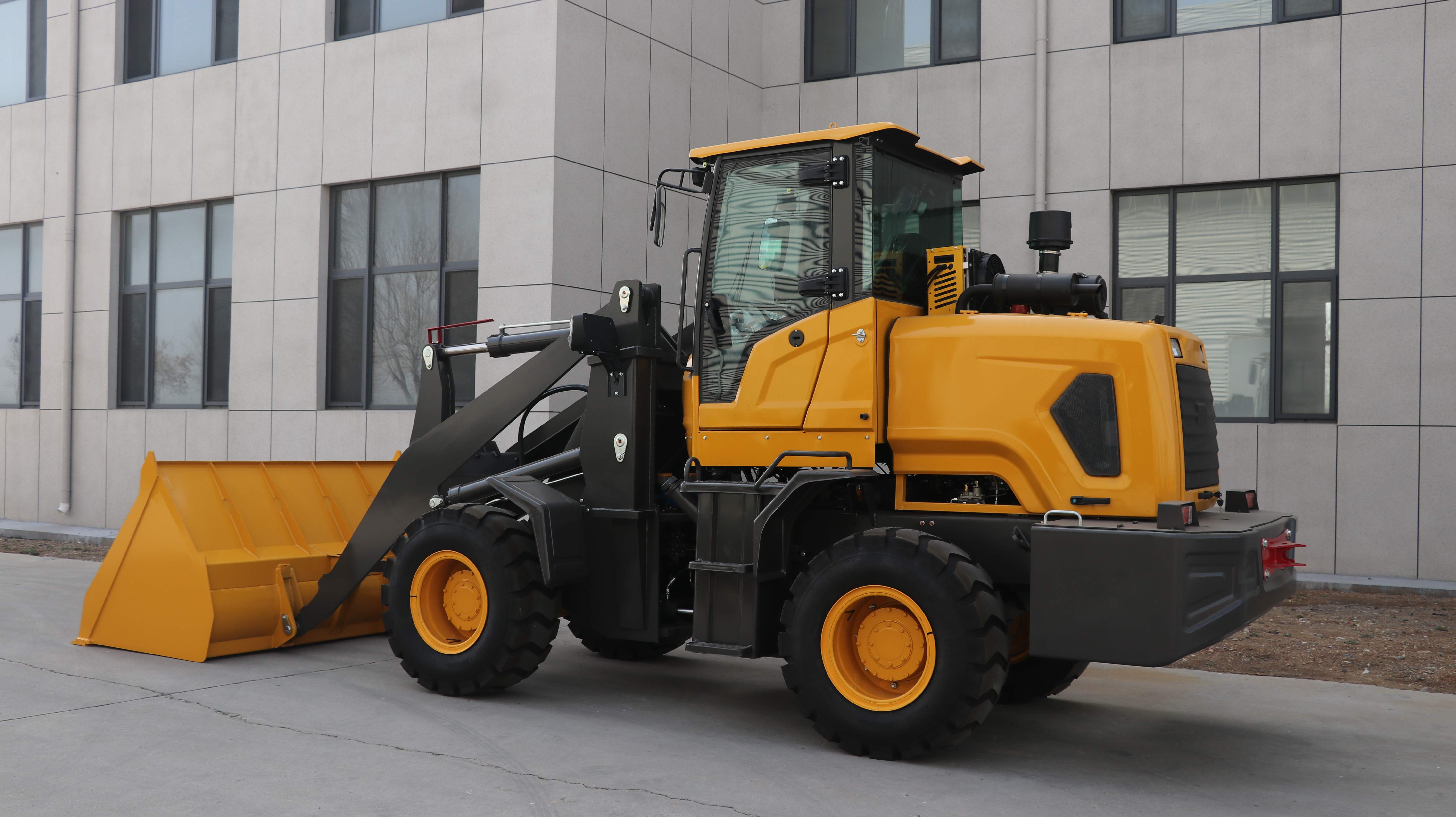

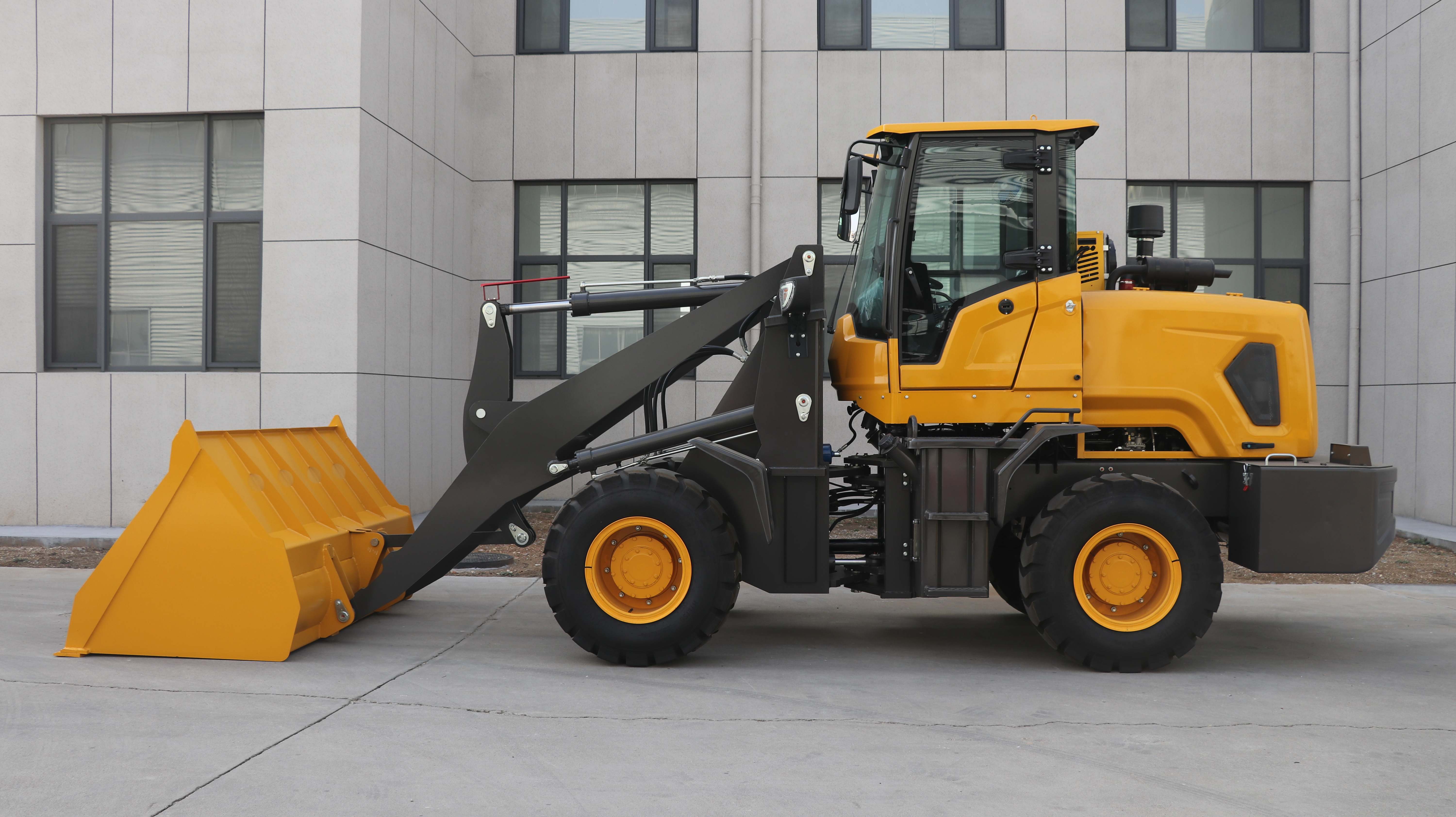

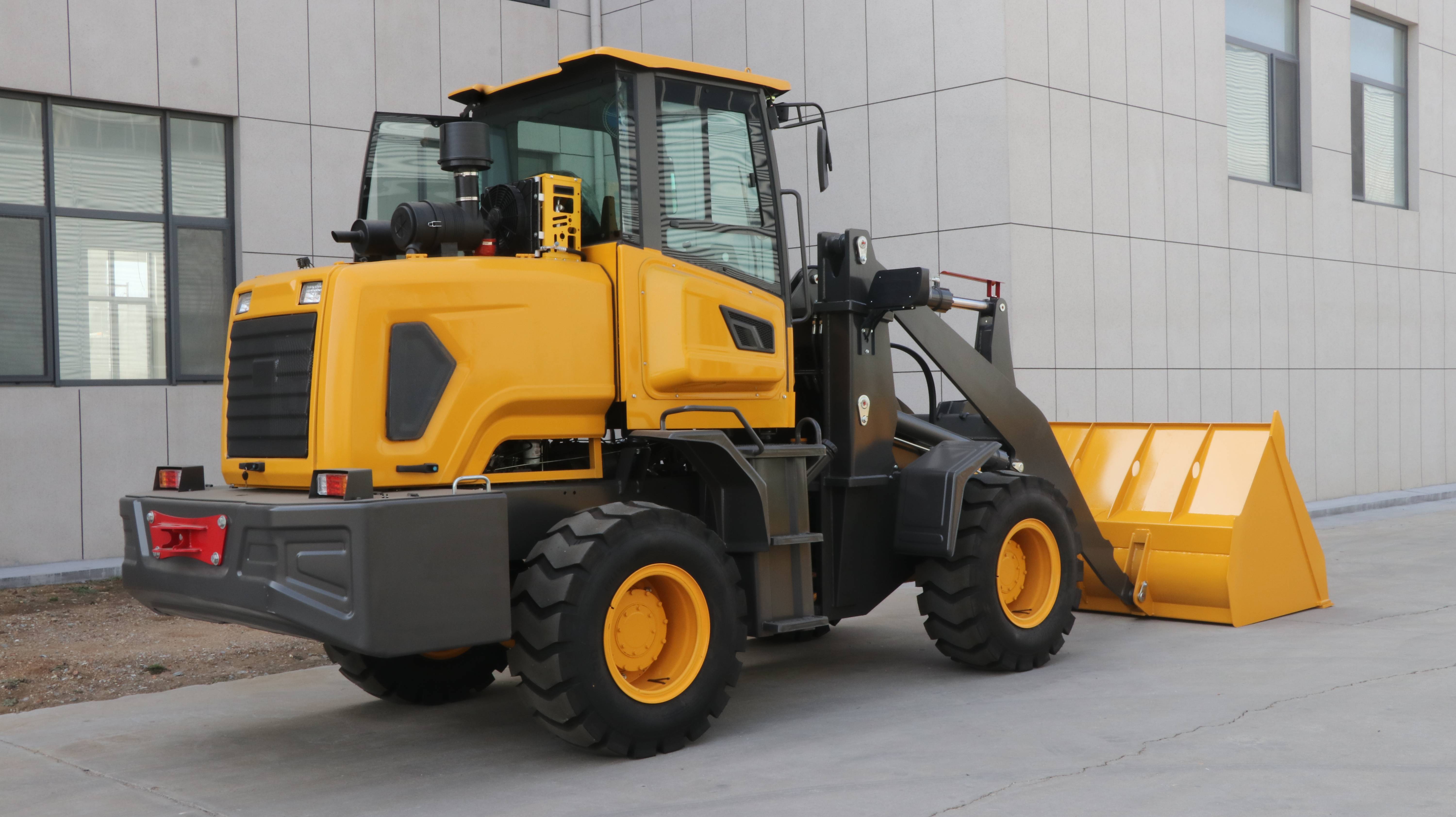

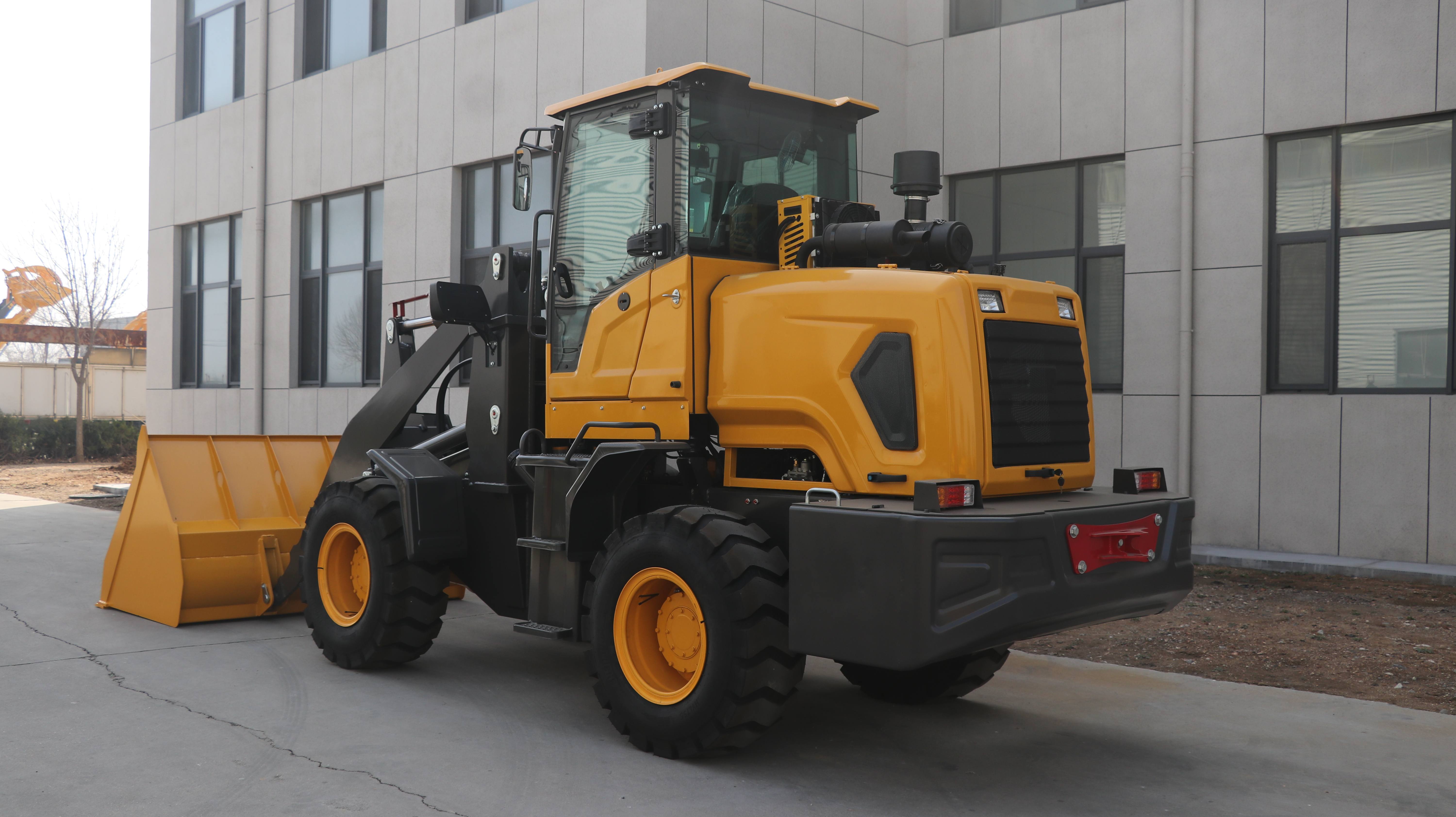

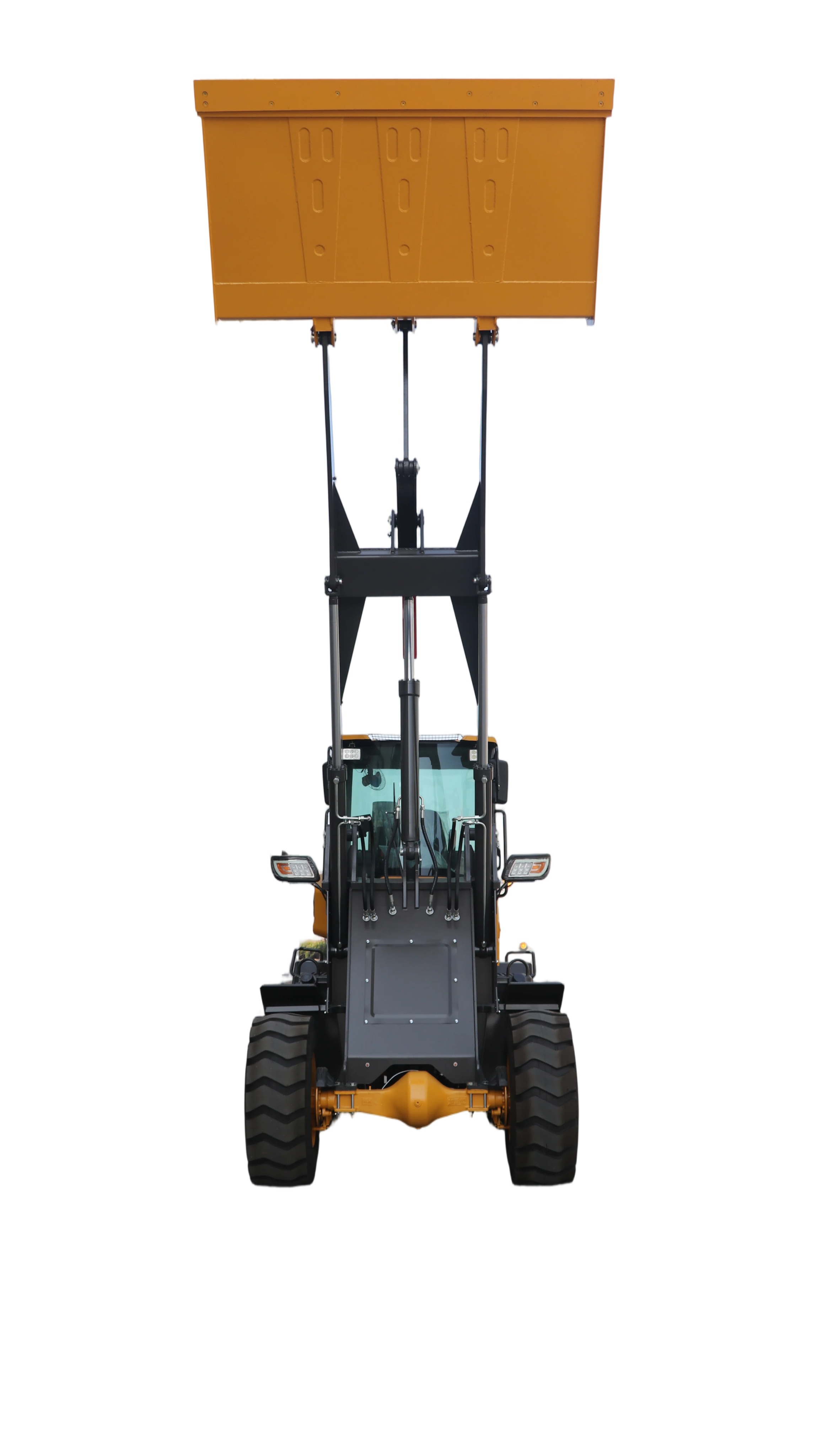

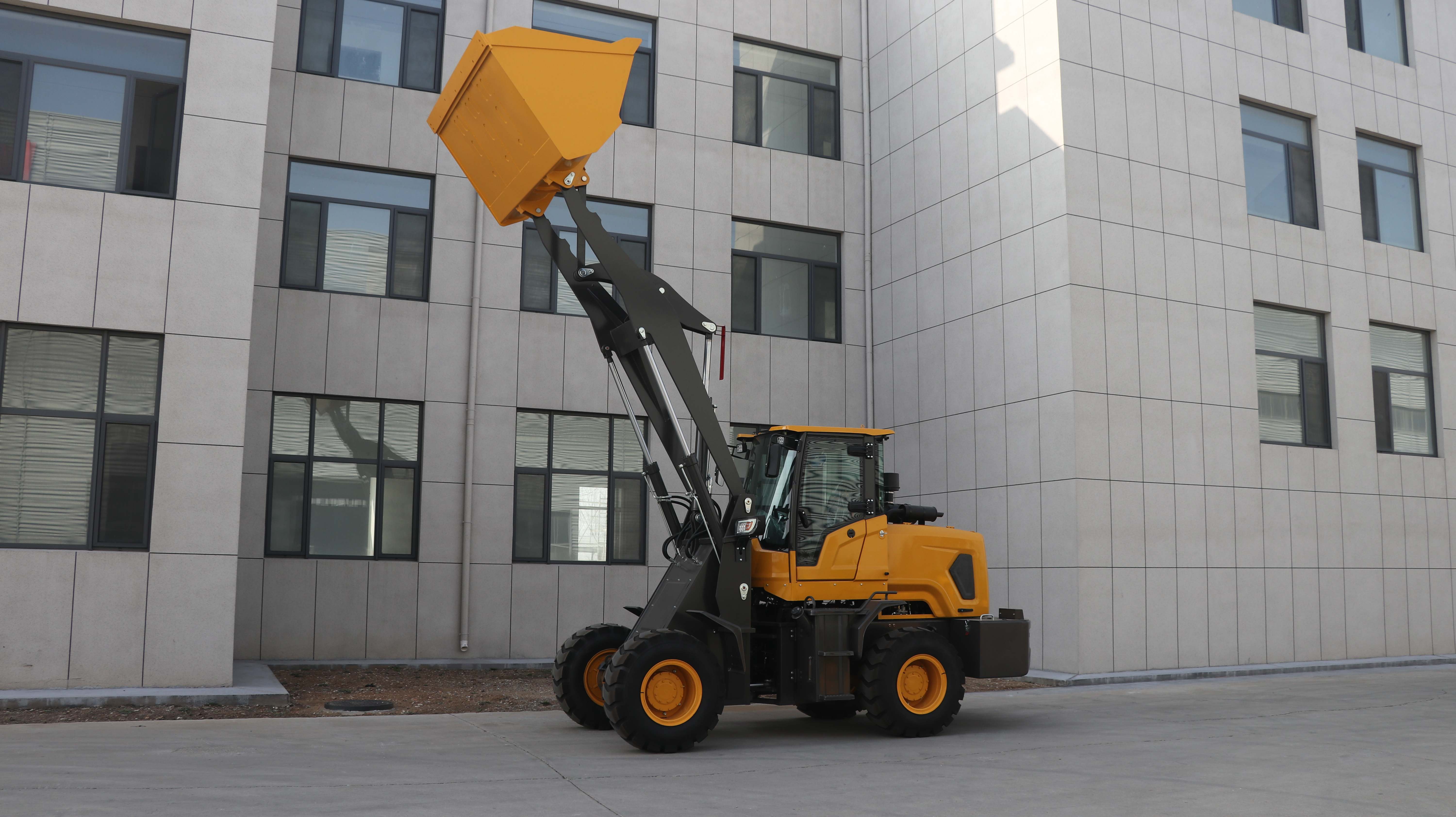

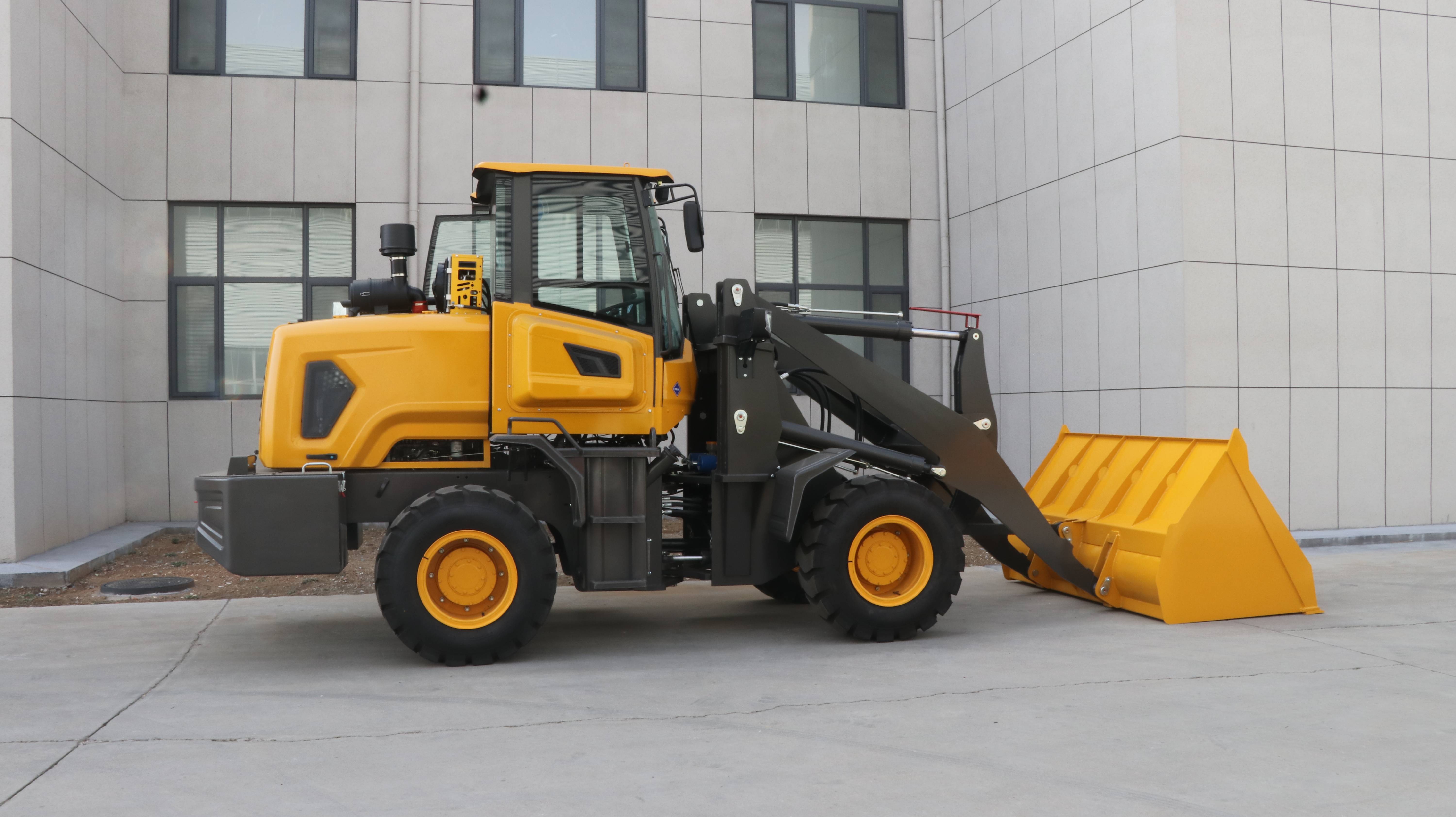

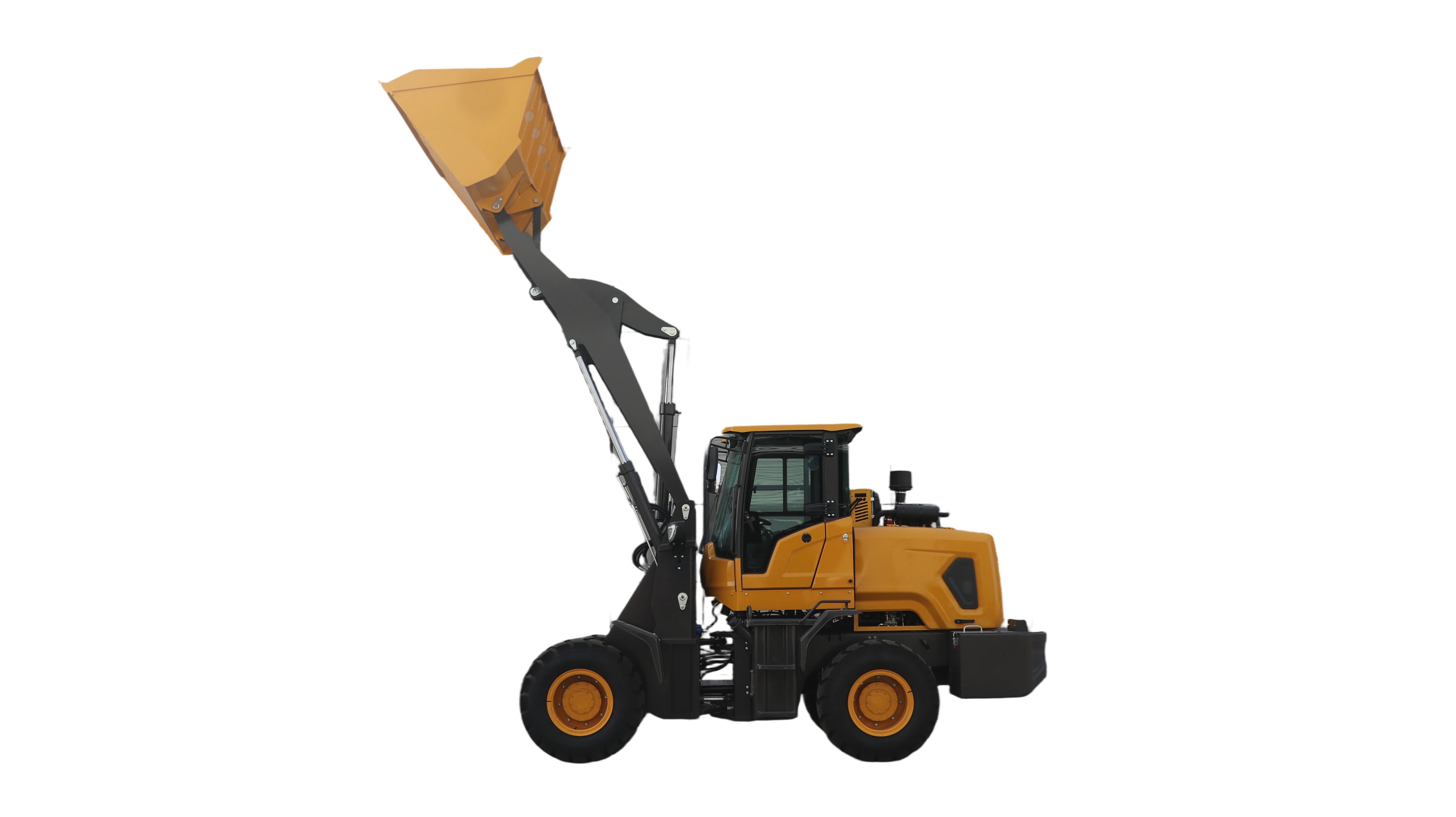

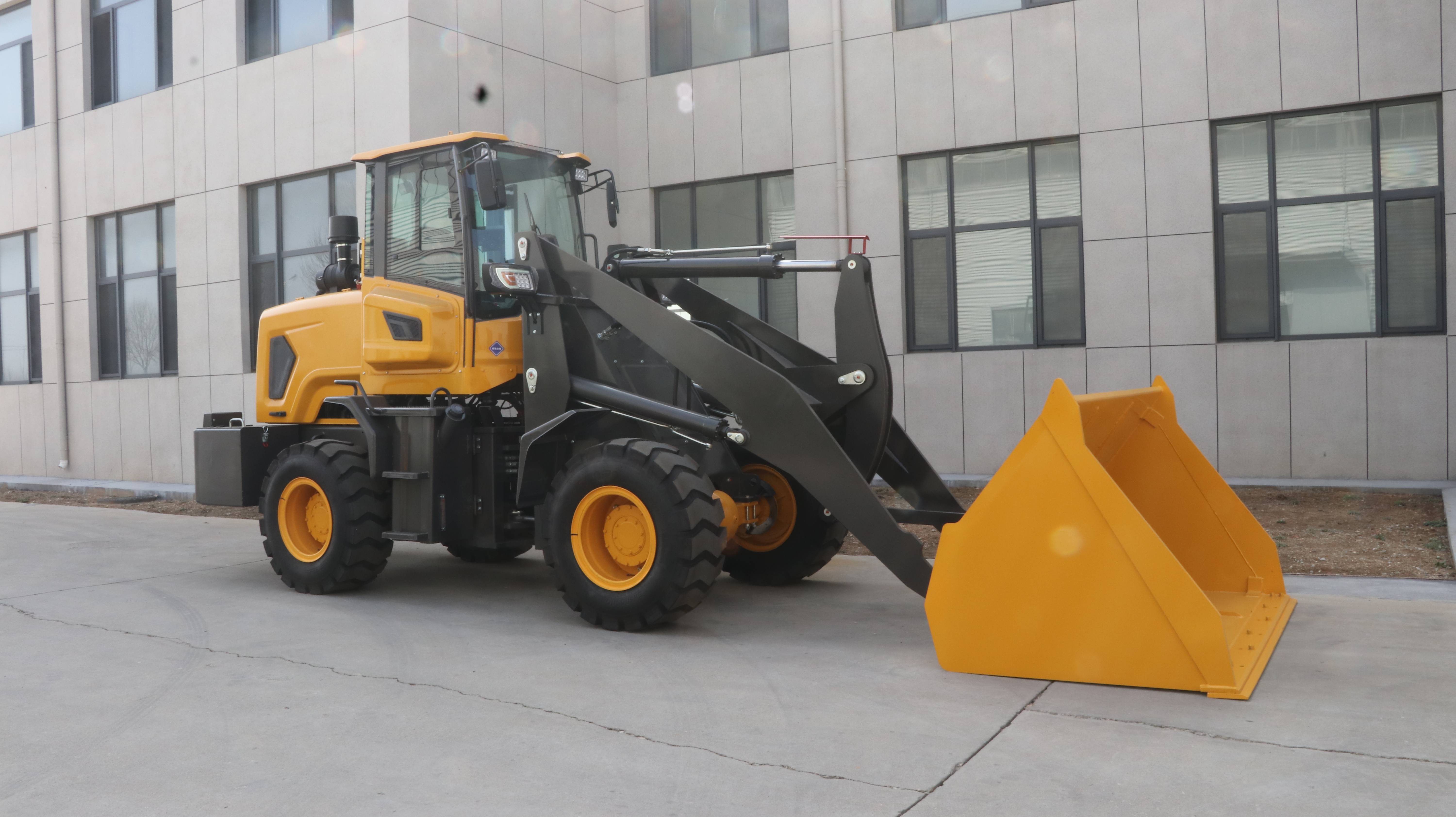

Detail Images
