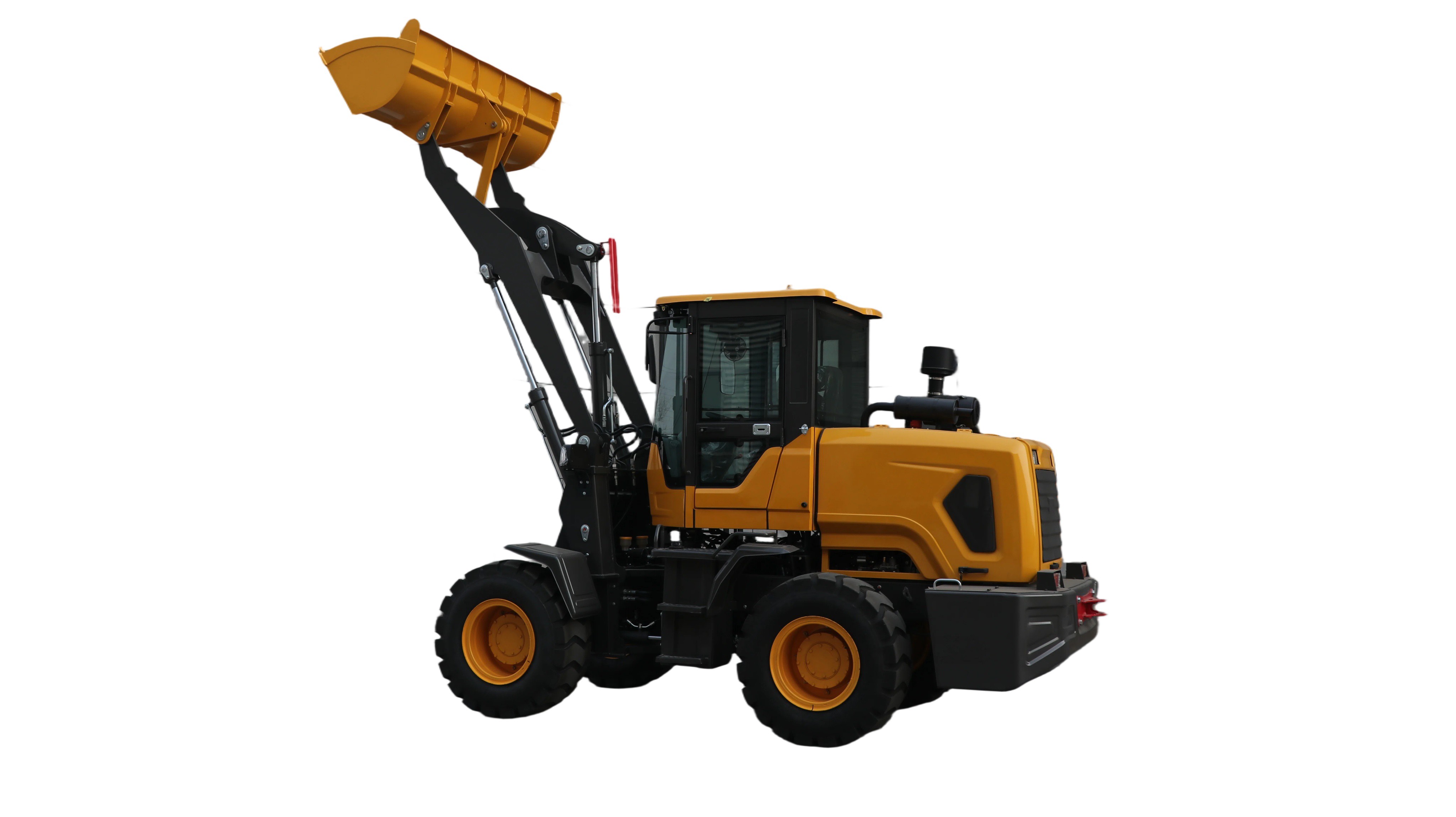

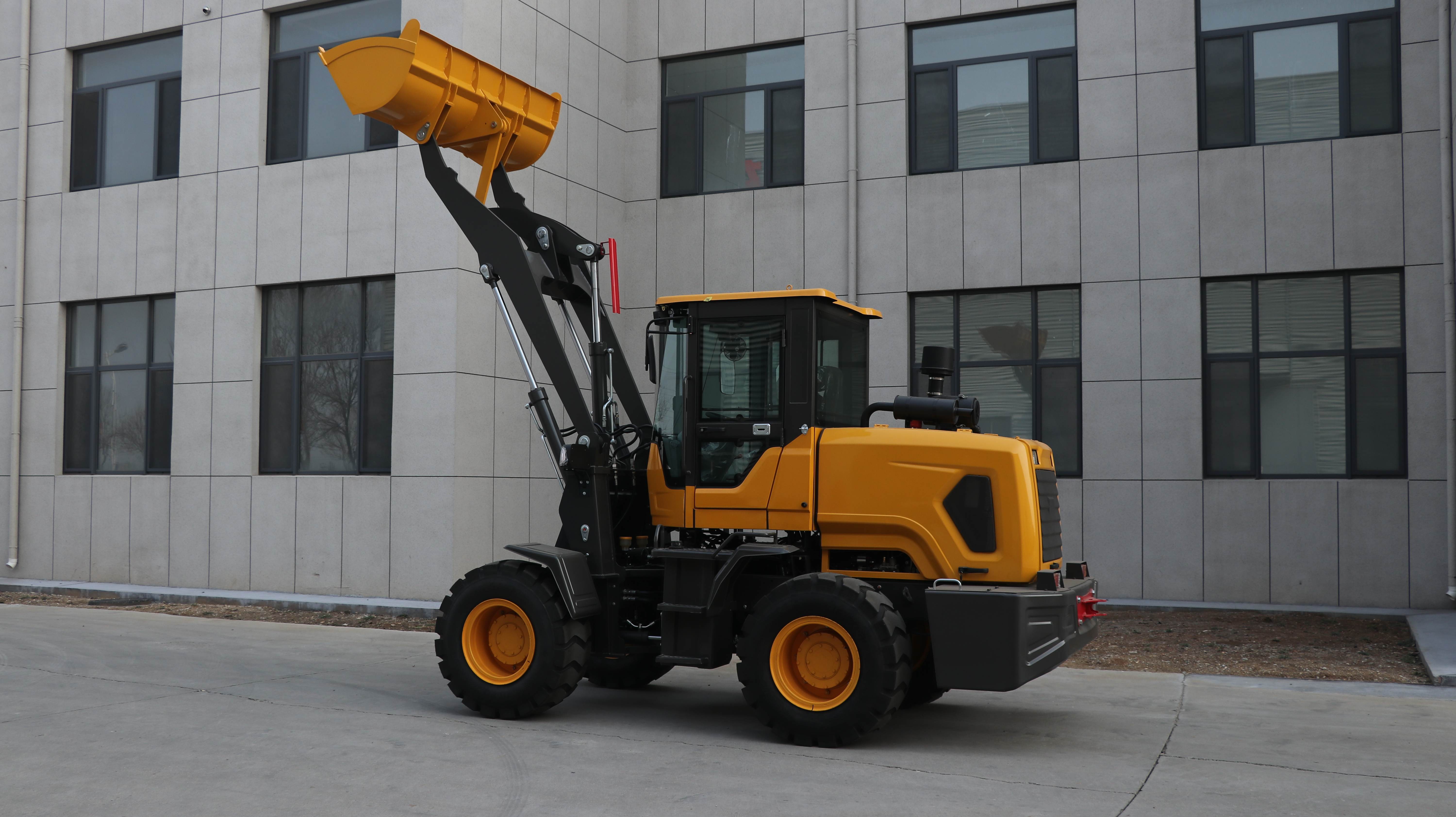

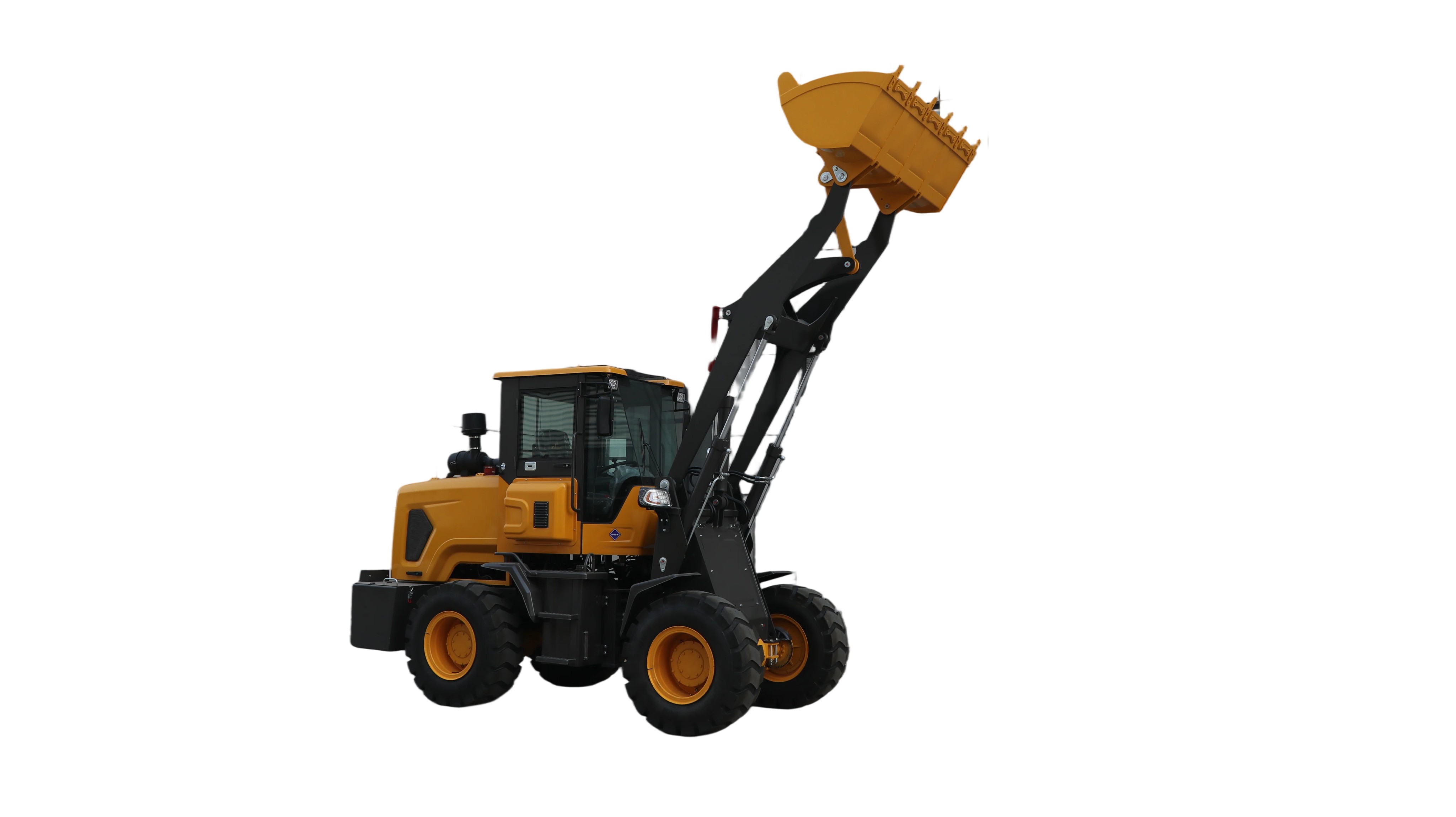

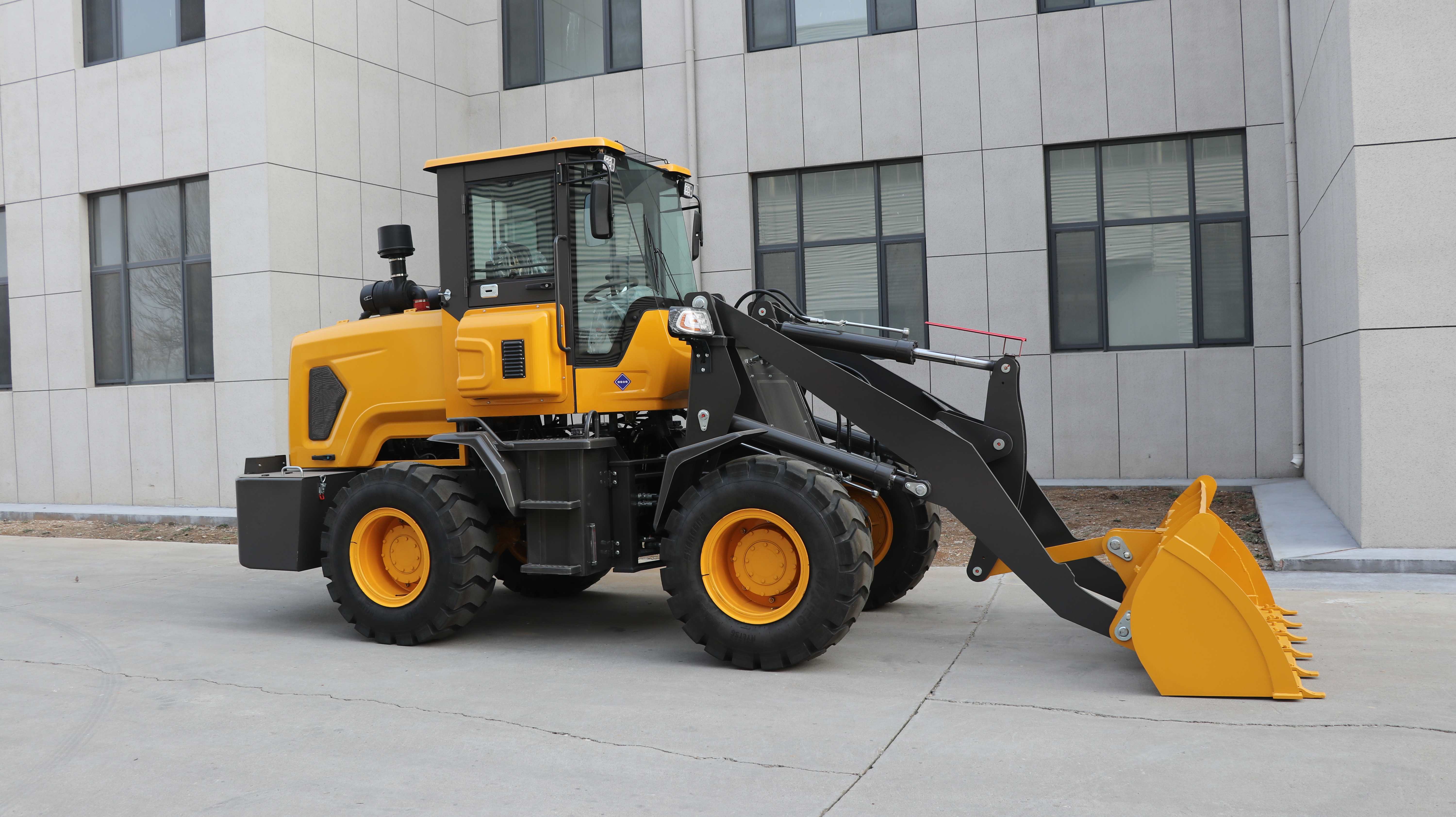

SDSG FC946 Wheel Loader

SDSG FC946 Wheel Loader

Product Model:FC946

  • Equipped with a Yunnei YN38GB engine (rated power: 76 kW; rated speed: 2400 r/min), delivering strong power output and ample power reserves;

  • Features a powershift torque converter and a 2-forward/2-reverse gear transmission, achieving a top travel speed of 35 km/h for efficient and flexible operation;

  • Bucket capacity of 1 m³ and rated load of 2000 kg ensure strong loading capabilities and rapid loading/unloading speeds.


Parameter Specifications

Parameter NameParameter Value
Overall Dimensions (Length × Width × Height)6400×2000×2850mm
Wheelbase2300mm
Track Width1580mm
Dump Height3500mm
Dump Reach1000mm
Minimum Ground Clearance310mm
Turning Radius3200mm
Bucket Width2000mm
Bucket Capacity1m³
Rated Load Capacity2000kg
Machine Weight4750kg
Standard Tires16/70-20
Standard AxleMedium Wheel-Side Reduction Axle
Engine Brand/ModelYunnei YN38GB
Rated Power76kw
Rated Speed2400r/min
Engine TypeInline Four-Stroke
Torque Converter Size280
Torque Converter TypeHydraulic Gear Shifting
Travel Speed35km/h
Gears2 Forward and 2 Reverse Gears
Fuel Tank Capacity70L
Service BrakeAir Brake
Parking BrakeMechanical Hand Brake


Main Functions

  • Equipped with a Yunnei YN38GB engine (rated power: 76 kW; rated speed: 2400 r/min), delivering strong power output and ample power reserves;

  • Features a powershift torque converter and a 2-forward/2-reverse gear transmission, achieving a top travel speed of 35 km/h for efficient and flexible operation;

  • Bucket capacity of 1 m³ and rated load of 2000 kg ensure strong loading capabilities and rapid loading/unloading speeds.


Application Scenarios

  • Widely suitable for short-to-medium distance loading and hauling tasks, including port operations, material handling, earthwork transport, batching plant feeding, and operations at warehouses or construction sites;

  • Equipped with standard 16/70-20 tires and mid-sized wheel-end reduction axles, balancing stable load-bearing with excellent off-road mobility to adapt to various complex terrains.

Core Advantages

Powerful Performance: Equipped with a branded engine, ensuring ample power reserves and stable output;

Robust Structure: Features a widened and reinforced front frame and a unitary-formed rear frame, resulting in superior structural stability and durability;

Easy Maintenance: Open-style engine hood design facilitates convenient daily maintenance and inspections;

Operator Comfort: The new-style cab includes a luxury seat, air conditioning, and an audio system, offering a wide field of view and a comfortable driving experience;

Reliable Braking: Combines pneumatic service brakes with a mechanical parking brake for dependable stopping performance.

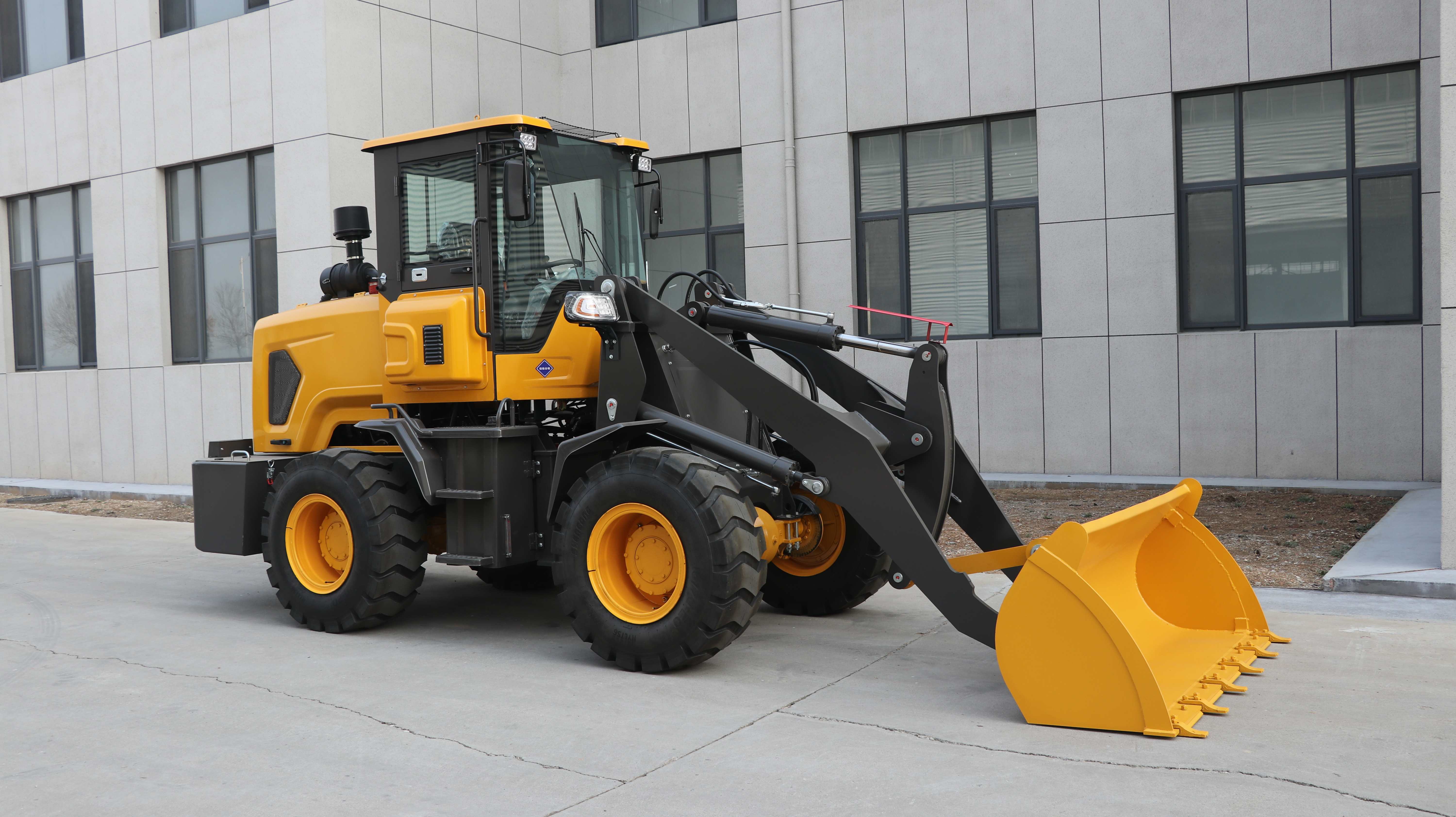

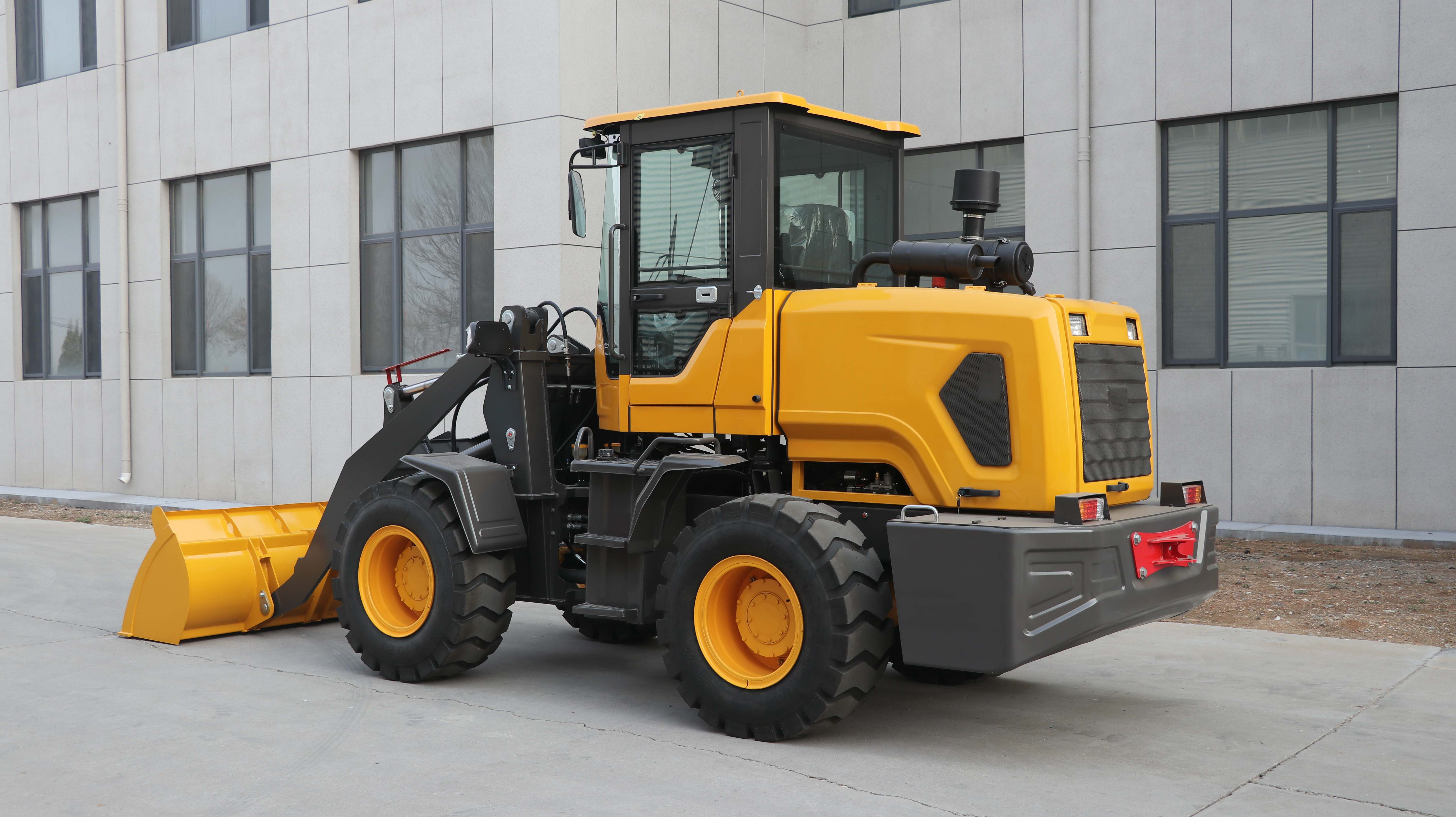

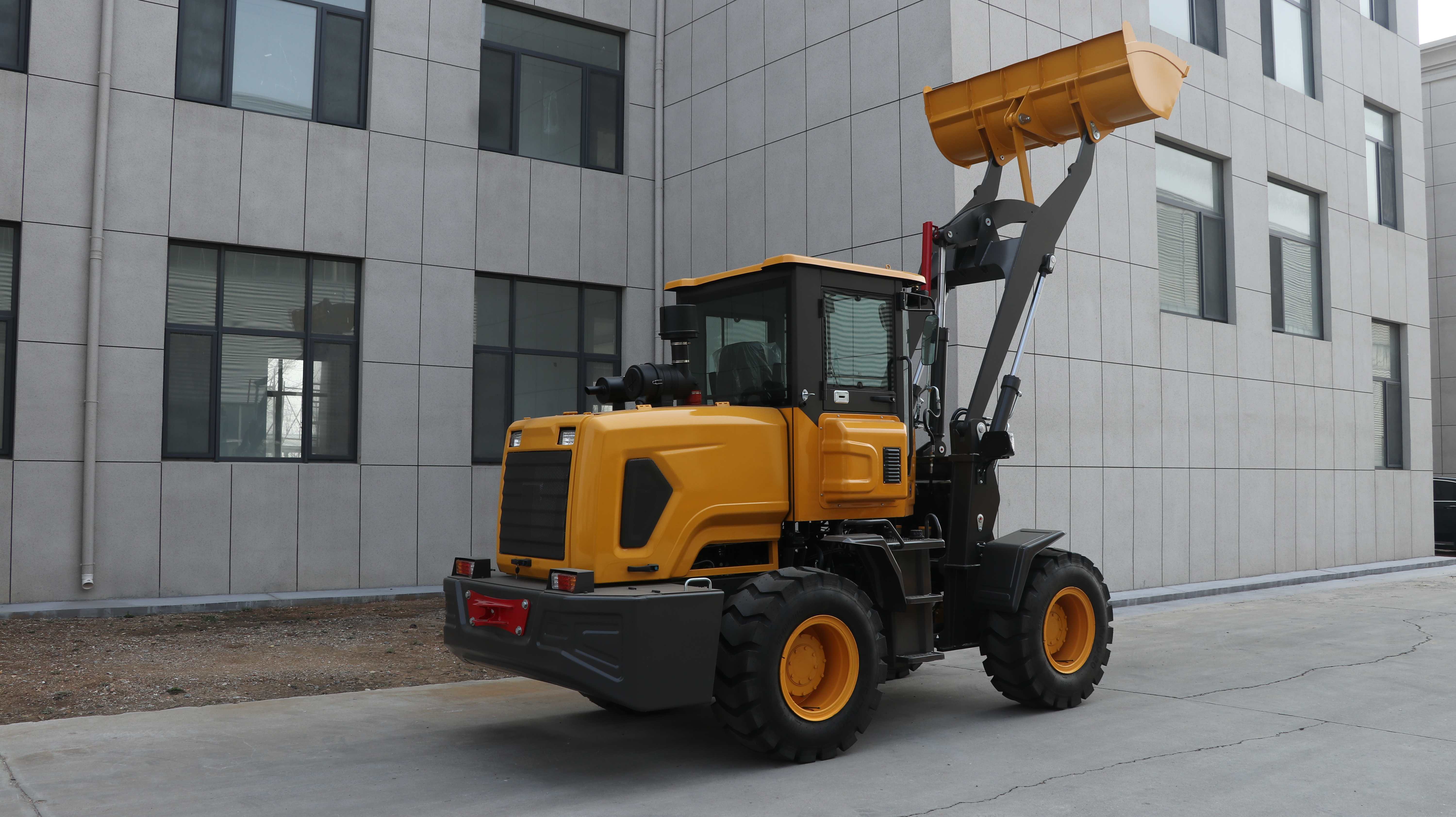

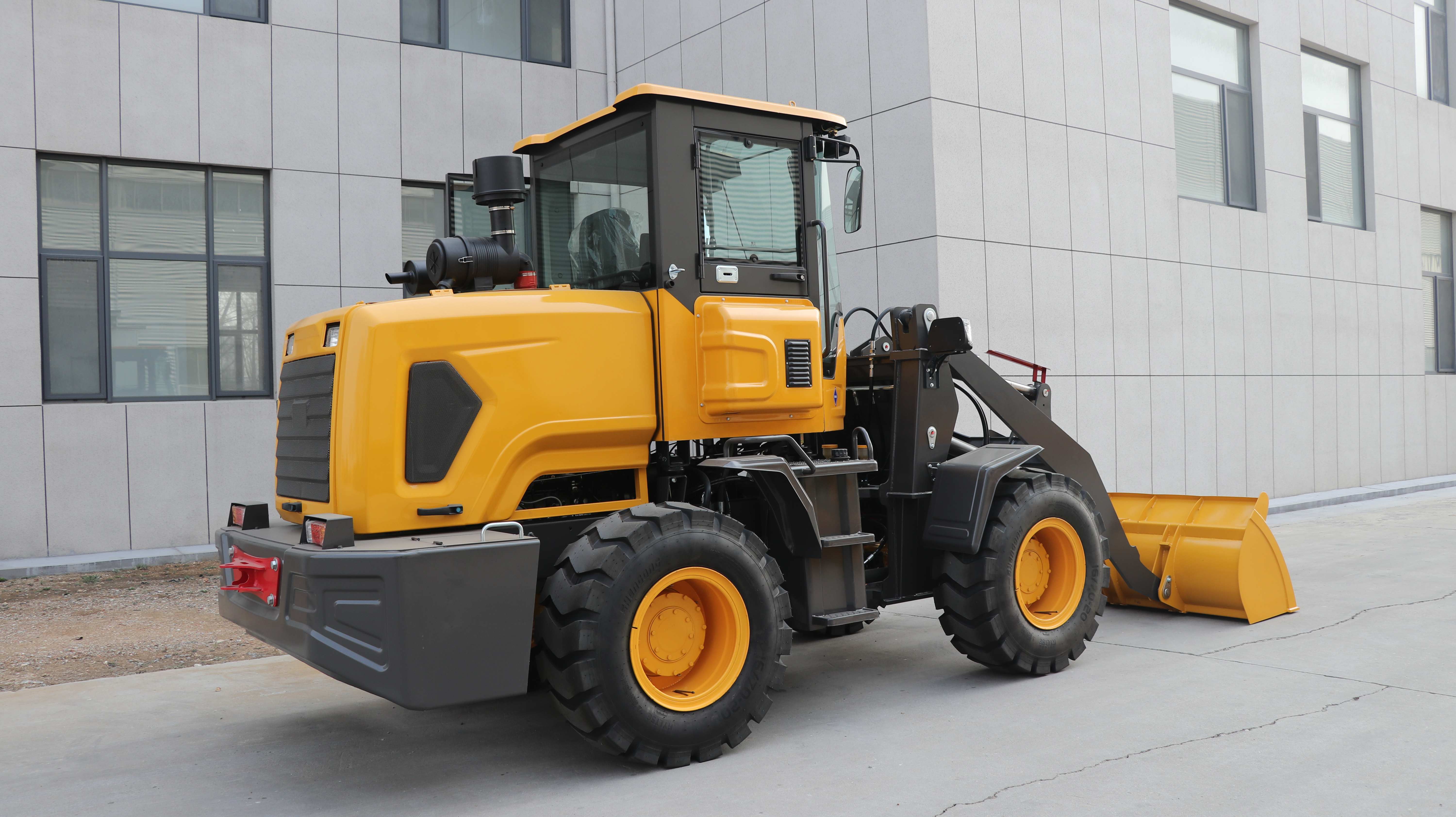

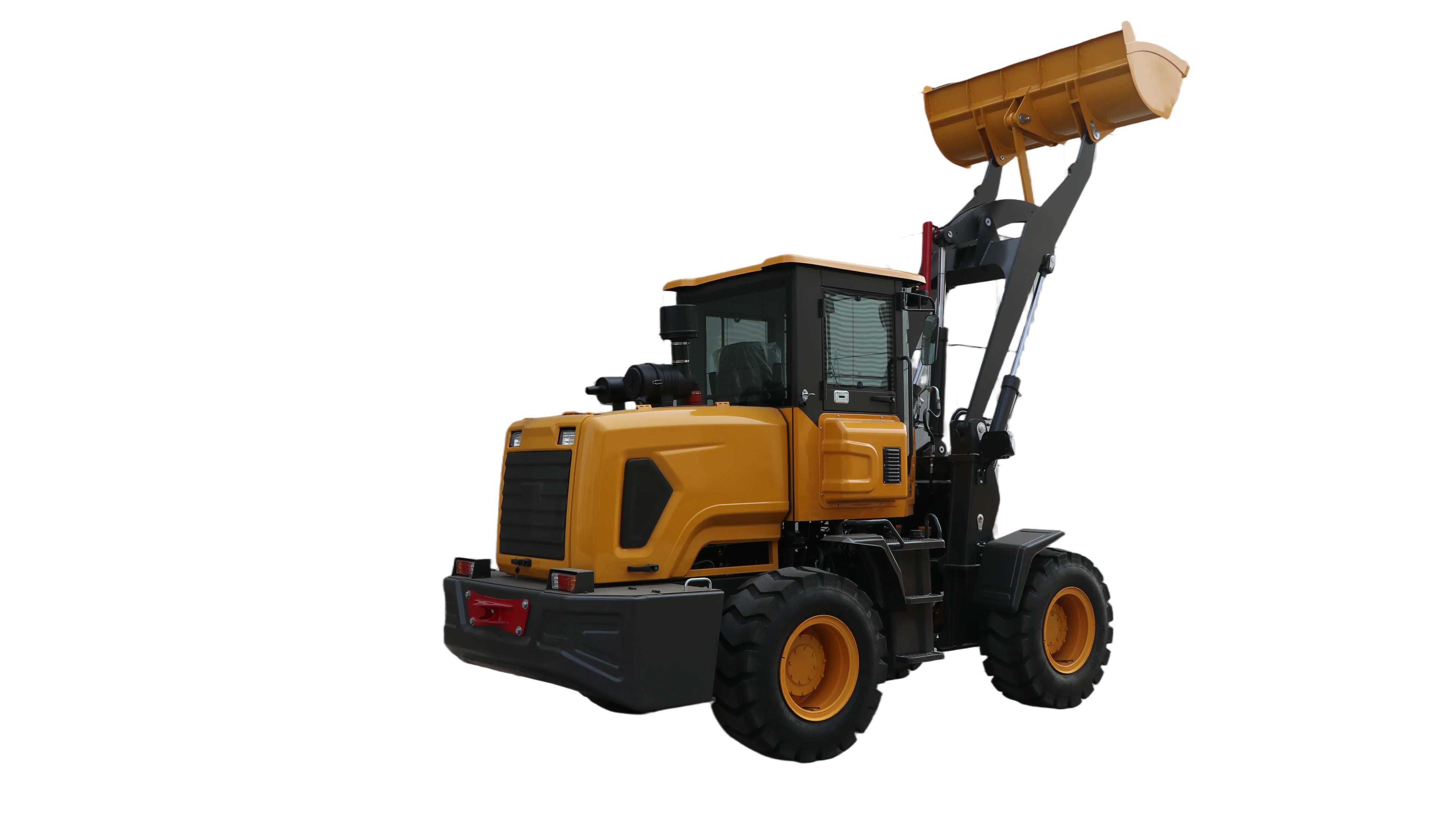

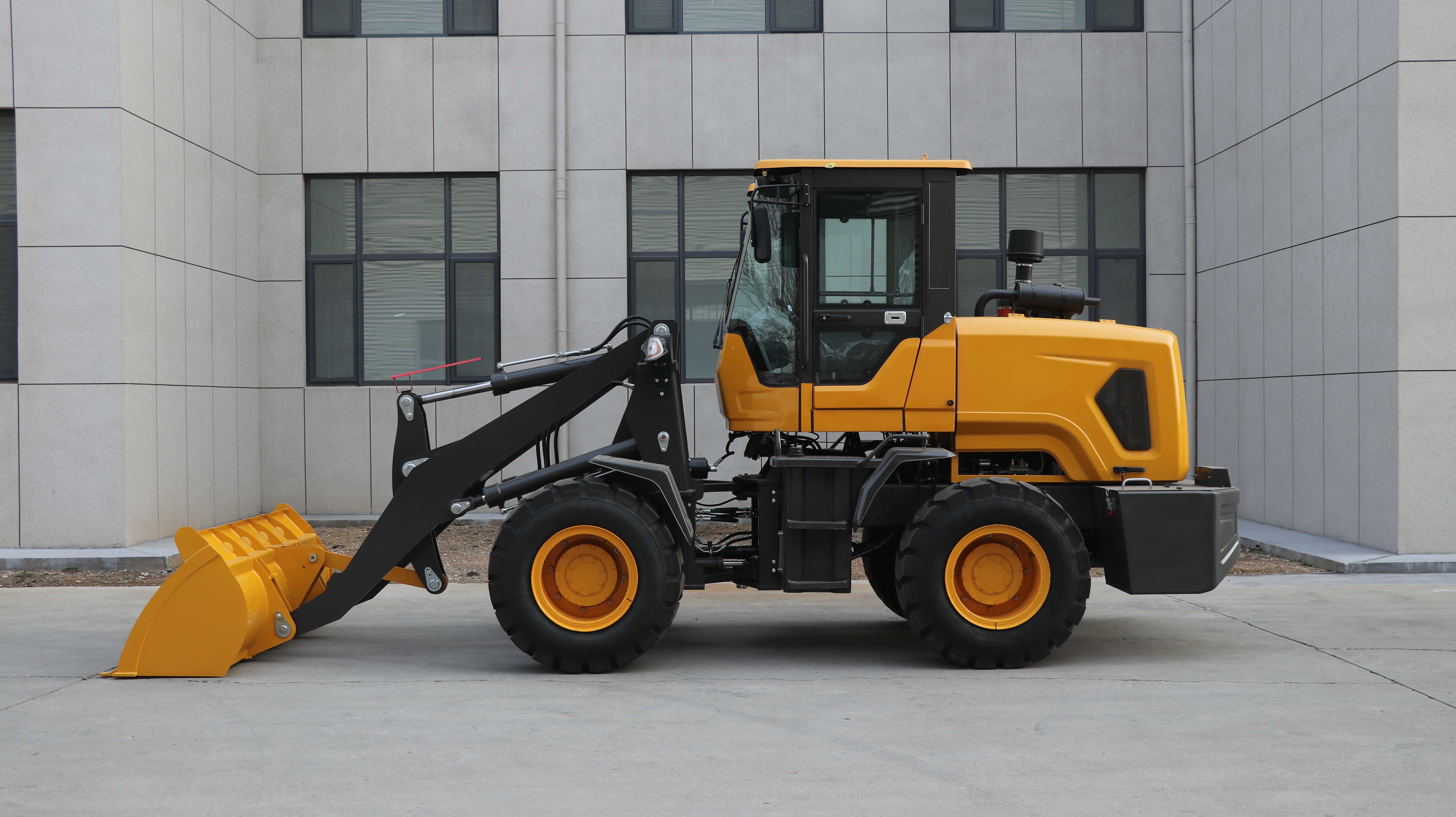

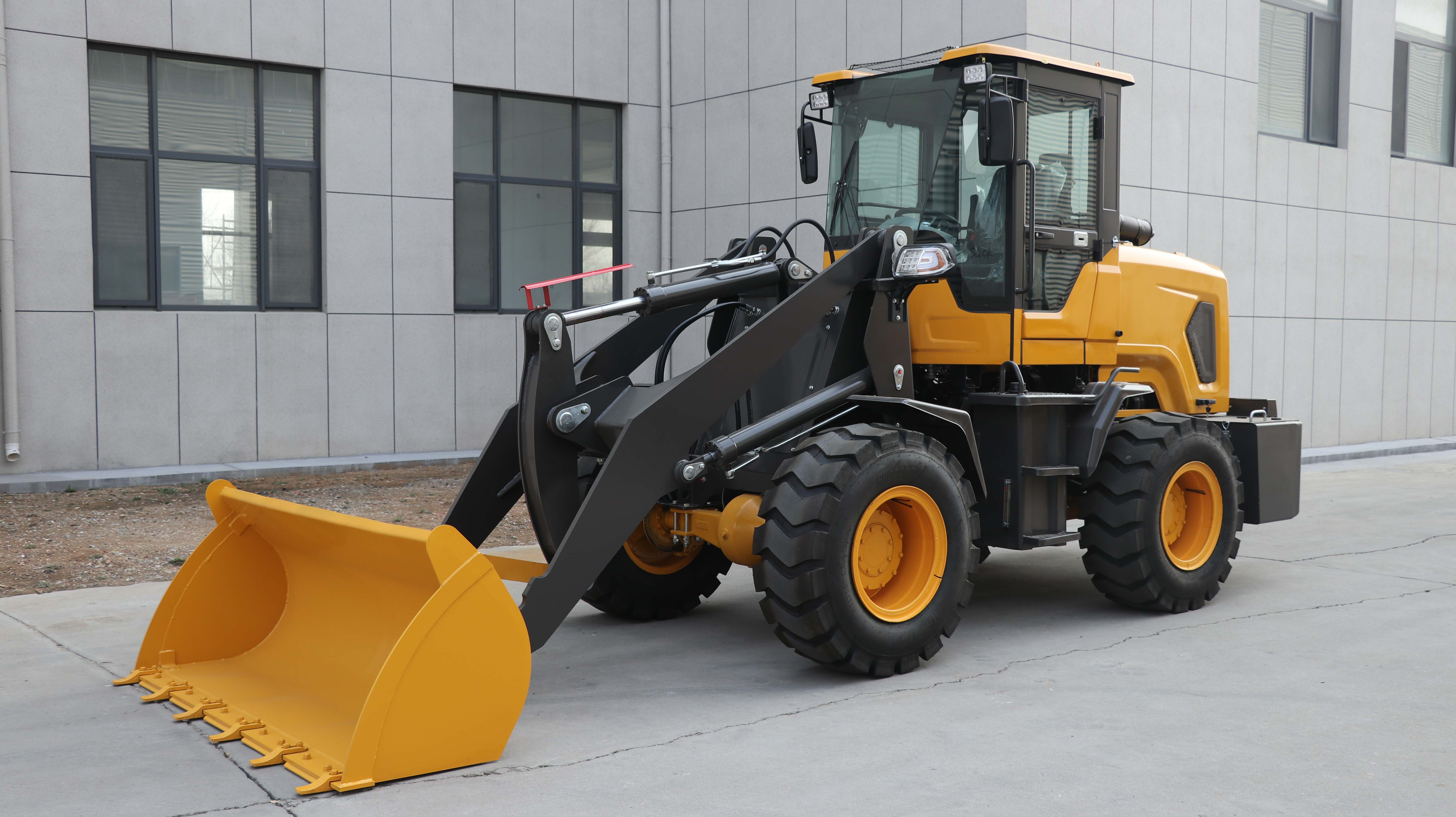

Detail Images
