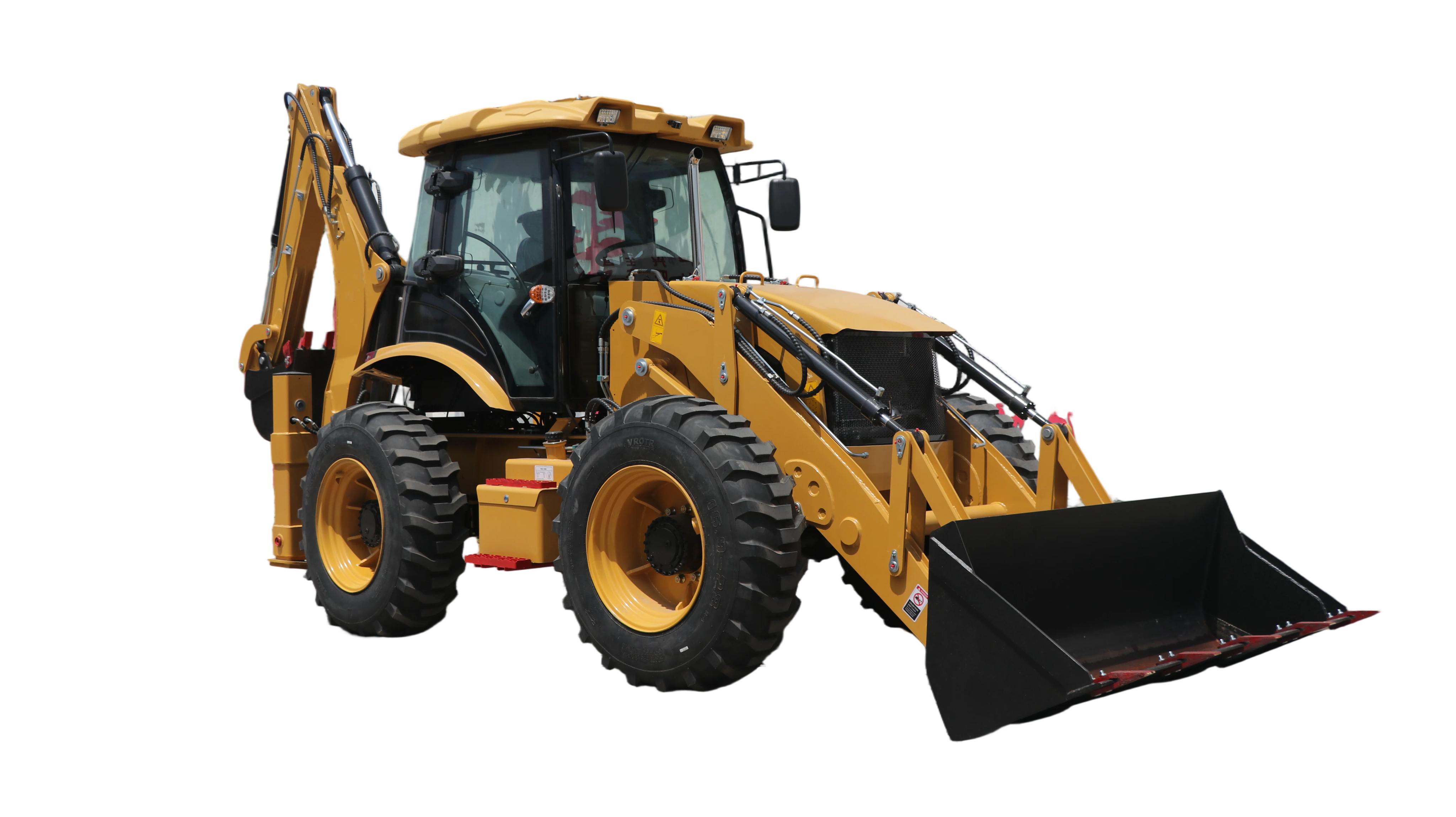

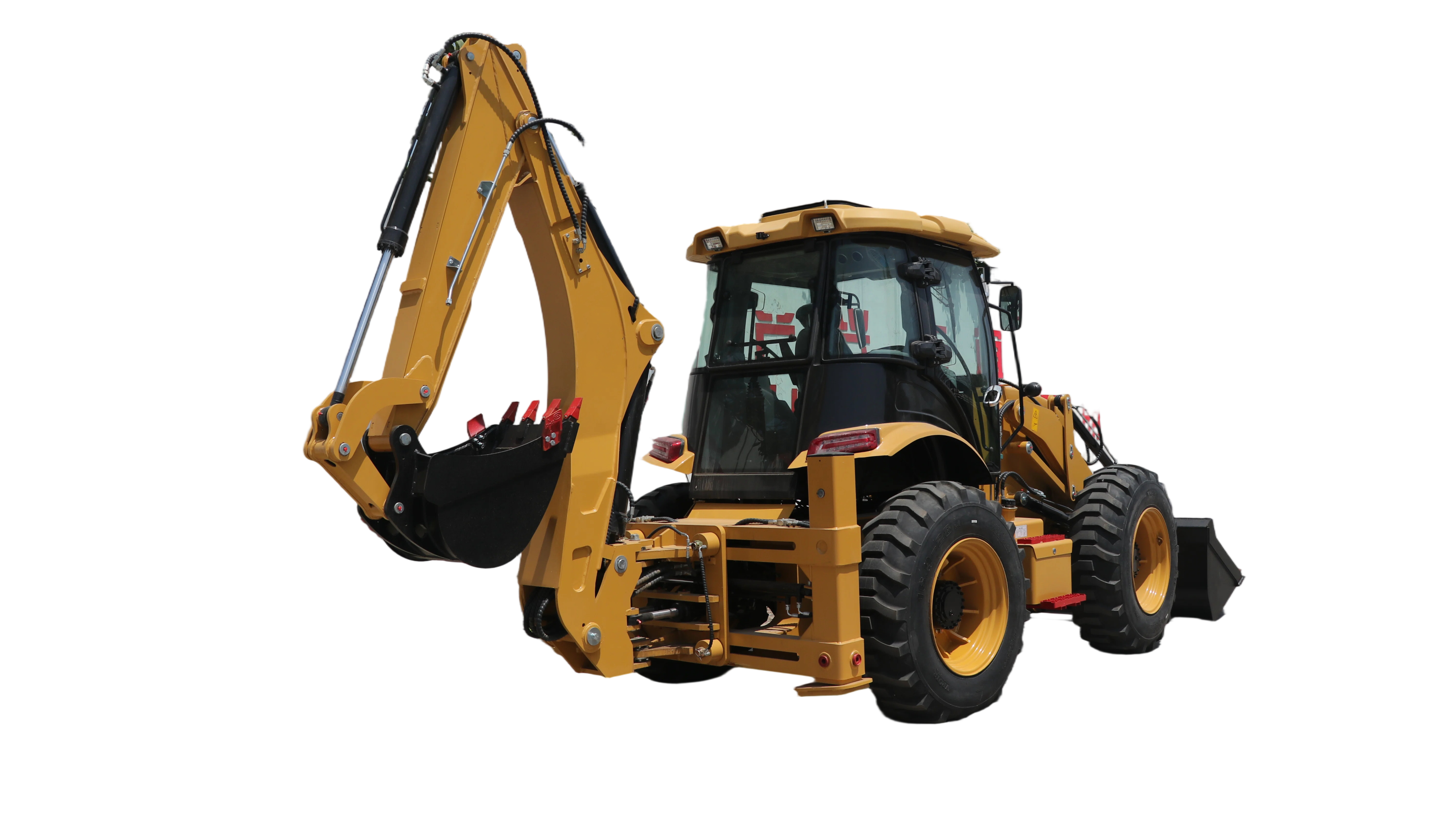

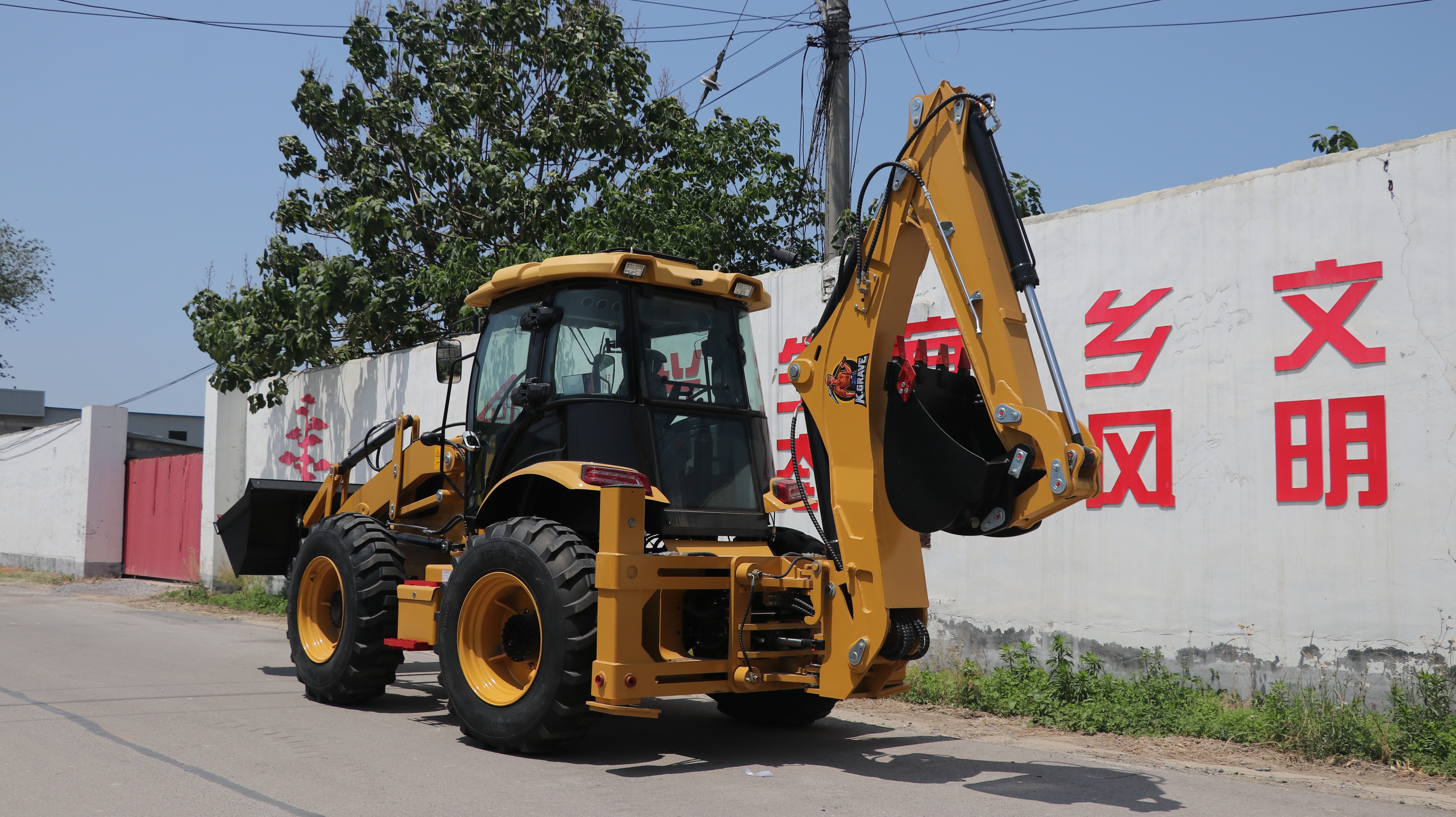

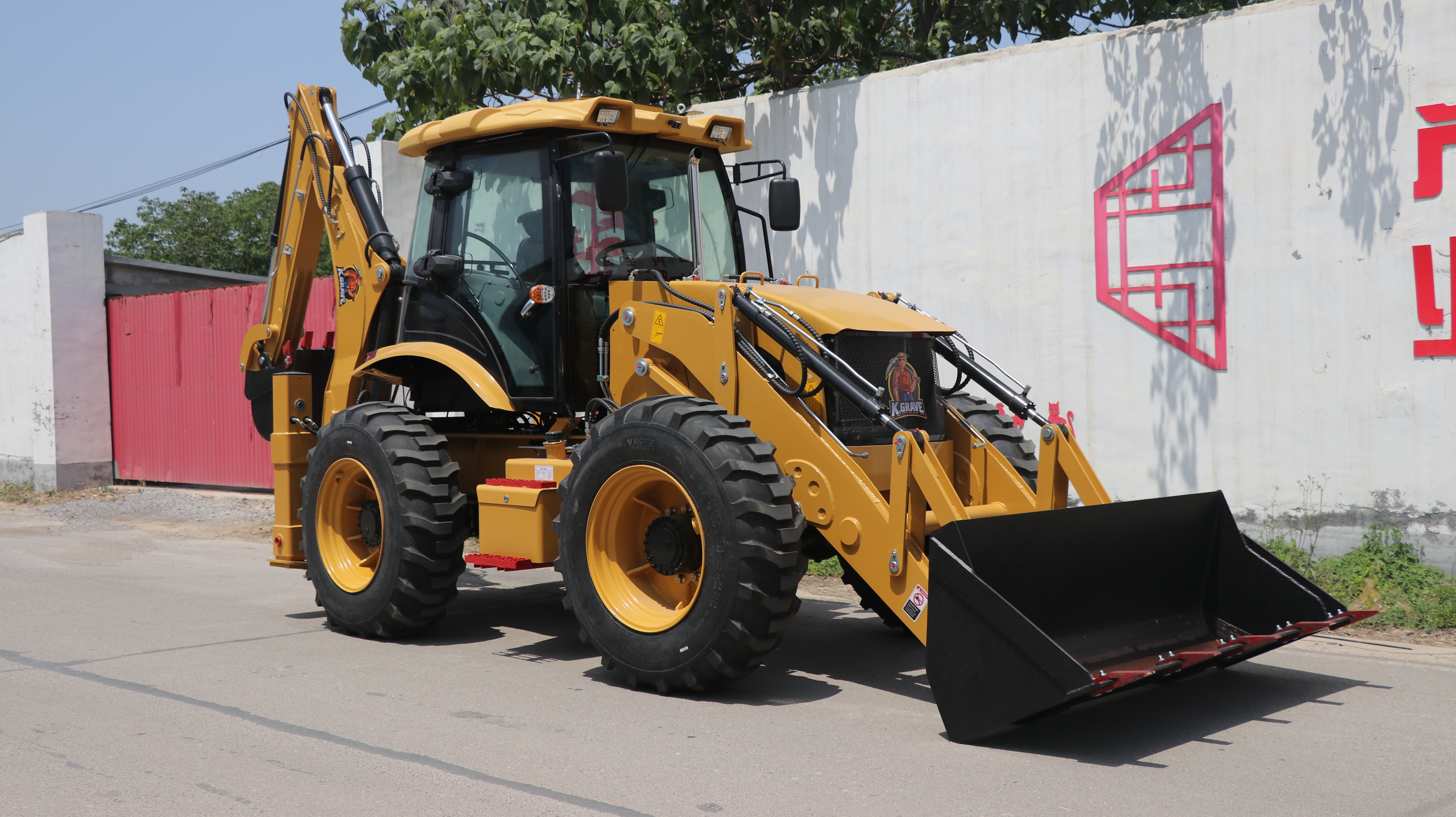

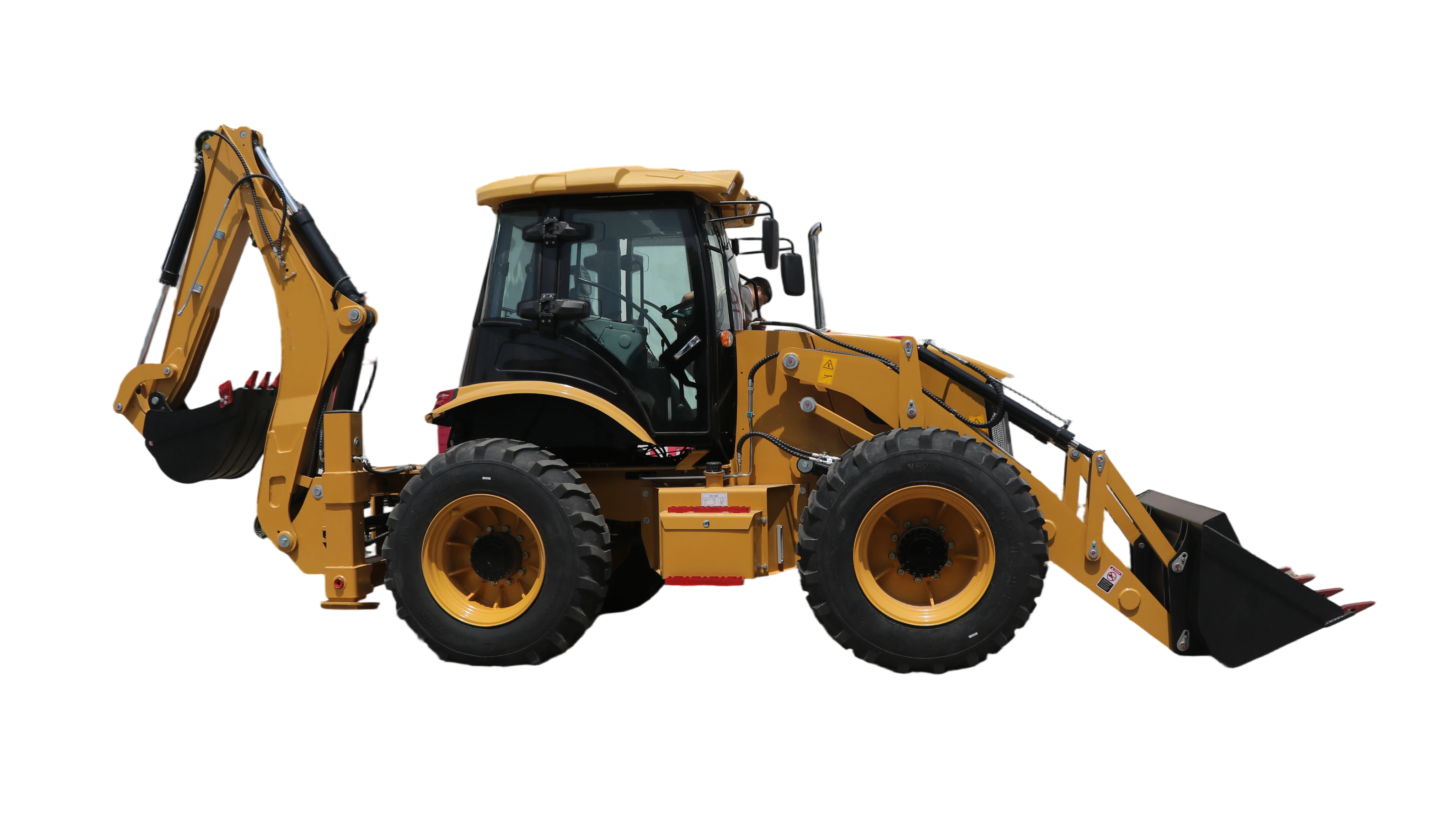

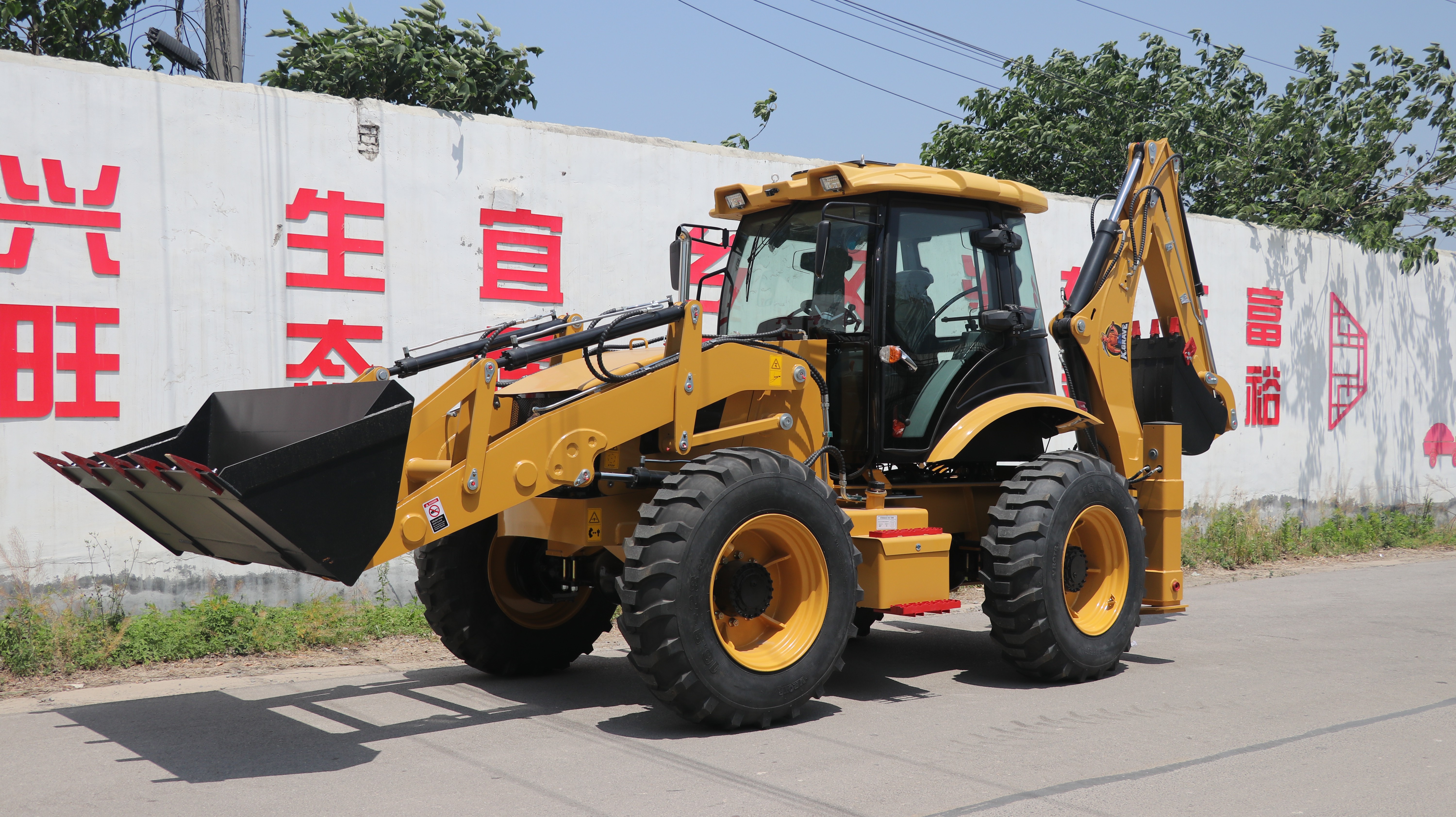

SDSG FC-388F Backhoe Loader

Product Model:FC-388F

The FC-388F is a multifunctional backhoe loader integrating loading, excavating, and general engineering capabilities. Powered by a 75 kW Yuchai engine and featuring a water-cooling system, hydraulic drive, and a "front-loader, rear-excavator" configuration, it can perform tasks such as loading, excavating, transporting, and leveling within confined spaces.

The machine has an operating weight of approximately 10,400 kg, a rated load capacity of 2,500 kg, and a standard loader bucket capacity of 1.2 m³, balancing operational efficiency, maneuverability, and adaptability to diverse working conditions.


Online Consultation
Related Products

Parameter Specifications

paramater nameParameter value
Cooling typeWater-cooled
Rated power75 kW
Displacement4.8 L
Rated speed2200 r/min
Max. Torque400 N·m
ManufacturerYUCHAI
Hydraulic torque converter model315
Gearbox model28
Hydraulic oil tank125 L
Driving axles modelWZL100
Tyres model16.9-28
Working pump displacement63 ml/r
Working pump pressure20 MPa
Diverter modelBZZ-500
Rod diameter68-70 mm
Impact frequency500-900
Flow scope25-45 L/min
Kinetic energy49 kN
Total length6450±80 mm
Total width2650±20 mm
Bucket width2620 mm
Total height (cabin top)3120±10 mm
Total height3940±20 mm
Wheel base2335±10 mm
Wheel tread2139±10 mm
Rated load2500 kg
Operating weight10400 kg
Rated bucket capacity1.2 m³
Max. Dumping height3050±50 mm
Dumping distance870±20 mm
Turning radius5750±50 mm
Rated digging bucket capacity0.3 m³
Max. Digging depth3820±20 mm
Max. Digging radius5345±20 mm
Max. Loading height3740±20 mm
Max. Digging force5100 kg
Max. Digging height5470±20 mm
Lifting force at Max. Digging radius1220 kg
Maximum digging depth4970±20 mm
Maximum loading height4983±20 mm
Maximum digging height6680±20 mm
Engine modelYC4A105Z-T20


Main Functions

The FC-388F is a multifunctional backhoe loader integrating loading, excavating, and general engineering capabilities. Powered by a 75 kW Yuchai engine and featuring a water-cooling system, hydraulic drive, and a "front-loader, rear-excavator" configuration, it can perform tasks such as loading, excavating, transporting, and leveling within confined spaces.

The machine has an operating weight of approximately 10,400 kg, a rated load capacity of 2,500 kg, and a standard loader bucket capacity of 1.2 m³, balancing operational efficiency, maneuverability, and adaptability to diverse working conditions.


Application Scenarios

  • Earthworks: Excavation, backfilling, loading, and transport of earth

  • Municipal Engineering: Road construction, trenching, and road maintenance

  • Construction: Foundation excavation, material handling, and site leveling

  • Agriculture & Forestry: Farmland improvement, ditch construction, and material handling

  • Mining & Construction Sites: Loading of sand, gravel, and soil; auxiliary excavation

  • Confined Workspaces: Combines loading and excavating functions in one machine, reducing the need for multiple pieces of equipment


Core Advantages

1. Versatile and Efficient

The "front-loader, rear-excavator" design allows for rapid switching between loading and excavating tasks, reducing the need for coordinated operation of multiple machines.

2. Powerful Performance

Equipped with a Yuchai YC4A105Z-T20 engine delivering a rated power of 75 kW, ensuring robust power output and ample power reserves.

3. Stable Hydraulic System

Features a working pump displacement of 63 ml/r and an operating pressure of 20 MPa, meeting the demands of various hydraulic operations such as excavating and loading.

4. Wide Operating Range

Offers a maximum excavation depth of 4,970 mm and a maximum excavation radius of approximately 5,345 mm, making it suitable for a wide range of earthmoving and construction conditions.

5. High Loading Capacity

Features a rated load capacity of 2,500 kg, a rated bucket capacity of 1.2 m³, and a maximum dumping height of approximately 3,050 mm, making it suitable for material loading, unloading, and transport.

6. Versatile Attachment Compatibility

Equipped with hydraulic capabilities at the rear, allowing for the configuration of various tools based on specific operating conditions and enhancing overall machine utilization.

7. Comfortable Operation and Excellent Visibility

The cab features a comfortable seat, air conditioning, and an audio system; its large-area glass design ensures a superior operating environment and excellent visibility during extended work shifts.

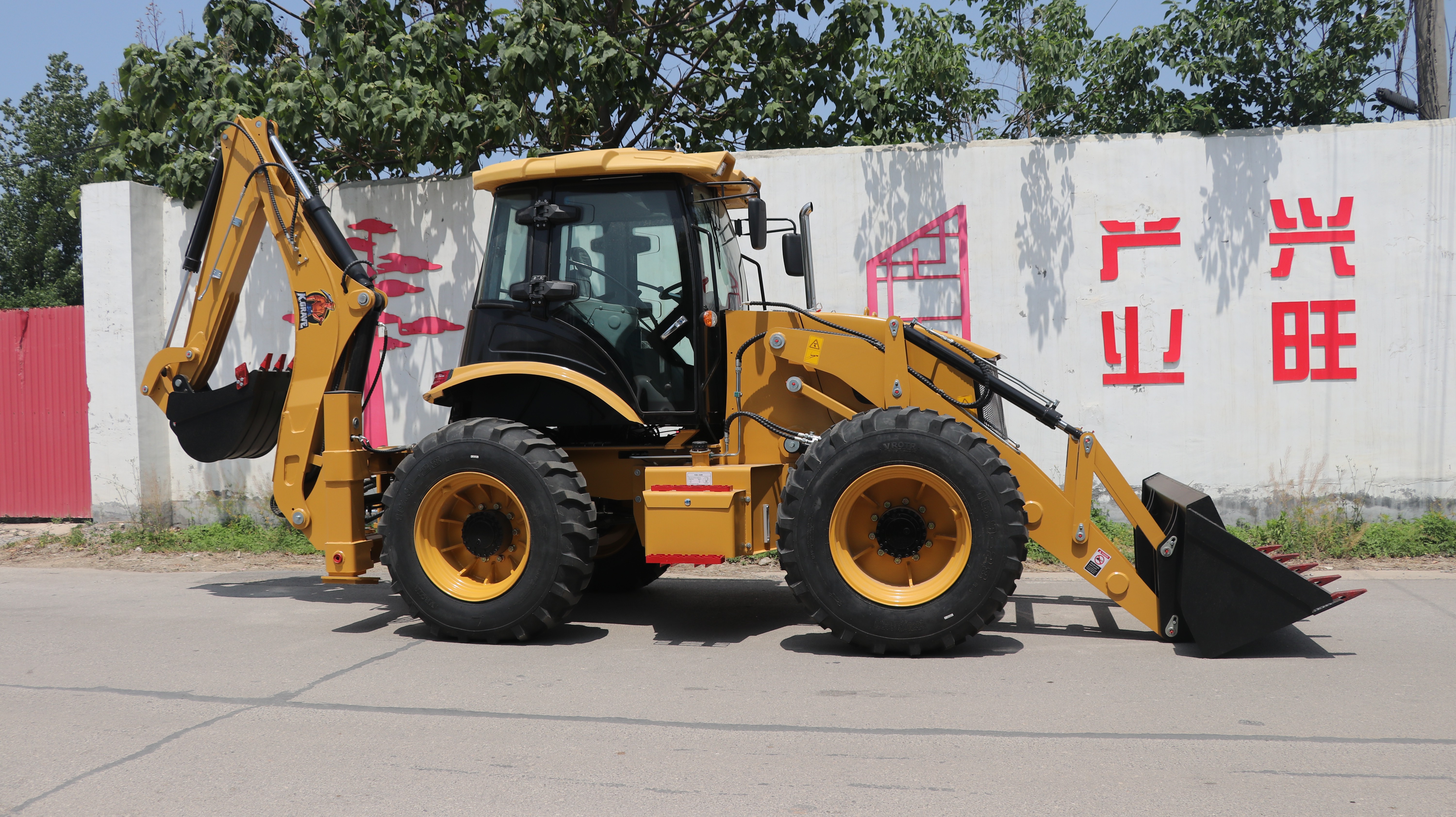

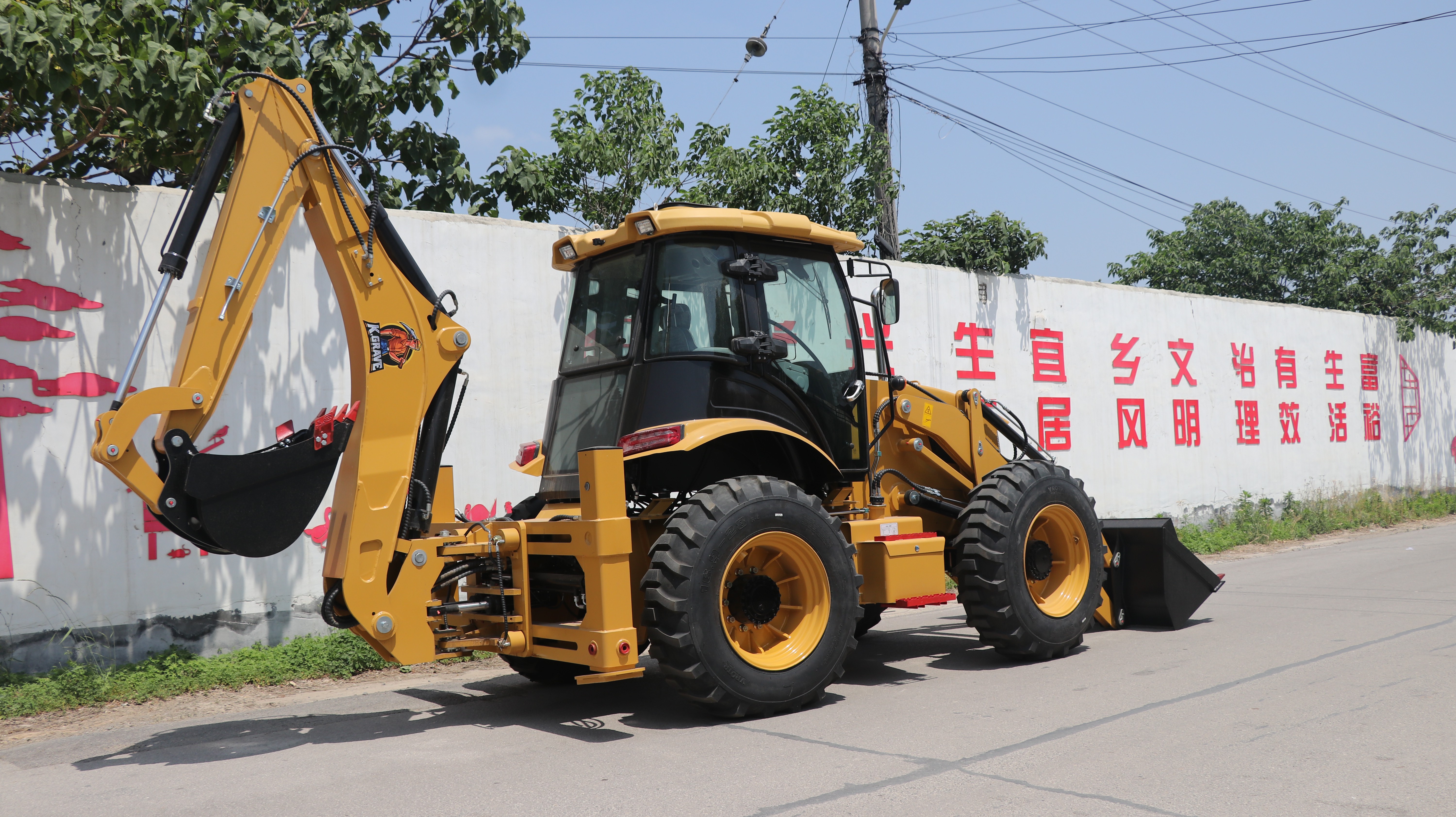

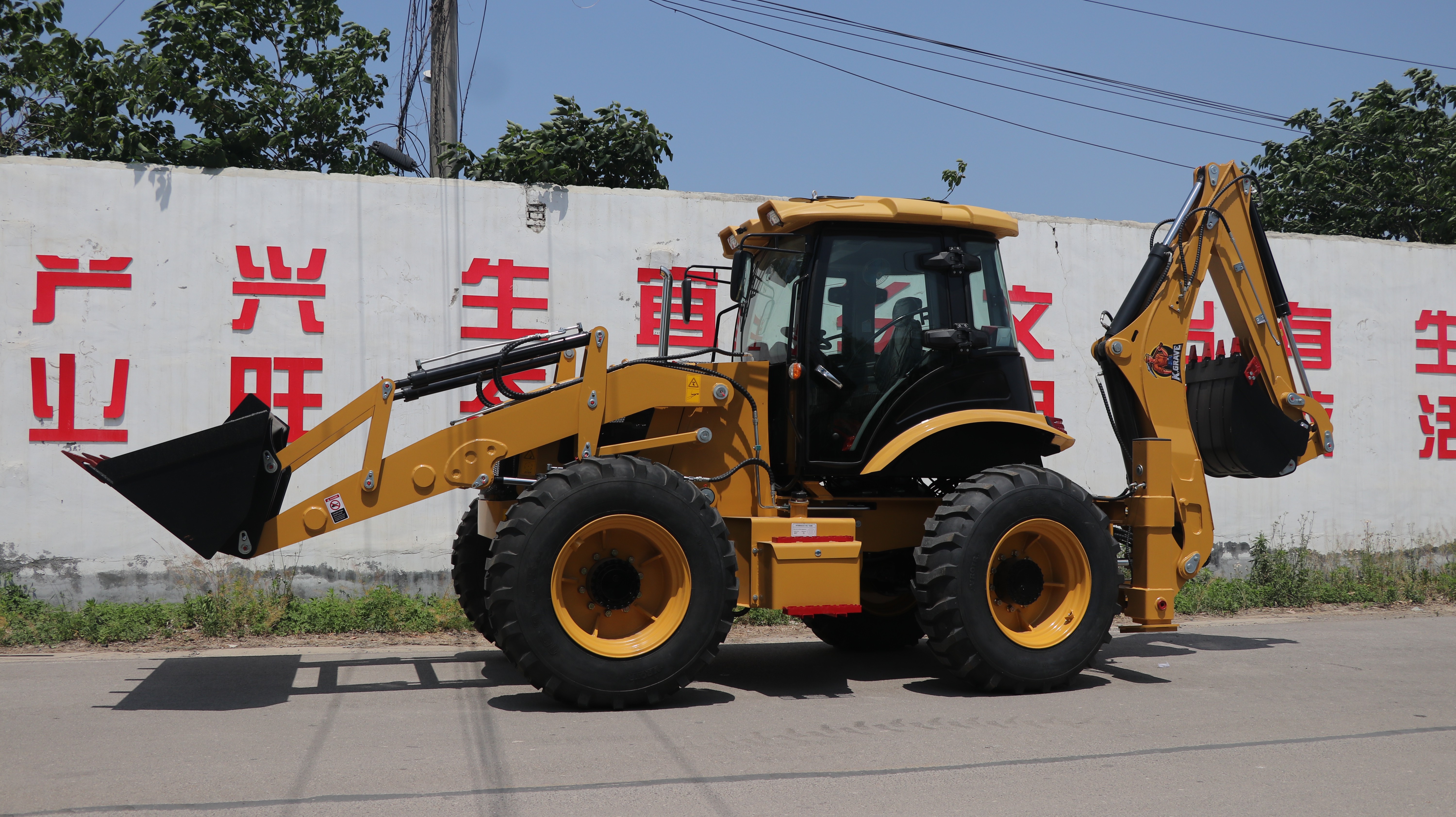

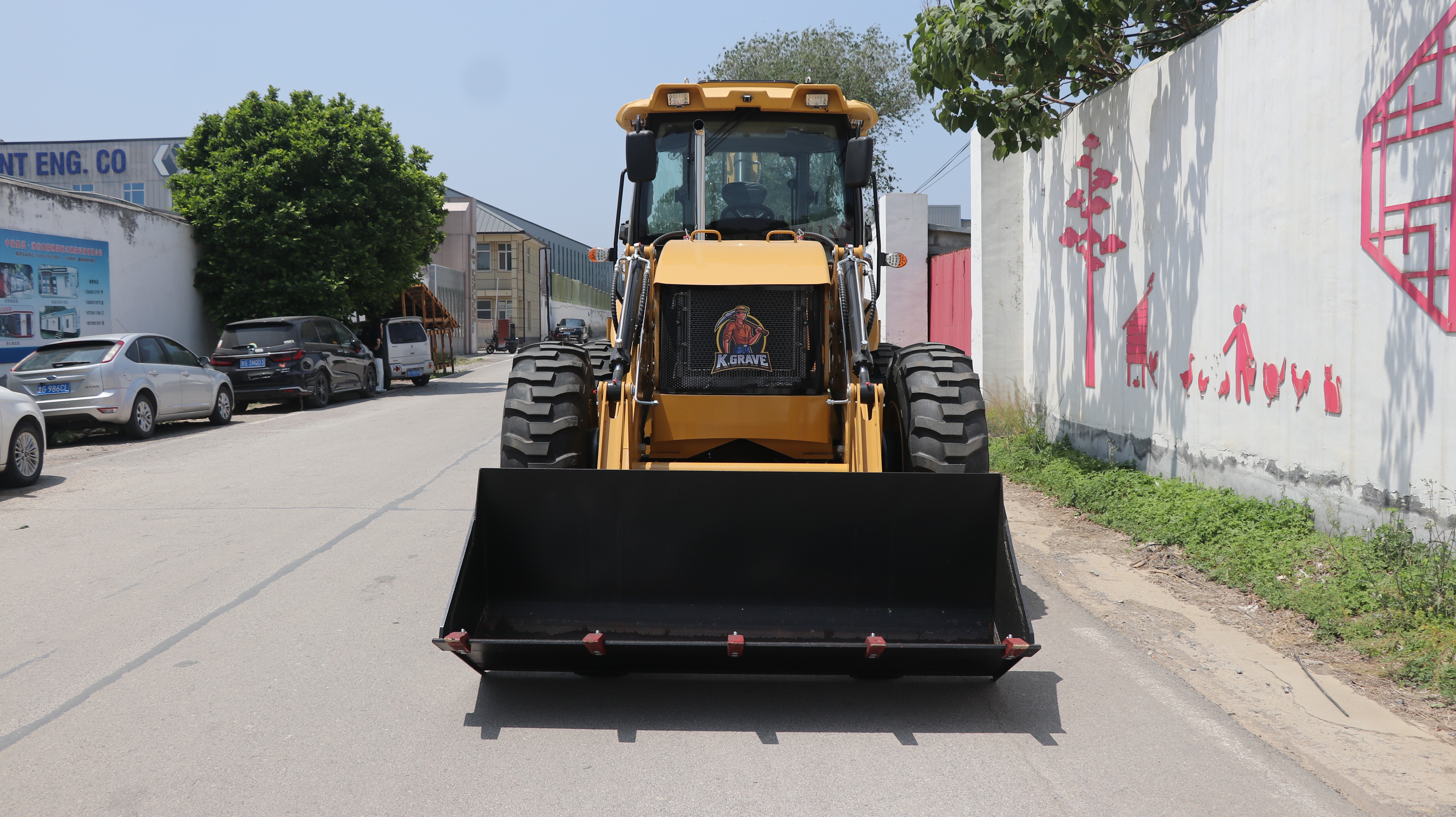

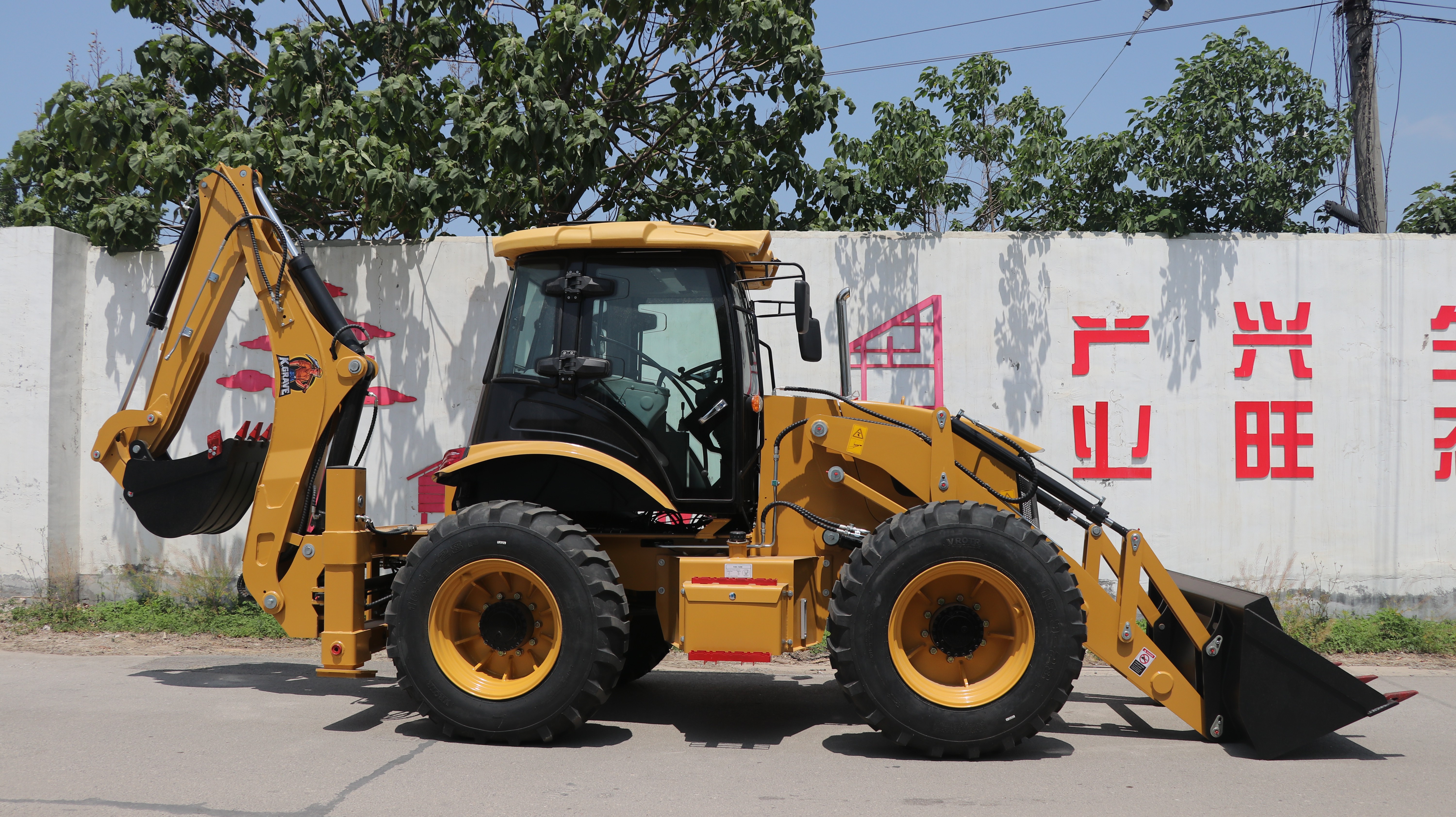

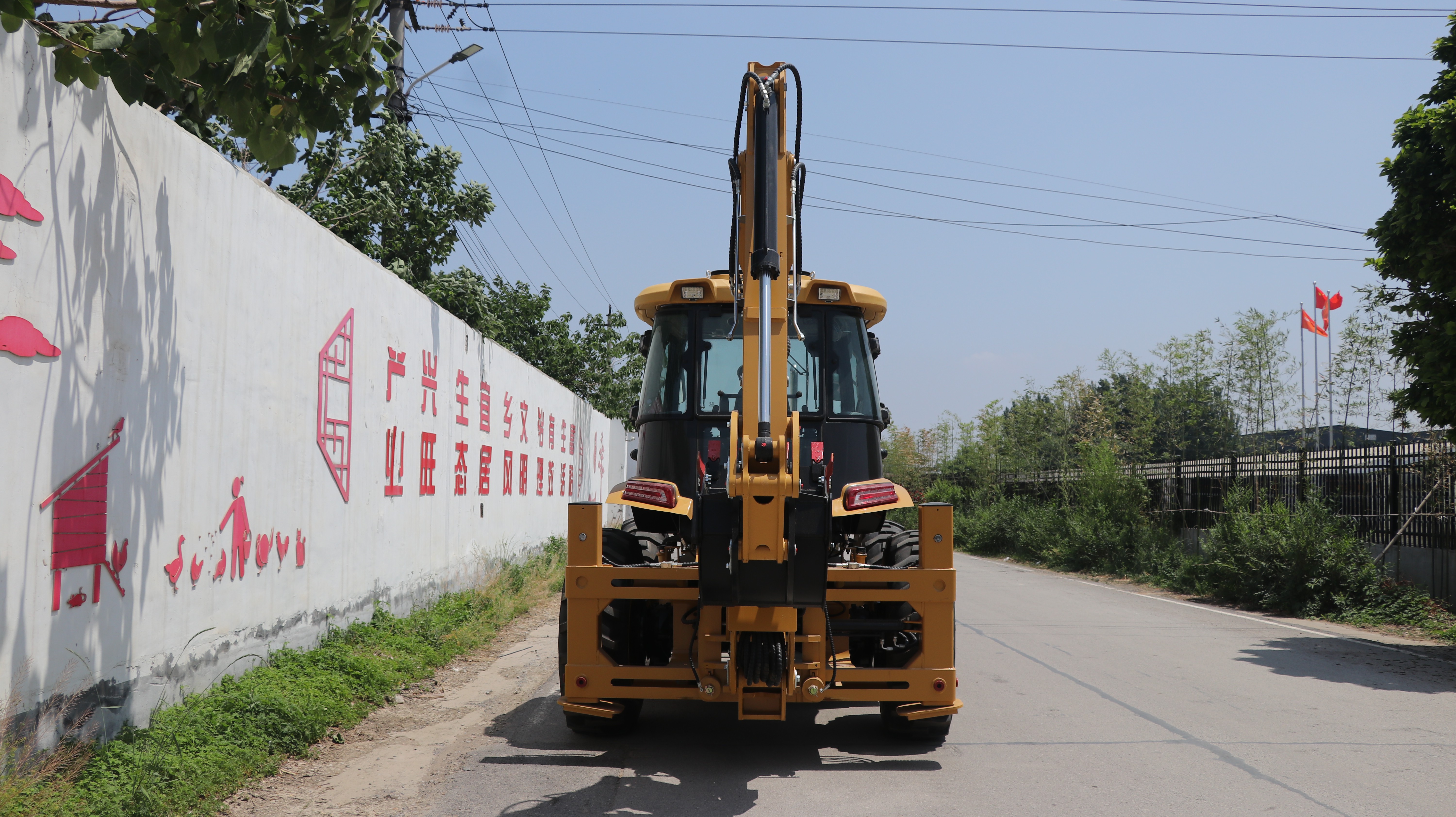

Detail Images
