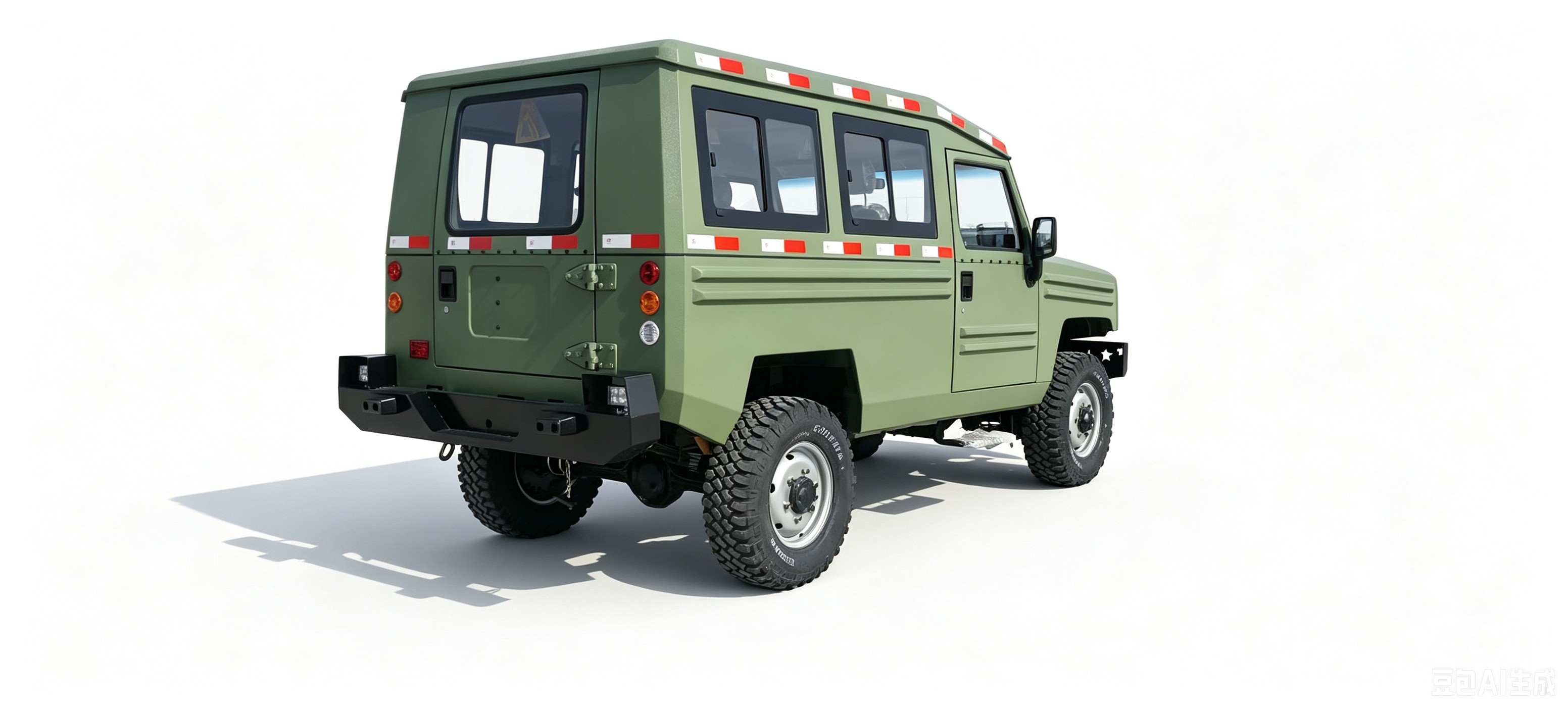

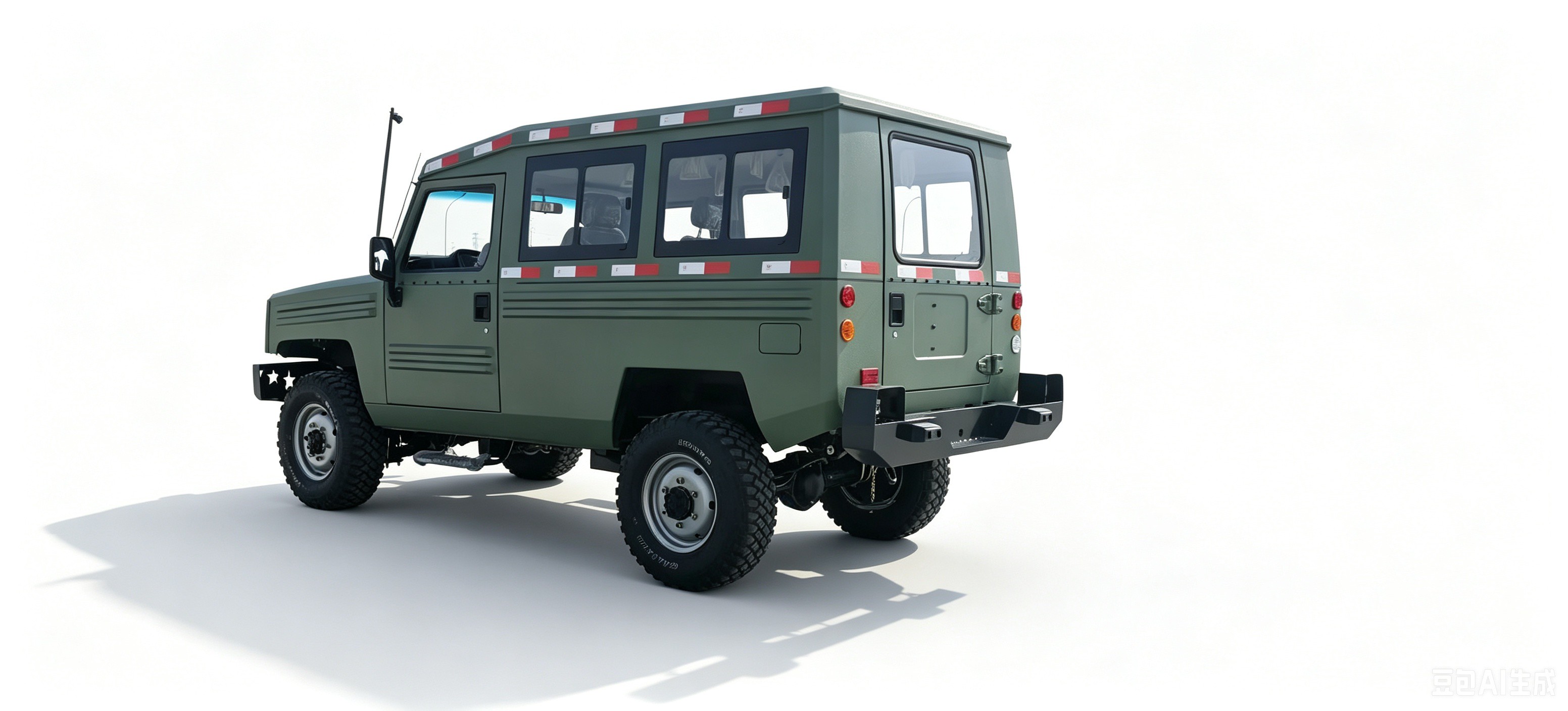

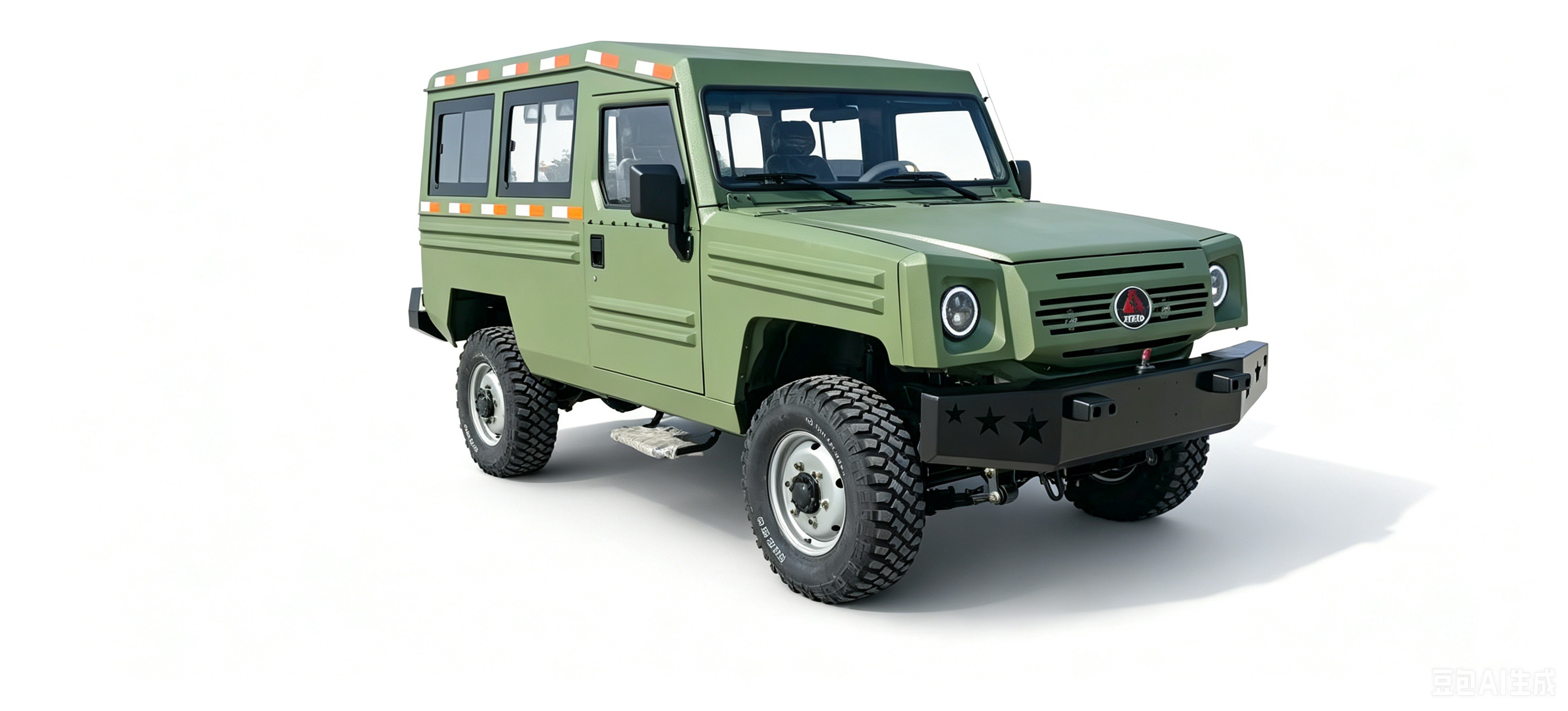

RU-10 Trackless Personnel Carrier

RU-10 Trackless Personnel Carrier

Product Model:RU-10

1. Mining safety products;

2. Used for underground personnel transportation, enclosed cabin with spacious space, equipped with integrated air conditioning for cooling and heating, and driver and passenger seats with spring shock absorbers for comfortable riding;

3. Adopting reinforced front and rear axles, the entire vehicle can switch between two wheel drive and four-wheel drive, better adapting to different road conditions;

4. All models come standard with engineering tires, which are more durable and increase the usage time for complex road conditions;

5. Adopting a spring cut-off braking system with three modes of service braking, parking braking, and emergency braking, it meets the requirements of national mining safety standards and has higher safety;

6. Equipped with non road high horsepower engine, National IV emission standard EGR catalytic converter and muffler;

7. LED driving and work light illumination, multifunctional instrument display and instrument indicator lights integrated;

8.The cab meets the safety standards certification of FOPS (anti rockfall) and ROPS (anti rollover)


Parameter Specifications

No.Model NameRU-10 Trackless Personnel Carrier
1Fuel TypeDiesel
2Emission StandardChina IV for Non-road Mobile Machinery
3Engine ModelJX493ZG4A
4ManufacturerJiangxi Isuzu Engine Co., Ltd.
5Power / Speed90Kw/3000
6Torque / Speed350/1800-2000
7Overall Vehicle Dimensions4755*2180*2327
8Transmission                     Manual Three-Speed Transmission
9Maximum Speed (km/h)            25
10Wheelbase (mm)2800
11Front and Rear Track (mm)1644
12Number of Seats2 Front and 8 Rear PVC Seats Arranged in Rows
13Vehicle Weight2750
14Drive TypeFront-Mounted Four-Wheel Drive
15Front and Rear Brake TypeHydraulic Wet Brakes
16Front and Rear Tire Specifications7.50R16LT


Main Functions

1. Mining safety products;

2. Used for underground personnel transportation, enclosed cabin with spacious space, equipped with integrated air conditioning for cooling and heating, and driver and passenger seats with spring shock absorbers for comfortable riding;

3. Adopting reinforced front and rear axles, the entire vehicle can switch between two wheel drive and four-wheel drive, better adapting to different road conditions;

4. All models come standard with engineering tires, which are more durable and increase the usage time for complex road conditions;

5. Adopting a spring cut-off braking system with three modes of service braking, parking braking, and emergency braking, it meets the requirements of national mining safety standards and has higher safety;

6. Equipped with non road high horsepower engine, National IV emission standard EGR catalytic converter and muffler;

7. LED driving and work light illumination, multifunctional instrument display and instrument indicator lights integrated;

8.The cab meets the safety standards certification of FOPS (anti rockfall) and ROPS (anti rollover)
