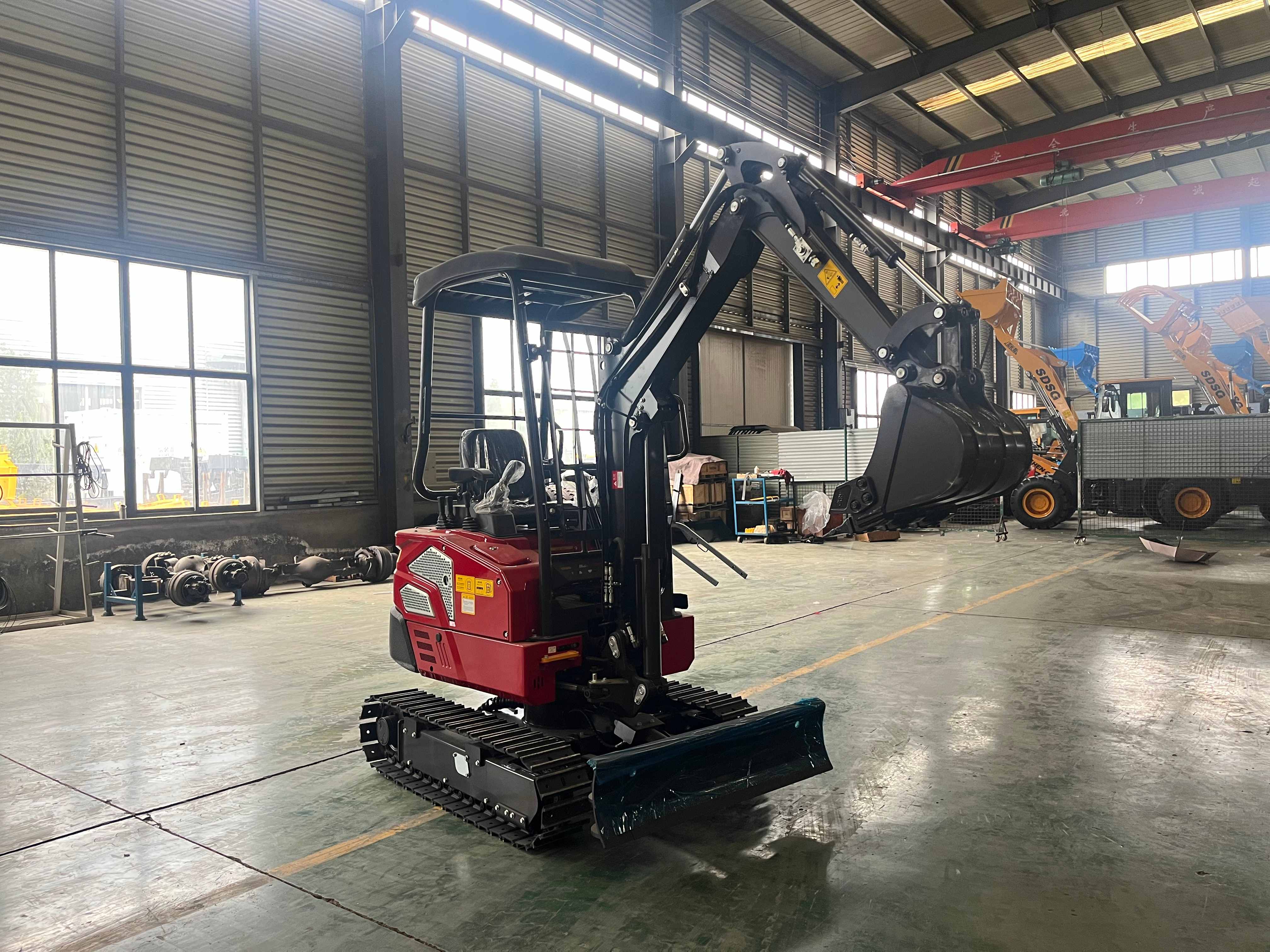

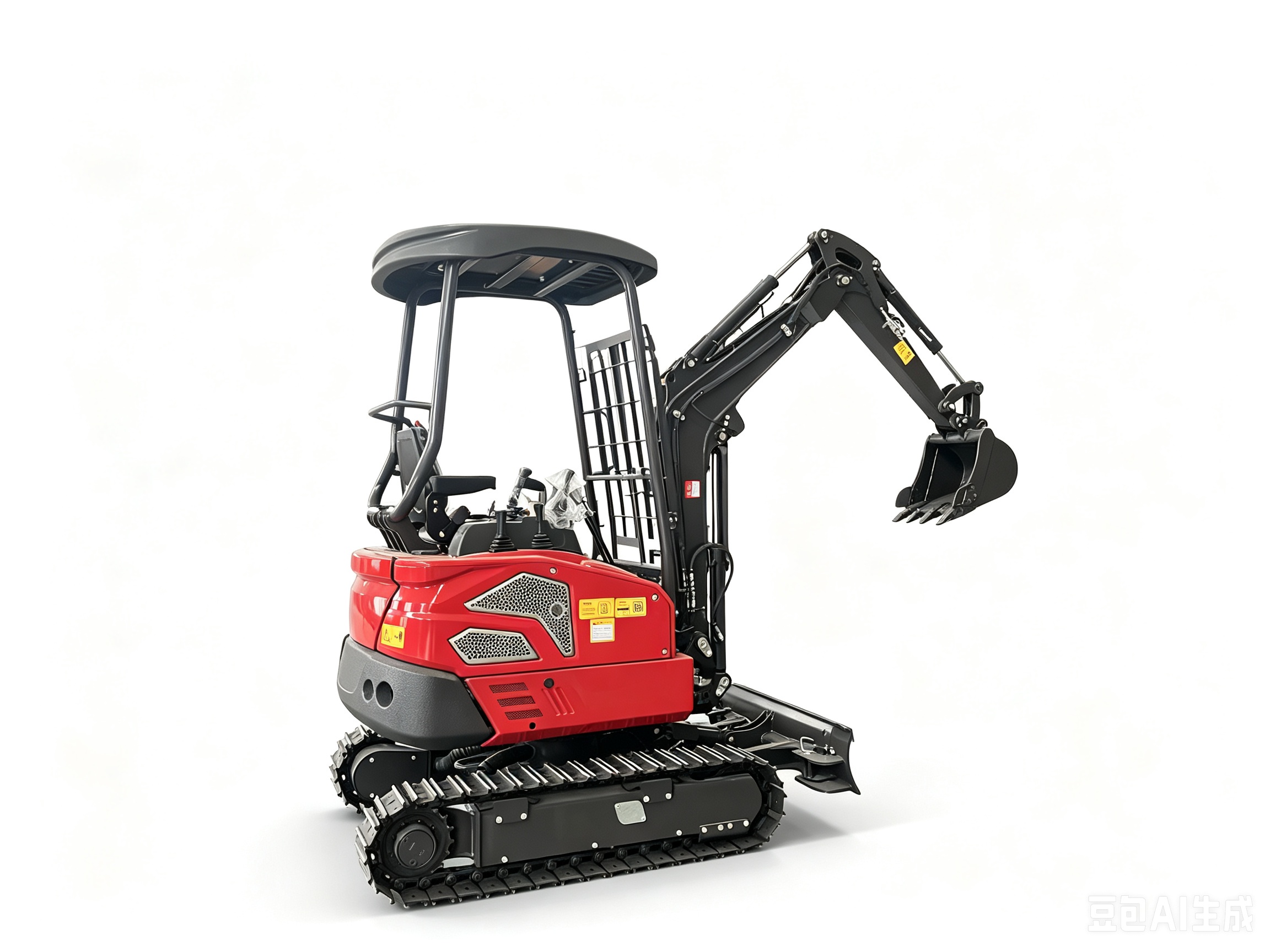

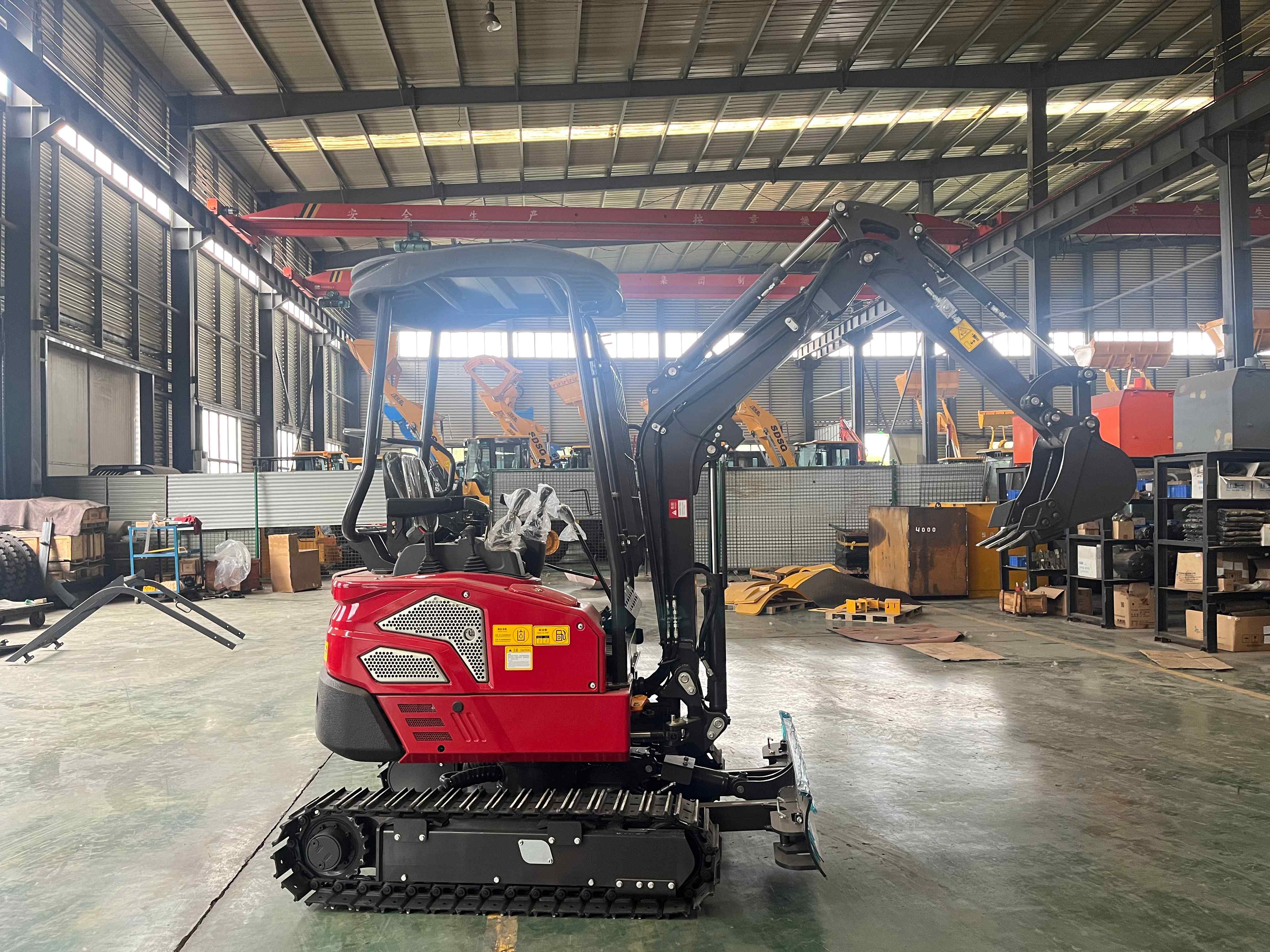

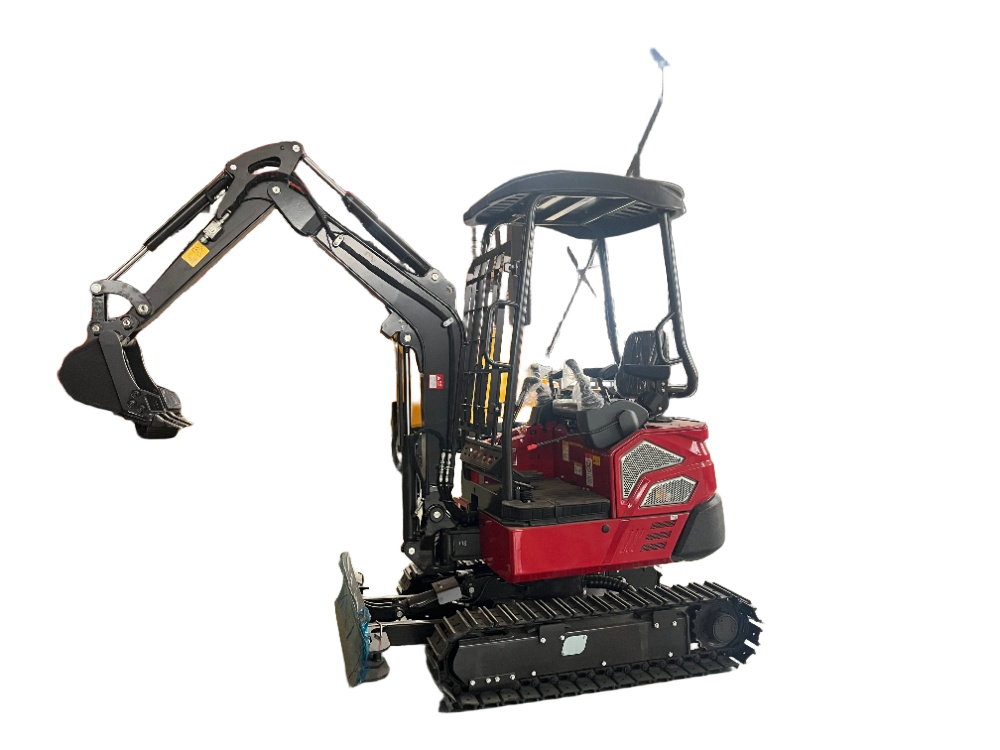

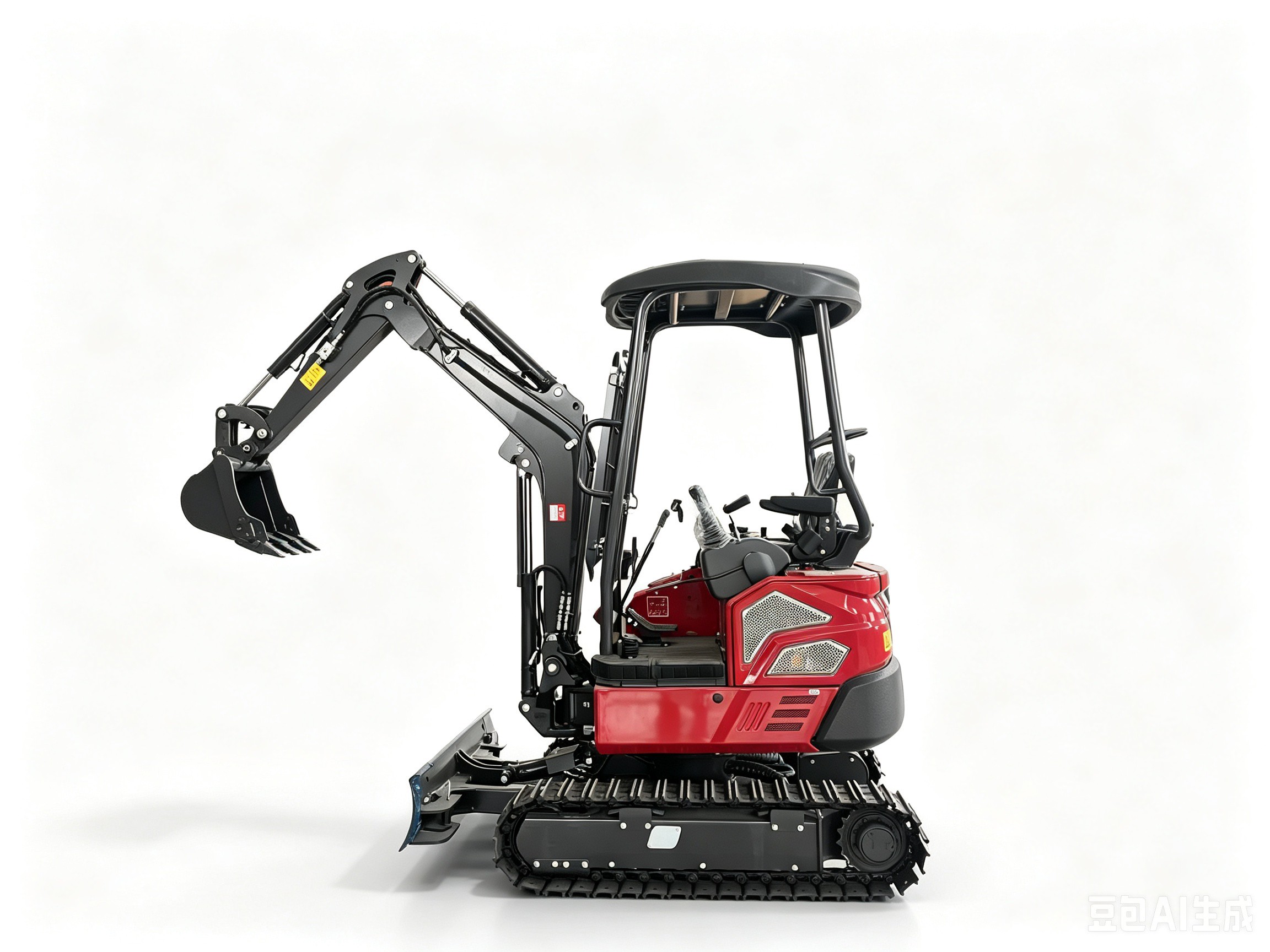

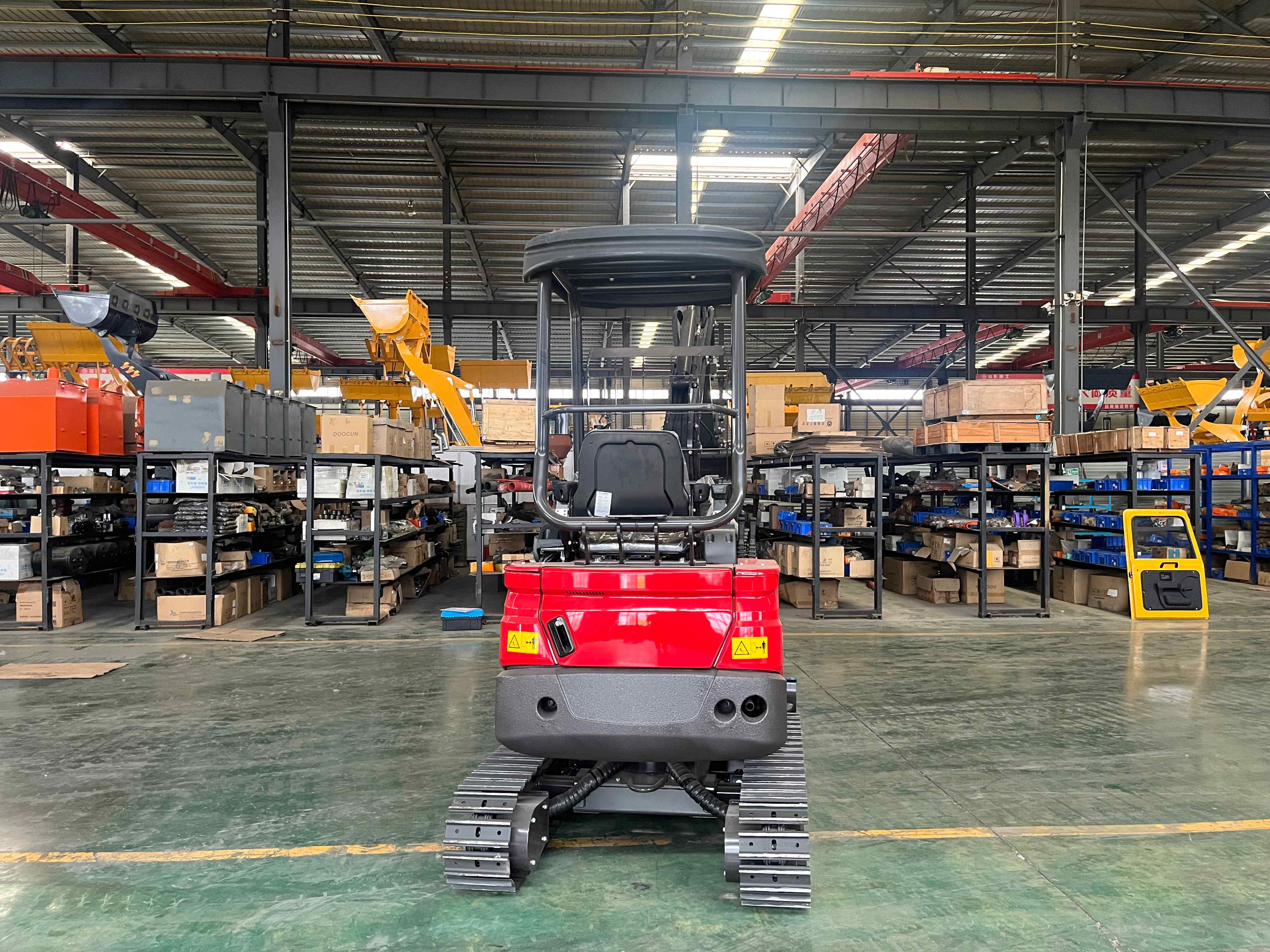

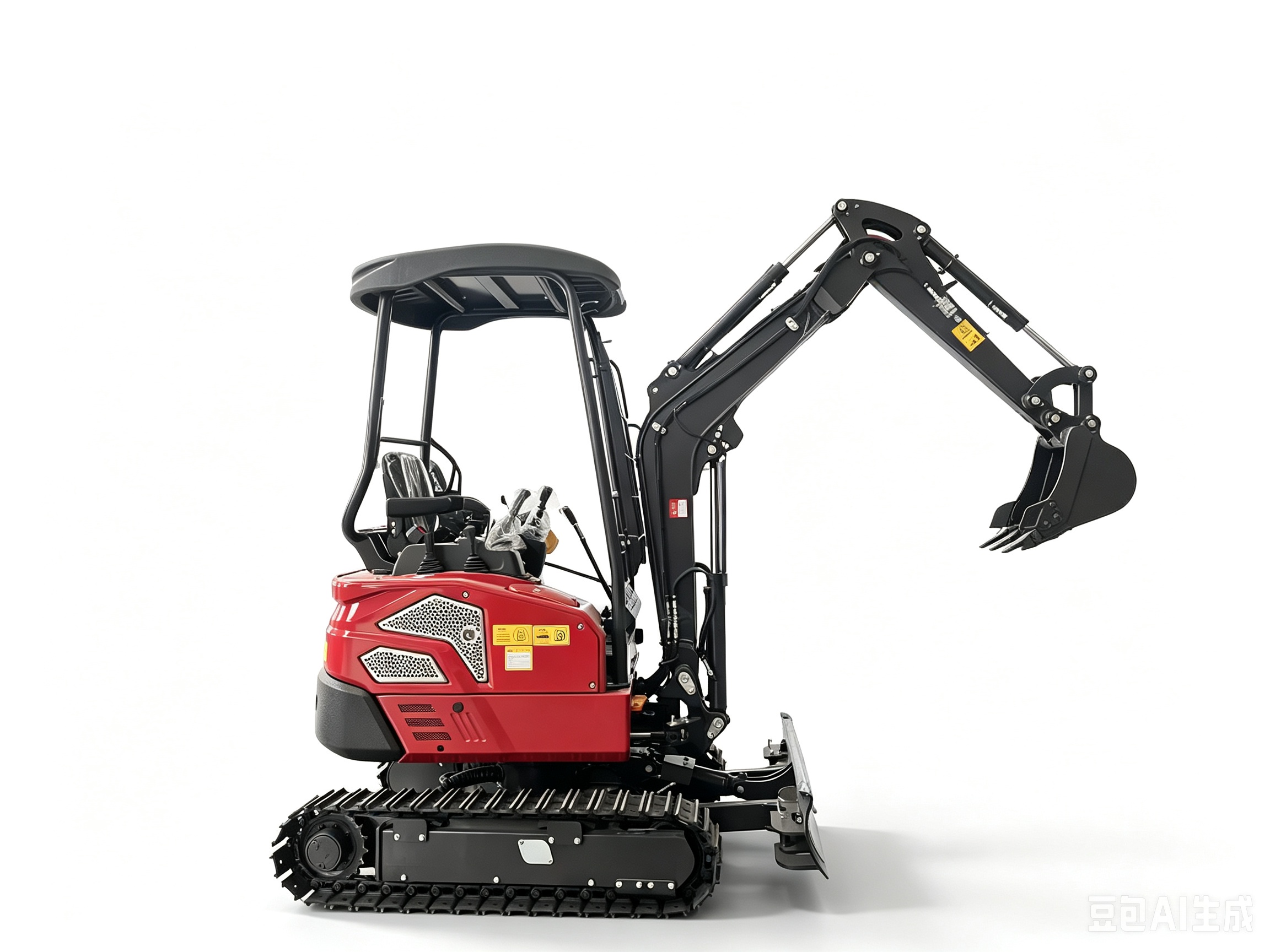

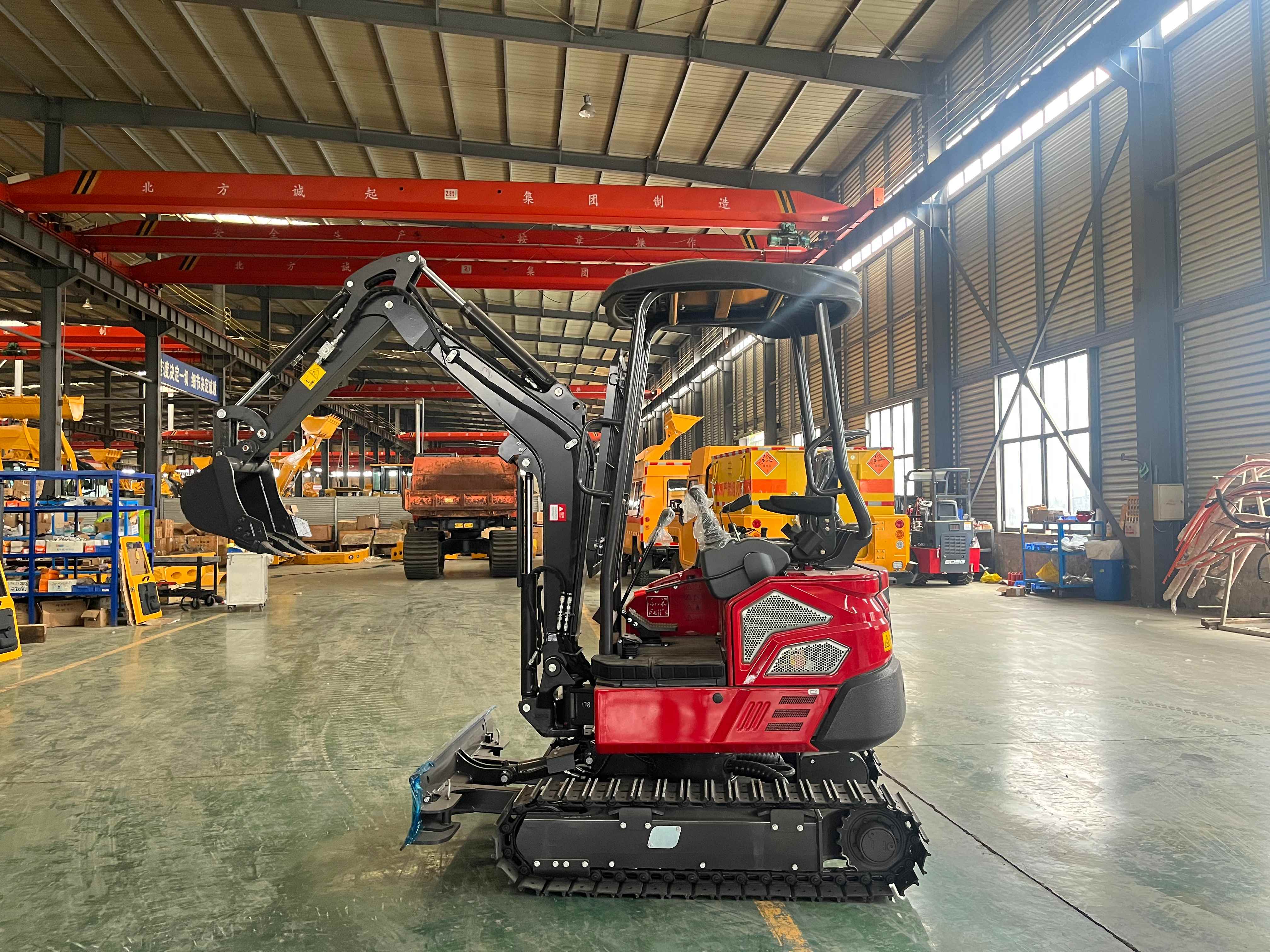

KWC2.2/0.029L Mining Excavator

Product Model:KWC2.2/0.029L

  • Mining safety products.

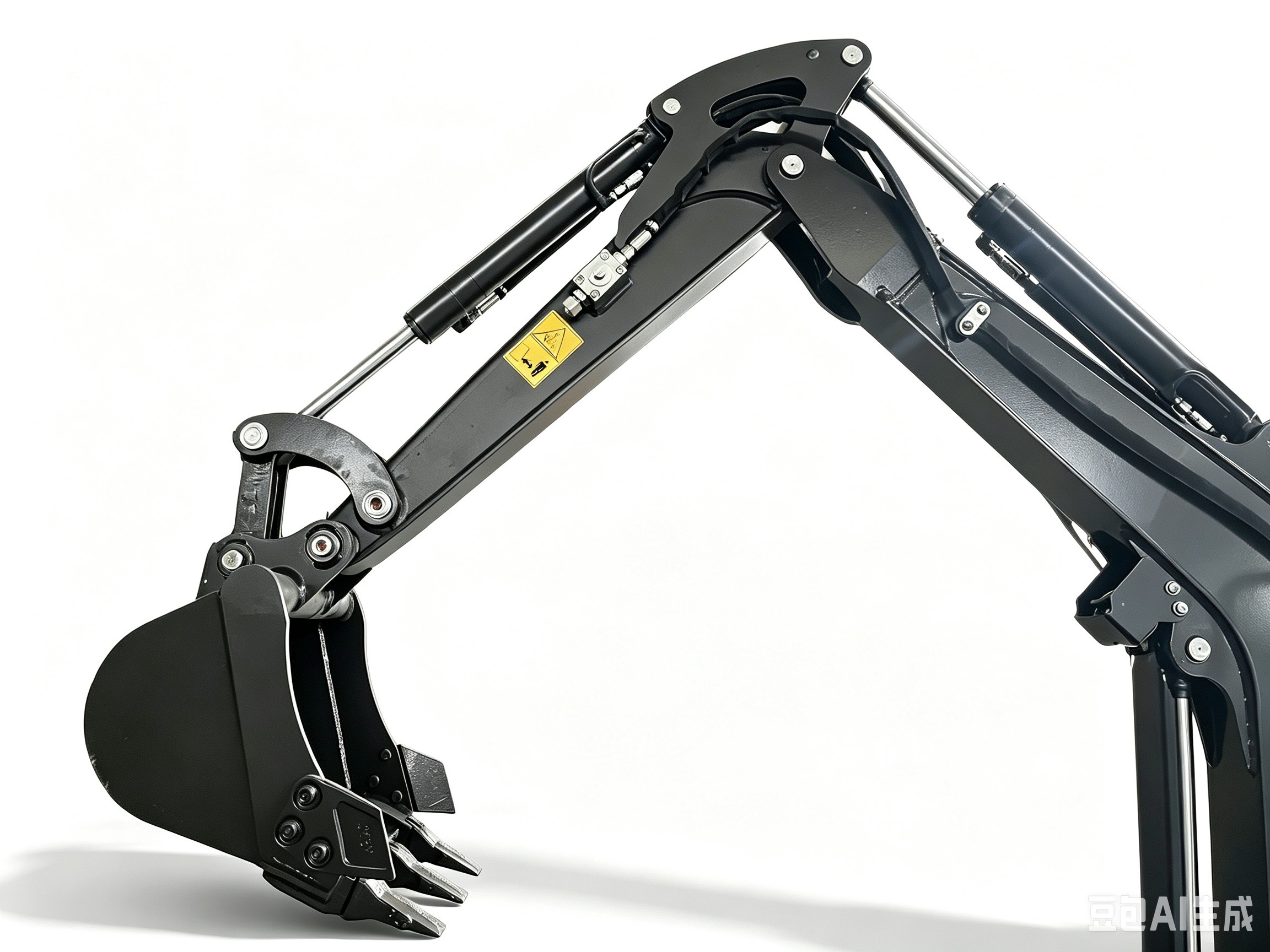

  • Boom side-shifting device.

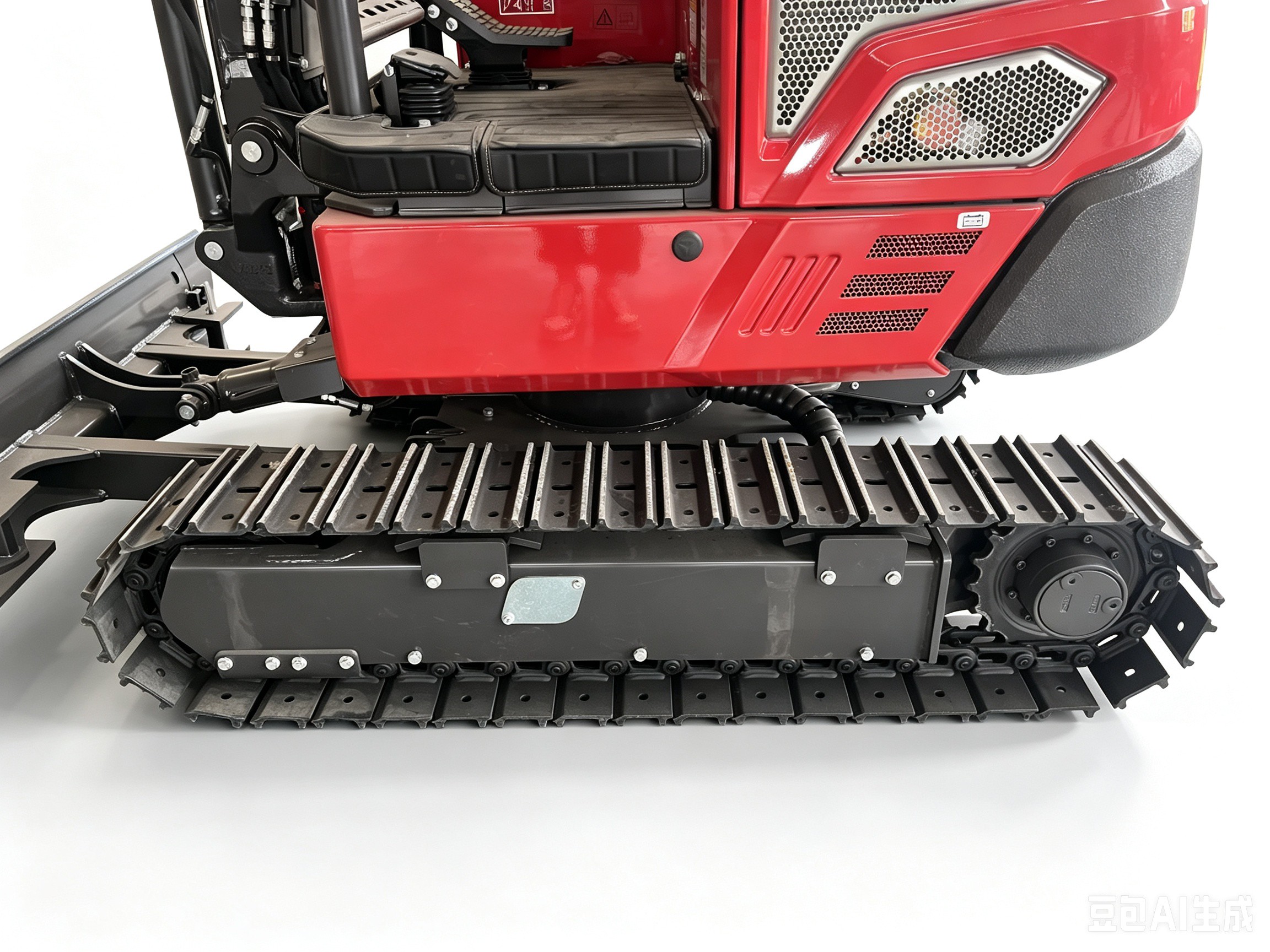

  • Reinforced retractable frame chassis.

  • The new bulldozing plate is easy to disassemble and install.

  • Kubota's National IV engine boasts stable and reliable performance.

  • The 22-type hydraulic system can maximize the utilization of engine power.


Online Consultation
Related Products

Parameter Specifications

Product ModelKWC2.2/0.029L Mining Excavator
Track Width1230mmMinimum Swing Radius              1580mm
Total Track Length        1590mmMaximum Dozer Blade Lift Height275mm
Platform Ground Clearance473mmMaximum Dozer Blade Digging Depth180mm
Platform Tail Swing Radius885mmOperating Weight1920kg
Undercarriage Width          1025 (1275) mmStandard Bucket Capacity  0.029m³
Track Width    230mmWorking Equipment Configuration        Backhoe
Track Height    360mmEngine Model        KUBOTA D1105
Transport Length3475mmDisplacement1.123
Seat-to-Ground Height1750mmRated Output Power    14.2kw
Overall Machine Height          2382mmMaximum Torque            71.4N.m
Boom Swing - Left390mmMaximum Travel Speed        3.3km/h/2.2km/h
Boom Swing - Right510mmSwing Speed      10.5rpm
Maximum Ground Digging Radius3610mmMaximum Gradeability    30°
Maximum Digging Radius3700mmPump TypePiston Pump
Maximum Digging Depth2150mmWorking Pressure22Mpa
Maximum Digging Height3275mmFlow Rate39.6L/min
Maximum Dumping Height2310mmHydraulic Oil Tank Capacity15.3L
Maximum Vertical Digging Depth1740mmFuel Tank Capacity18L


Main Functions

  • Mining safety products.

  • Boom side-shifting device.

  • Reinforced retractable frame chassis.

  • The new bulldozing plate is easy to disassemble and install.

  • Kubota's National IV engine boasts stable and reliable performance.

  • The 22-type hydraulic system can maximize the utilization of engine power.
