2-Ton Electric Forklift

  • 2-Ton Electric Forklift

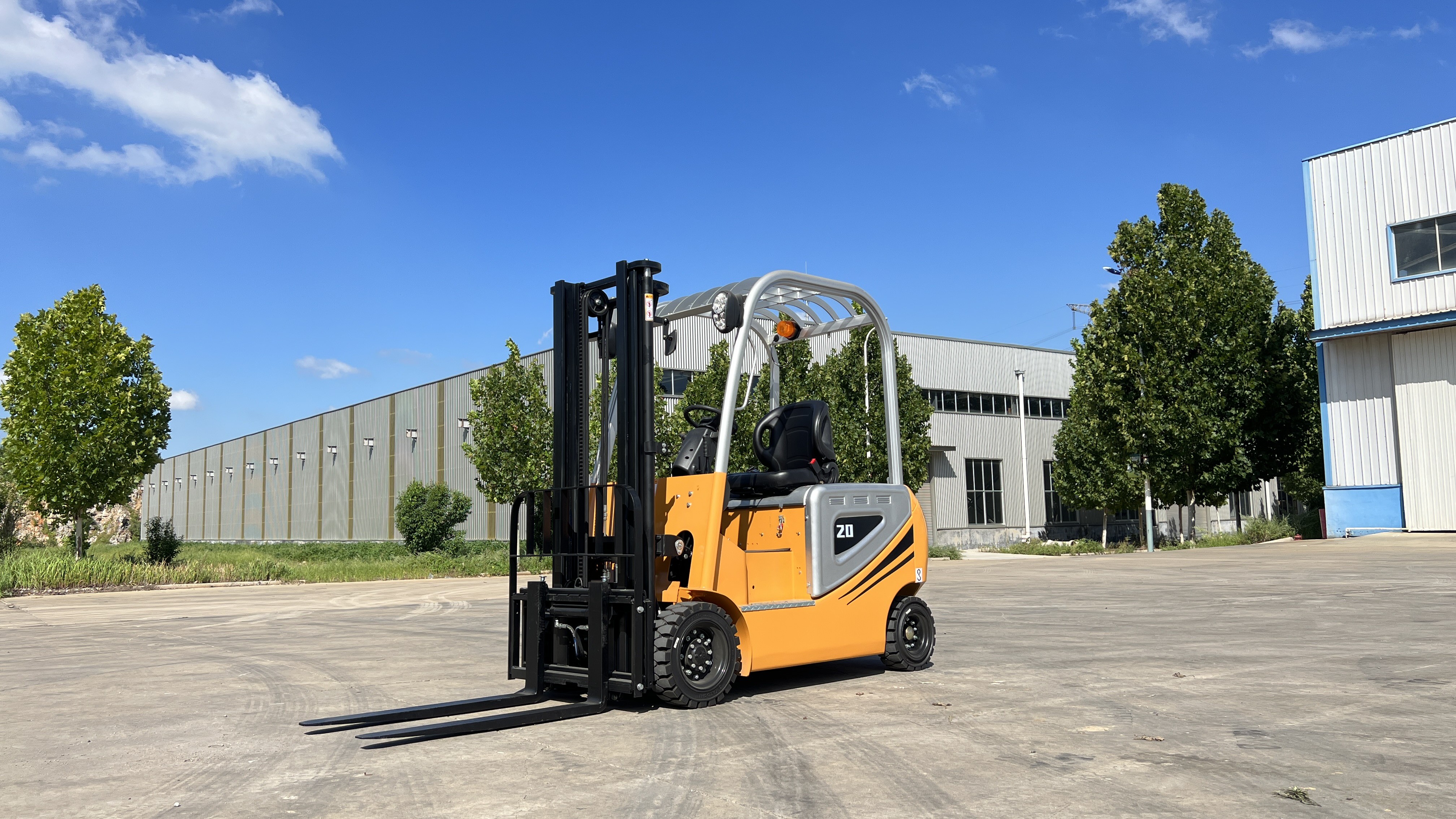

2-Ton Electric Forklift

Product Model:CPD20-C

Online Consultation
Related Products

Parameter Specifications

Features
Model

CPD20-C
Driving Type

Ride-on
Rated Load Capacity                                Qkg2000
Load Center Distance                            Cmm500
Power Type

Lead-acid Battery
Wheelbase                                    L1mm1550
Performance
Travel Speed, Loaded/Unloaded
km/h9/10
Lifting Speed, Loaded/Unloaded
mm/s180/200
Lowering Speed, Loaded/Unloaded
mm/s450
Max. Gradeability, Loaded/Unloaded
%15/20
Weight
Service Weight (Including Battery)
kg2530
Axle Load: Unloaded, Front/Rear
kg/
Axle Load: Loaded, Front/Rear
kg/
Battery Voltage/Capacity
V/Ah60V/210Ah
Battery
kg300
Electrical Configuration
Drive Motor Power - 60 Minutes
kW5 Permanent Magnet Synchronous PMSM
Lift Motor Power - 15 Minutes
kW4.5 Permanent Magnet Synchronous PMSM
Drive Motor Control Method

MOSFET/AC
Lift Motor Control Method

MOSFET/AC
Service Brake/Parking Brake

Hydraulic/Mechanial
Tires
Tire Type

Solid Tire
Number of Wheels (Front/Rear)

2/2
Front Tread                                      W3mm945
Rear Tread                                        W2mm880
Front Tires

18*7-10
Rear Tires

16*6-8
Dimensions
Front Overhang                                      L2mm325
Mast Tilt Angle, Front/Rear              α/β°5/10
Mast Height, Lowered                    H1mm2030
Free Lift Height                          H3mm/
Maximum Lift Height                  Hmm3000
Mast Height, Extended                        H2mm4055
Overhead Guard Height                          H4mm2110
Fork Adjustment Range (Outside), Maximum/Minimum  W5mm970/200
Fork Dimensions, Thickness x Width x Length                      T*W*L4mm40*100*1070
Overall Length (Excluding Forks)      L＇mm2230
Overall Width                              W1mm1100
Turning Radius                                Rmm2280
Mast Ground Clearance                    H5mm88
Ground Clearance at Wheelbase Center (Fully Loaded)
H6mm110
Right-Angle Stacking Aisle Width (Pallet 1000x1200mm, 1000 Along Forks)
Astmm3750
Right-Angle Stacking Aisle Width (Pallet 800x1200mm, 1200 Along Forks)
Astmm3950
*The company reserves the right to change product design and specifications without prior notice.
