| Features |
| Model |
|

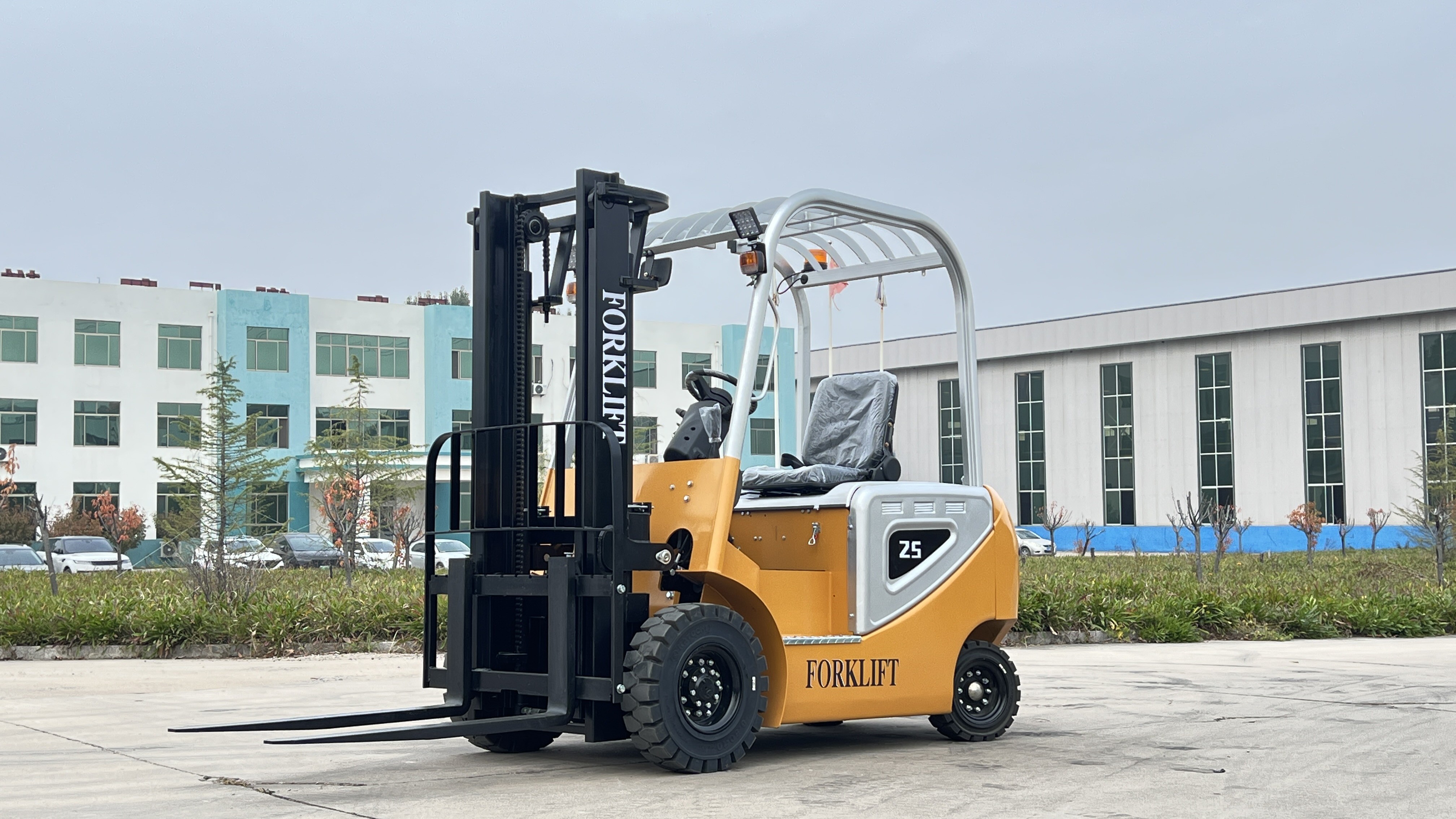

| CPD25-C |
| Driving Type |
|
| Ride-on |
| Rated Load Capacity | Q | kg | 2500 |
| Load Center Distance | C | mm | 500 |
| Power Type |
|
| Lead-acid battery
lead-acid battery |
| Wheelbase | L1 | mm | 1600 |
| Performance |
| Travel Speed, Loaded/Unloaded |
| km/h | 9/10 |
| Lifting Speed, Loaded/Unloaded |
| mm/s | 210/250 |
| Lowering Speed, Loaded/Unloaded |
| mm/s | 450 |
| Max. Gradeability, Loaded/Unloaded |
| % | 15/20 |
| Weight |
| Service Weight (Including Battery) |
| kg | 3150 |
| Axle Load: Unloaded, Front/Rear |
| kg | / |
| Axle Load: Loaded, Front/Rear |
| kg | / |
| Battery Voltage/Capacity |
| V/Ah | 72V/210Ah |
| Battery |
| kg | 360 |
| Electrical Configuration |
| Drive Motor Power - 60 Minutes |
| kW | 9 Permanent Magnet Synchronous PMSM |
| Lift Motor Power - 15 Minutes |
| kW | 7.5 Permanent Magnet Synchronous PMSM |
| Drive Motor Control Method |
|
| MOSFET/AC |
| Lift Motor Control Method |
|
| MOSFET/AC |
| Service Brake/Parking Brake |
|
| Hydraulic/Mechanial |
| Tires |
| Tire Type |
|
| Solid Tire |
| Number of Wheels (Front/Rear) |
|
| 2/2 |
| Front Tread | W3 | mm | 1010 |
| Rear Tread | W2 | mm | 880 |
| Front Tires |
|
| 6.5-10 |
| Rear Tires |
|
| 16*6-8 |
| Dimensions |
| Front Overhang | L2 | mm | 410 |
| Mast Tilt Angle, Front/Rear | α/β | ° | 5/10 |
| Mast Height, Lowered | H1 | mm | 2030 |
| Free Lift Height | H3 | mm | / |
| Maximum Lift Height | H | mm | 3000 |
| Mast Height, Extended | H2 | mm | 4055 |
| Overhead Guard Height | H4 | mm | 2110 |
| Fork Adjustment Range (Outside), Maximum/Minimum | W5 | mm | 1040/100 |
| Fork Dimensions, Thickness x Width x Length | T*W*L4 | mm | 40*100*1070 |
| Overall Length (Excluding Forks) | L＇ | mm | 2390 |
| Overall Width | W1 | mm | 1160 |
| Turning Radius | R | mm | 2370 |
| Mast Ground Clearance | H5 | mm | 88 |
Ground Clearance at Wheelbase Center (Fully Loaded)
| H6 | mm | 110 |
Right-Angle Stacking Aisle Width (Pallet 1000x1200mm, 1000 Along Forks)
| Ast | mm | 3750 |
Right-Angle Stacking Aisle Width (Pallet 800x1200mm, 1200 Along Forks)
| Ast | mm | 3950 |
*The company reserves the right to change product design and specifications without prior notice.
|
