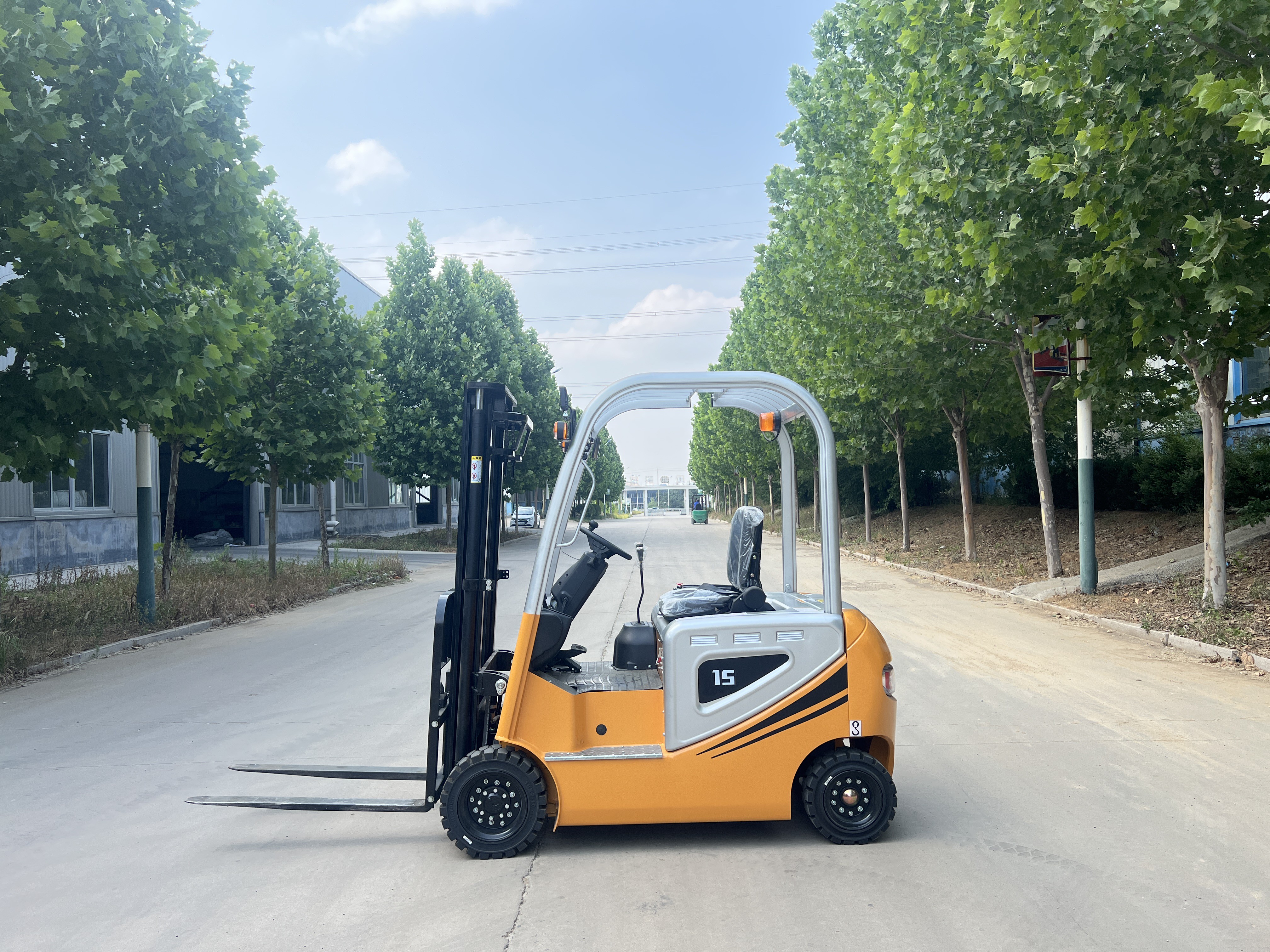

1.5-Ton Electric Forklift

  • 1.5-Ton Electric Forklift

1.5-Ton Electric Forklift

Product Model:CPD15-C

Online Consultation
Related Products

Parameter Specifications

Features
Model

CPD15-C
Driving Type

Ride-on
Rated Load Capacity                              Qkg1500
Load Center Distance                            Cmm500
Power Type

Lead-acid Battery
Wheelbase                                        L1mm1550
Performance
Travel Speed, Loaded/Unloaded
km/h9/10
Lifting Speed, Loaded/Unloaded
mm/s200/200
Lowering Speed, Loaded/Unloaded
mm/s450
Max. Gradeability, Loaded/Unloaded
%15/20
Weight
Service Weight (Including Battery)
kg2100
Axle Load: Unloaded, Front/Rear
kg/
Axle Load: Loaded, Front/Rear
kg/
Battery Voltage/Capacity
V/Ah60V/160Ah
Battery
kg207
Electrical Configuration
Drive Motor Power - 60 Minutes
kW5 Permanent Magnet Synchronous PMSM
Lift Motor Power - 15 Minutes
kW4.5 Permanent Magnet Synchronous PMSM
Drive Motor Control Method

MOSFET/PMSM
Lift Motor Control Method

MOSFET/PMSM
Service Brake/Parking Brake

Hydraulic/Mechanial
Tires
Tire Type

Solid Tire
Number of Wheels (Front/Rear)

2/2
Front Tread                                    W3mm945
Rear Tread                                    W2mm880
Tires, Front

18*7-10
Tires, Rear

16*6-8
Dimensions
Front Overhang                                    L2mm325
Mast Tilt Angle, Front/Rear                  α/β°5/10
Height with Mast Lowered                      H1mm2030
Free Lift Height                    H3mm/
Max. Lift Height                    Hmm3000
Height with Mast Extended                      H2mm4055
Overhead Guard Height                            H4mm2110
Fork Adjustment Range (Outside) Maximum, Minimum
W5mm970/200
Fork Dimensions Thickness x Width x Length                        T*W*L4mm35*100*1070
Overall Length (Excluding Forks)        L＇mm2230
Overall Width                                  W1mm1100
Turning Radius                                    Rmm2280
Mast Ground Clearance                  H5mm88
Ground Clearance at Wheelbase Center (Fully Loaded)
H6mm110
Right-Angle Stacking Aisle Width (Pallet 1000x1200mm, 1000 Along Forks)
Astmm3750
Right-Angle Stacking Aisle Width (Pallet 800x1200mm, 1200 Along Forks)
Astmm3950
*The company reserves the right to change product design and specifications without prior notice.
